Original price was: $2,653.00.$1,942.50Current price is: $1,942.50.
New Original Cisco IE 3100 Switch – Network Essentials, Managed, DIN rail mountable, Switch, 4 x 10/100/1000 + 2 x Gigabit SFP
18 in stock

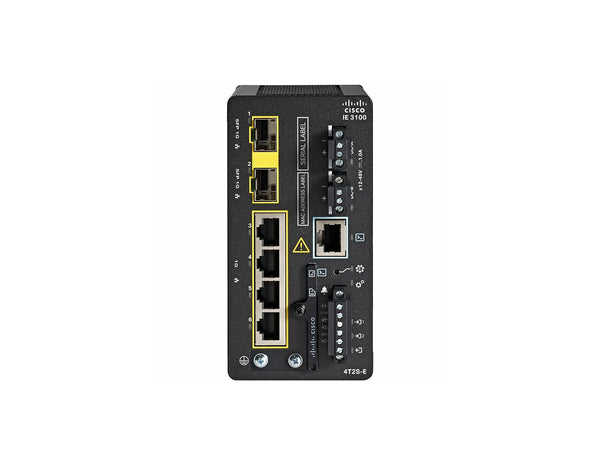

Cisco IE-3100-4T2S-E Industrial Ethernet Switch
The Cisco IE-3100-4T2S-E is a rugged industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh environments. This switch features 4 Gigabit Ethernet ports and 2 SFP slots, making it an ideal solution for connecting critical industrial devices such as sensors, controllers, and IP cameras. The IE-3100-4T2S-E is engineered to operate in extreme conditions, ensuring continuous operation while offering advanced Layer 2 management features for effective network segmentation, security, and traffic control.
Key Features:
- 4 x Gigabit Ethernet Ports: Provides reliable and high-speed data connectivity for various industrial devices, ensuring stable network communication.
- 2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Layer 2 Management: Includes essential features such as VLANs, QoS, and security protocols to enhance network control and security.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management features.
- Ports: 4 x Gigabit Ethernet ports, 2 x SFP slots.
- Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-3100-4T2S-E datasheet.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Specifications
| Specifications | IE-3100-4T2S-E |
| DRAM | 4 GB |
| MAC addresses | 8000 |
| Number of queues / port | 8 egress |
| MTBF (hours) | 931,29 |
| Internet Group Management Protocol (IGMP) multicast groups | 512 |
| VLANs | 256 |
| Operating Temperature | -40° to 75°C (max) |
| Safety | Information Technology Equipment: ● UL/CSA 60950-1 ● UL/CSA 62368-1 ● CB report and certificate to IEC 62368-1 with all country deviations Industrial floor (control equipment): ● UL/CSA 61010-2-201 ● CB report and certificate to IEC/EN 61010-2-201 Hazardous Locations: ● UL121201(Class l, Div 2, groups A-D) ● CSA 22.2 No 213 (Class l, Div 2, groups A-D) ● UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) ● IEC 60079-0, -7, -15 IECEx test report (Class l, Zone 2, Gc/IIC) ● EN 60079-0, -7, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) |
| Emissions, immunity and regulatory compliance | FCC 47 CFR Part 15 Subpart B Class A EN 5032A Class A EN55024 VCCI Class A AS/NZS CISPR 32 Class A, AS/NZS CISPR 24 IEC/EN/EN61000-4-2 (Electro Static Discharge), 15kV air/8kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m with unshielded cables) IEC/EN 61000-4-4 (Fast Transients – 4kV power line, 4kV data line) IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10 Vrms) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)1 IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)1 IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)1 IEC/EN 61000-4-29 (Voltage Dips Immunity)1 IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 (Emission for industrial Environments) EN 61326 |
Accessories
| SD-IE-1GB= | 1GB SD memory card for IE |
| SD-IE-4GB= | 4GB SD memory card for IE |
| PWR-IE50W-AC= | 50W AC to DC or High DC to DC Power Supply |
| PWR-IE50W-AC-L= | 50W AC to DC Power Supply |
| PWR-IE50W-AC-IEC= | 50W AC to DC Power Supply with IEC connector |
| PWR-IE65W-PC-AC= | 65W AC to DC or High DC to DC Power Supply |
| PWR-IE65W-PC-DC= | 65W Low DC to DC Power Supply |
| PWR-IE170W-PC- AC= | 170W AC to DC or High DC to DC Power Supply |
| PWR-IE170W-PC- DC= | 170W AC to DC or High DC to DC Power Supply |
| PWR-IE240W-PCAC-L= | 240W AC to DC Power Supply |
| PWR-IE480W-PCAC-L= | 480W AC to DC Power Supply |
| STK-RACK-DINRAIL= | 19″ DIN Rail mount kit |
| SFP support | |
| GLC-FE-100FX-RGD= | 100BASE-FX FE 2km MMF |
| GLC-FE-100LX-RGD | 100BASE-LX10 FE 10km SMF |
| GLC-FE-100FX= | 100BASE-FX FE 2km MMF |
| GLC-FE-100LX= | 100BASE-LX10 FE 10km SMF |
| GLC-FE-100EX= | 100BASE-EX FE 40km SMF |
| GLC-FE-100ZX= | 100BASE-ZX FE 80km SMF |
| GLC-FE-100BX-D= | 100BASE-BX10 FE 10km SMF |
| GLC-FE-100BX-U= | 100BASE-BX10 FE 10km SMF |
| GLC-SX-MM-RGD= | 1000BASE-SX GE 550m MMF |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH GE 550m/10km MMF/SMF |
| GLC-ZX-SM-RGD= | 1000BASE-ZX GE 70km SMF |
| GLC-BX40-U-I= | 1000BASE-BX40 GE 40km SMF |
| GLC-BX40-D-I= | 1000BASE-BX40 GE 40km SMF |
| GLC-BX40-DA-I= | 1000BASE-BX40 GE 40km SMF |
| GLC-BX80-U-I= | 1000BASE-BX80 GE 80km SMF |
| GLC-BX80-D-I= | 1000BASE-BX80 GE 80km SMF |
| GLC-SX-MMD= | 1000BASE-SX GE 550m MMF |
| GLC-LH-SMD= | 1000BASE-LX/LH GE 550m/10km MMF/SMF |
| GLC-EX-SMD= | 1000BASE-EX GE 40km SMF |
| GLC-ZX-SMD= | 1000BASE-ZX GE 70km SMF |
| GLC-BX-D= | 1000BASE-BX10 GE 10km SMF |
| GLC-BX-U= | 1000BASE-BX10 GE 10km SMF |
| CWDM-SFP-xxxx= (8 freq) | CWDM 1000BASE-X GE SMF |
| DWDM-SFP-xxxx= (40 freq) | DWDM 1000BASE-X GE SMF |
| SFP-GE-S= | 1000BASE-SX GE 550m MMF |
| SFP-GE-L= | 1000BASE-LX/LH GE 550m/10km MMF/SMF |
| SFP-GE-Z= | 1000BASE-ZX GE 70km SMF |
| GLC-SX-MM= | 1000BASE-SX GE 550m MMF |
| GLC-LH-SM= | 1000BASE-LX/LH GE 550m/10km MMF/SMF |
| GLC-ZX-SM= | 1000BASE-ZX GE 70km SMF |
| GLC-T= | 1000BASE-T GE 100m Copper |
| GLC-TE= | 1000BASE-T GE 100m Copper |
| GLC-T-RGD= | 1000BASE-T GE 100m Copper |
