Ethernet Switch Module, Power over Ethernet (PoE), High-Density Connectivity.
Description

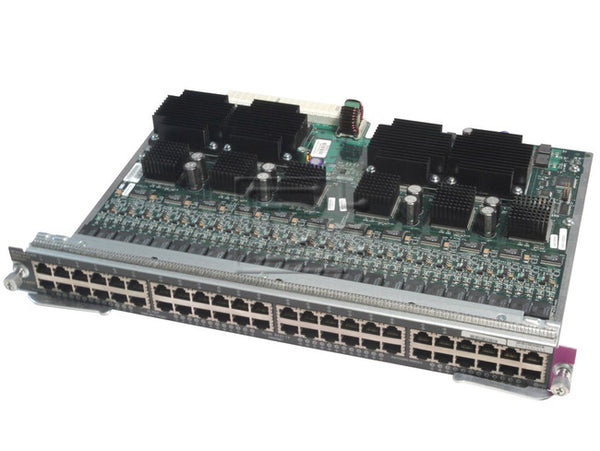

The WS-X4248-RJ45V is an Ethernet switch module designed for use with Cisco Catalyst 4500 Series switches. It provides high-density connectivity with 48 10/100BASE-T RJ-45 ports, each capable of delivering Power over Ethernet (PoE) to connected devices. With a maximum power of 15.4 watts per port, the WS-X4248-RJ45V can power a wide range of PoE-enabled devices such as IP phones, wireless access points, and security cameras. The module features a high-performance architecture with a forwarding rate of up to 30 million packets per second, making it an excellent choice for businesses with high-bandwidth requirements. The WS-X4248-RJ45V is easy to install and manage, with hot-swappable capability for easy module replacement without disrupting the network. Overall, the WS-X4248-RJ45V is an ideal solution for businesses seeking high-density connectivity with PoE support for their networking needs.
Properties
| Product Name | Cisco WS-X4248-RJ45V Line Card |
| Product Description | 48-port 10/100BASE-T Ethernet switching module with Power over Ethernet (PoE) support for Cisco Catalyst 4500 Series switches. |
| Compatibility | Cisco Catalyst 4500 Series switches |
| Ports | 48 x 10/100BASE-T RJ-45 |
| PoE Support | IEEE 802.3af compliant, up to 15.4W per port |
| Forwarding Rate | 30 million packets per second (mpps) |
| Hot-Swappable | Yes |
| Maximum Power per Port | 15.4W |
| Total PoE Budget | Dependent on chassis power supply |
Specifications
| Interface Type | 10/100BASE-T Ethernet |
| Connector Type | RJ-45 |
| Standards Compliance | IEEE 802.3af, IEEE 802.3u |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature Range | -40°C to 75°C (-40°F to 167°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Dimensions (W x D x H) | 14.4 x 1.2 x 16.0 inches (36.6 x 3.0 x 40.6 cm) |
| Weight | 4.5 lbs (2.0 kg) |
