Description

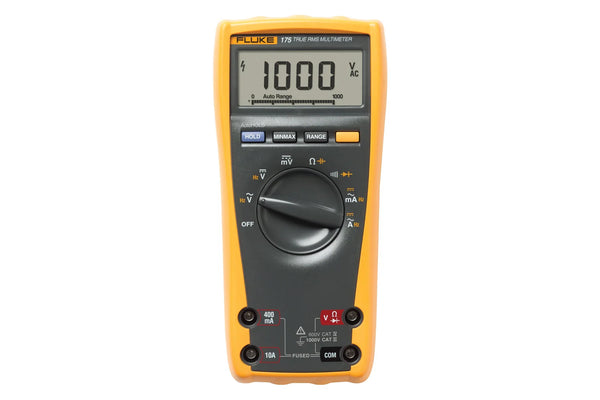

FLUKE-175 True-RMS Digital Multimeter

The Fluke 175 is a dependable multimeter designed for general-purpose electrical and electronic diagnostics. It offers accurate True-RMS measurements, a 6000-count digital display, analog bar graph, and both auto/manual ranging modes. With CAT III 1000V and CAT IV 600V safety ratings, it’s suitable for demanding environments. The unit comes with a limited lifetime warranty, making it a reliable companion for long-term use.

Key Features:

• True-RMS for precise AC voltage and current measurement
• 6000-count digital display with analog bar graph
• Basic DC accuracy of 0.09%
• Auto and manual ranging
• Voltage measurement up to 1000 V AC/DC
• Current measurement up to 10 A AC/DC
• Resistance measurement up to 50 MΩ
• Frequency measurement up to 100 kHz
• Capacitance measurement up to 10,000 µF
• Continuity and diode testing included
• Backlit screen for low-light conditions
• Min/Max/Average recording with display hold and AutoHOLD

Technical Specifications:

• Display Count: 6000
• Operating Temperature: -10 °C to +50 °C
• Storage Temperature: -30 °C to +60 °C
• Humidity: 0%–90% (0–35 °C), 0%–70% (35–50 °C)
• Dimensions: 185 x 90 x 43 mm
• Weight: 420 g
• Battery Life: Approx. 200 hours (alkaline, no backlight)
• Overvoltage Protection: CAT III 1000 V, CAT IV 600 V
• Certifications: UL, CSA, TÜV, CE
