Description

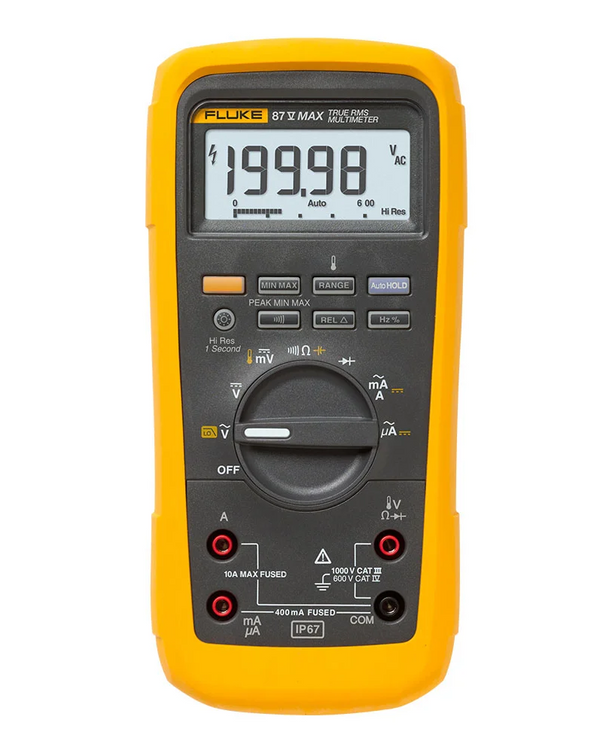

FLUKE-87VMAX True-RMS Digital Multimeter

Designed for use in extreme conditions, the FLUKE-87VMAX True-RMS Digital Multimeter combines trusted precision with rugged durability. With its IP67 rating for water and dust resistance, and a robust housing that survives 4-meter drops, it’s ideal for industrial and field environments. It provides accurate True-RMS readings for AC/DC voltage and current, plus frequency, temperature, resistance, continuity, and diode checks. A built-in thermometer, high-resolution 19,999 count display, and large, backlit keypad improve usability in low-light and electrically noisy conditions.

Key Features:

• True-RMS AC/DC voltage and current measurements
• Measures up to 1000 V and 10 A (20 A for 30 seconds)
• Frequency measurements up to 200 kHz
• Built-in temperature function with included thermocouple
• Min/Max/Average recording and 250 μs Peak capture
• Variable frequency drive (VFD) filtering for accurate motor readings
• Large dual-level backlit display and keypad lighting
• IP67 rated waterproof and dustproof housing
• Withstands 4-meter (13 ft) drops
• Battery life up to 800 hours on three AA batteries

Technical Specifications:

• DC Voltage Accuracy: ±(0.05% + 1), Range: 0.1 mV to 1000 V
• AC Voltage Accuracy: ±(0.7% + 4), Range: 0.1 mV to 1000 V
• DC Current: ±(0.2% + 2), up to 10 A
• AC Current: ±(1.0% + 2), up to 10 A
• Resistance: 0.1 Ω to 50 MΩ
• Capacitance: 0.01 nF to 9999 µF
• Frequency: 0.5 Hz to 199.99 kHz
• Temperature: -200 °C to +1090 °C
• Display: 19,999 count high-resolution mode
• Safety Ratings: CAT IV 600 V, CAT III 1000 V
• IP Rating: IP67 (waterproof and dustproof)
• Drop Protection: Up to 4 meters
• Power: 3x AA batteries (800-hour life)
• Size: 6.0 cm x 10.1 cm x 21.5 cm
• Weight: 698.5 g (with holster)
• Warranty: Limited Lifetime
