Description

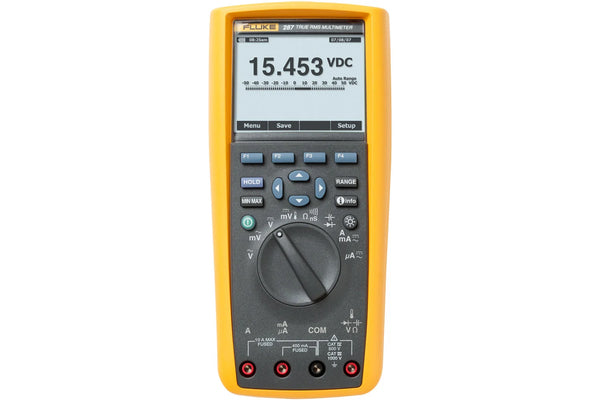

FLUKE-287 True-RMS Electronics Logging Multimeter with TrendCapture

The FLUKE-287 is a powerful True-RMS multimeter designed for professional electronic technicians and engineers. With built-in TrendCapture technology, this meter allows users to log and graphically review data directly on its large 1/4 VGA display, eliminating the need for a PC download. The multimeter provides up to 0.025% basic DC accuracy and a 100 kHz AC bandwidth, making it ideal for capturing complex signals and high-speed transients in demanding environments.

It features an expanded memory for unattended logging, a real-time clock for timestamping, and advanced triggering with customizable thresholds. The FLUKE-287 supports multiple measurement sessions, multilingual interface, onboard help menus, and can be paired with the Fluke Connect® app (via optional ir3000 FC adapter) for wireless sharing and team collaboration.

Key Features:

• TrendCapture: View graphical logged data sessions directly on-screen without a PC.
• High Accuracy: 0.025% basic DC accuracy, 100 kHz AC bandwidth, and True-RMS AC measurements.
• High-Resolution Display: 50,000 count 1/4 VGA LCD with white backlight; view multiple readings simultaneously.
• Advanced Logging: Store up to 15,000 recorded events; includes auto-threshold and recording triggers.
• Real-Time Clock: Automatically timestamps saved readings for easier analysis and reporting.
• Flexible Measurements: Measures up to 1000 V, 10 A (20 A for 30 sec), 100 mF capacitance, temperature, frequency, and more.
• Graphing Multimeter: Zoom in on logged data up to 14x for deep trend analysis.
• Optional Wireless Capability: Compatible with Fluke Connect® mobile app and ir3000 FC adapter (sold separately).
• Long Battery Life: Over 100 hours of operation; 200+ hours in logging mode with 6× AA batteries.
• Included Accessories: Premium test leads and alligator clips.

Technical Specifications:

• DC Voltage Range: Up to 1000 V (±0.025% accuracy)
• AC Voltage Range: Up to 1000 V (True-RMS, ±0.4% accuracy)
• DC/AC Current Range: Up to 10 A (20 A for 30 sec)
• Resistance: Up to 500 MΩ
• Capacitance: Up to 100 mF
• Temperature: -200°C to +1350°C (with probe)
• Frequency: Up to 999.99 kHz (±0.005%)
• Display: 50,000 count, 1/4 VGA LCD with backlight
• Logging Memory: Up to 15,000 events
• Power: 6 × AA batteries
• Battery Life: 100 hours typical; 200+ hours in logging mode
• Dimensions: 22.2 cm × 10.2 cm × 6 cm (8.75 in × 4.03 in × 2.38 in)
• Weight: 870.9 g (28 oz)
• Safety Rating: CAT IV 600 V / CAT III 1000 V
