Call for Price
Hardware plus 24×7 FortiCare and FortiGuard Unified Threat Protection (UTP), 5Yr Bundle
Description

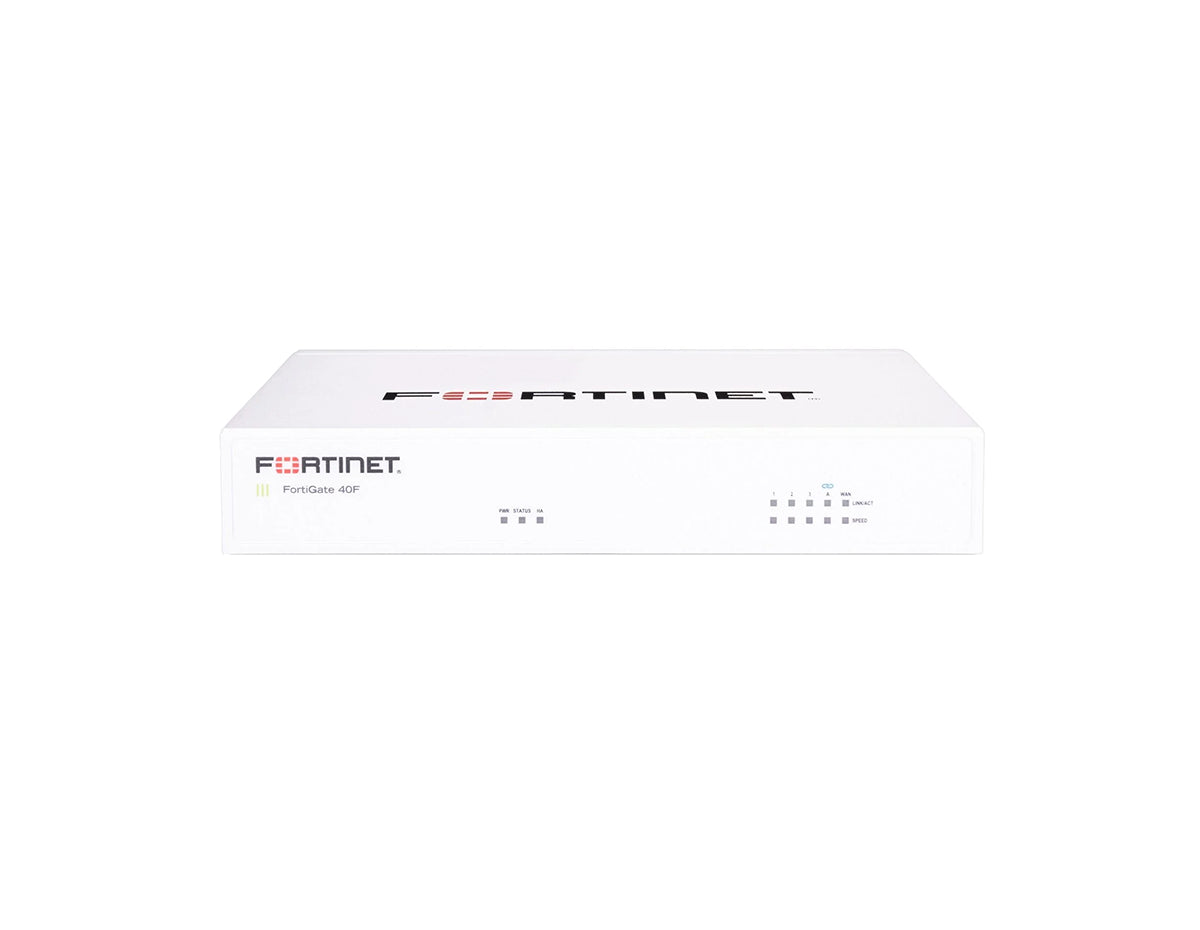

FortiGate FG-40F-BDL-950-60 Firewall
The FortiGate FG-40F-BDL-950-60 provides powerful SD-WAN and security capabilities in a compact, fanless design, ideal for small businesses and branch offices. It ensures optimal application performance and network security with Fortinet’s dedicated ASIC SOC4. Equipped with 1x GE RJ45 WAN, 3x GE RJ45 LAN, and 1x FortiLink port, the FG-40F is easy to integrate into your network. The device also comes with a 5-year subscription to FortiCare and FortiGuard UTM services for reliable protection.
Key Features:
- 5 Gbps firewall throughput for robust security

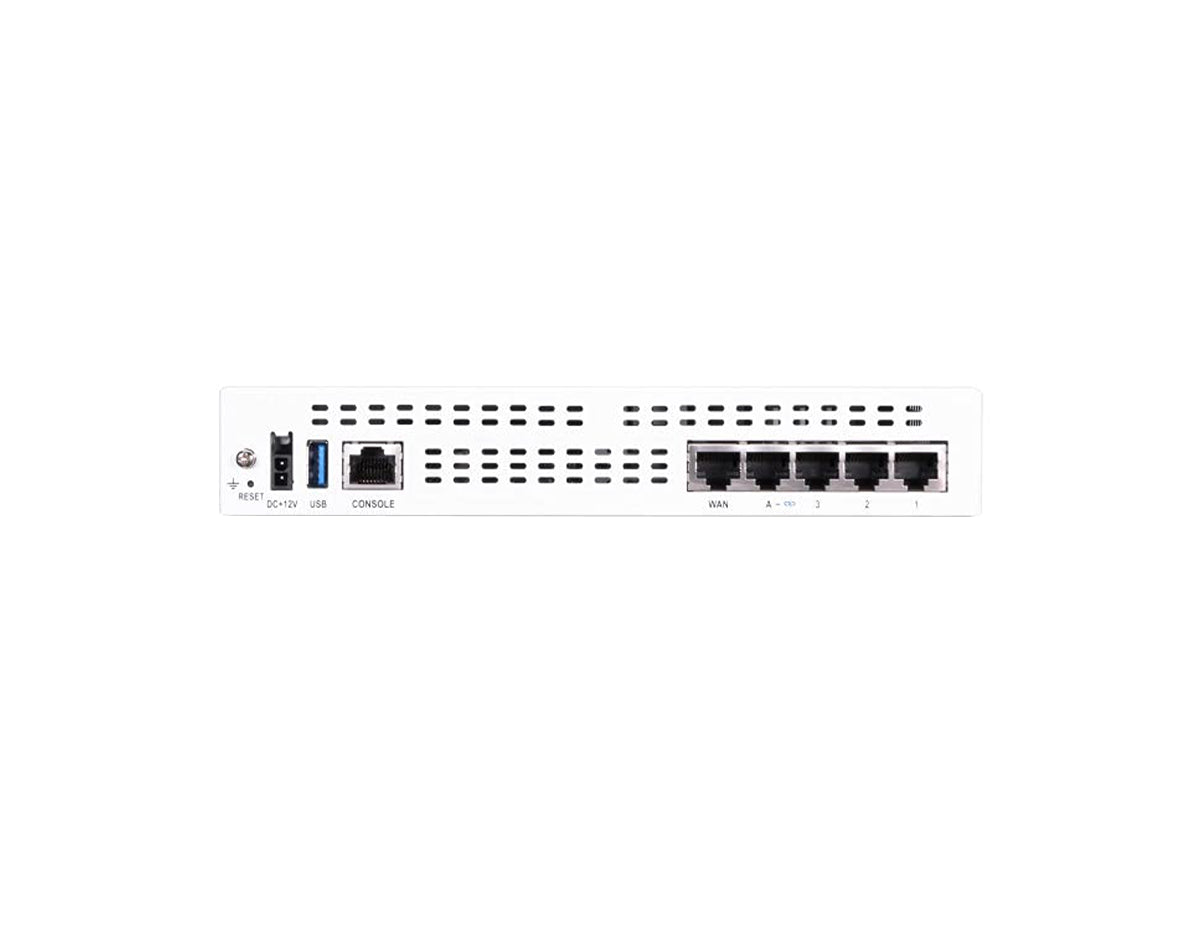

- 1x GE RJ45 WAN, 3x GE RJ45 LAN, and 1x FortiLink port for flexible connectivity
- Secure SD-WAN powered by ASIC SOC4 for optimized performance
- Includes 5-year FortiCare and FortiGuard UTM subscription
Please see the related tabs for the FG-40F-BDL-950-60 datasheet and compatible accessories.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | FG-40F-BDL-950-60 |
| Description |
5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports)
|
| Product Family |
Early Level Fortigate Firewalls
|
| Product Type | Firewall |
| GE RJ45 Internal Ports | 4 |
| GE RJ45 WAN Port | 1 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle |
24×7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 5 Year |
Specifications
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 5 / 5 / 5 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.97 μs |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps |
| Concurrent Sessions (TCP) | 700.000 |
| New Sessions/Second (TCP) | 35.000 |
| Firewall Policies | 5.000 |
| IPsec VPN Throughput (512 byte packets) | 4.4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 490 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1 Gbps |
| SSL Inspection Throughput | 310 Mbps |
| Application Control Throughput | 990 Mbps |
| NGFW Throughput | 800 Mbps |
| Threat Protection Throughput | 600 Mbps |
| CAPWAP Throughput | 3.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of FortiSwitches Supported | 8 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.5 x 8.5 x 6.3 |
| Form Factor | Desktop |
| Power Required |
100240V AC, 6050 Hz (External DC Power Adapter)
|
| Maximum Current |
100V AC / 0.2A, 240V AC / 0.1A
|
| Power Consumption (Average / Maximum) | 7.74 W / 9.46 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications |
Certifications USGv6/IPv6
|
Accessories
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP-RackTray-01. For list of compatible FortiGate products, visit our Documentation website, docs.fortinet.com
|
|
| SP-FG-40F-PA-10(-XX |
Pack of 10 AC power adaptors for FG/FWF-40F, come with interchangeable power plugs. (XX=various countries code)
|
|
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
|
