Fortinet FG-80F Firewall The FortiGate 80F series offers a compact, fanless desktop solution designed for enterprise branch offices and mid-sized businesses, delivering a secure and scalable SD-WAN solution with…
Description

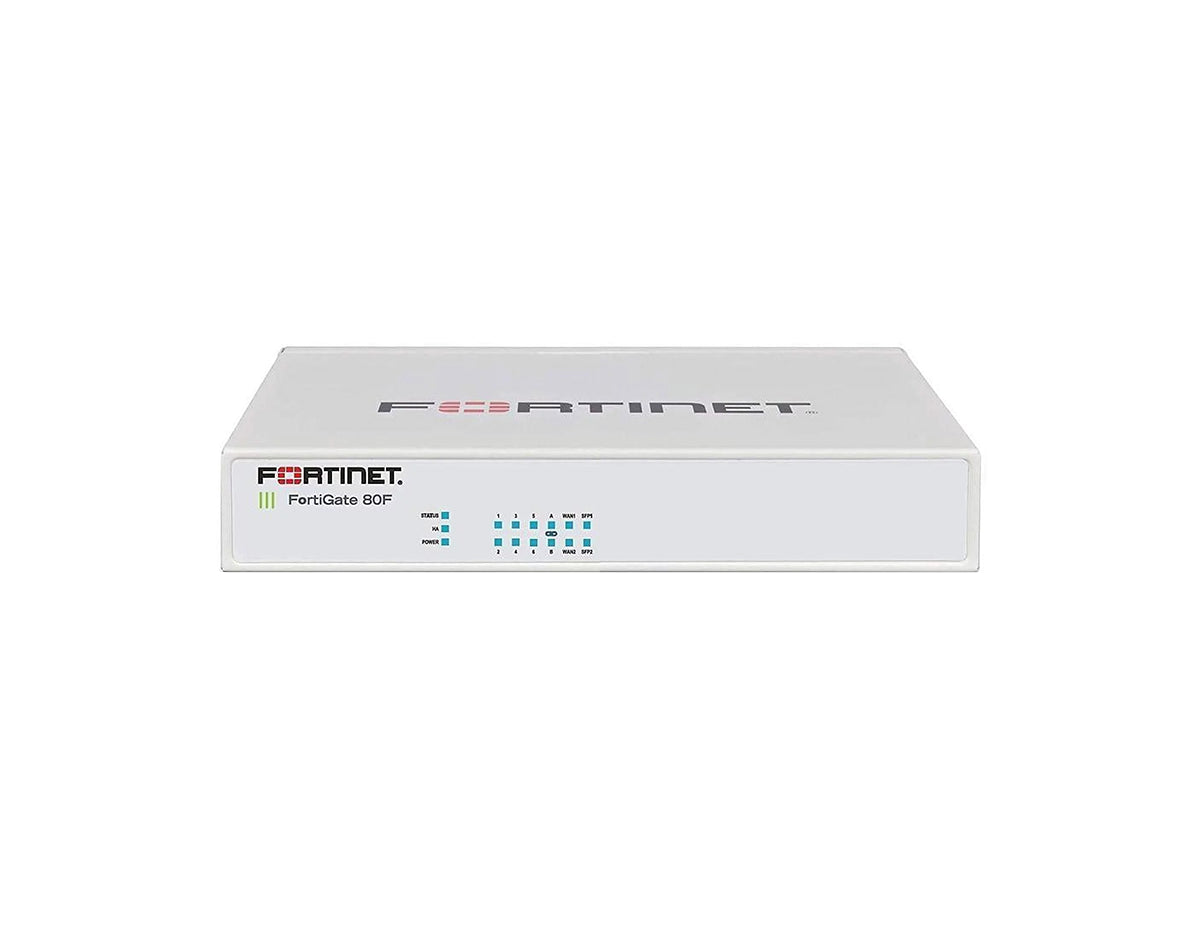

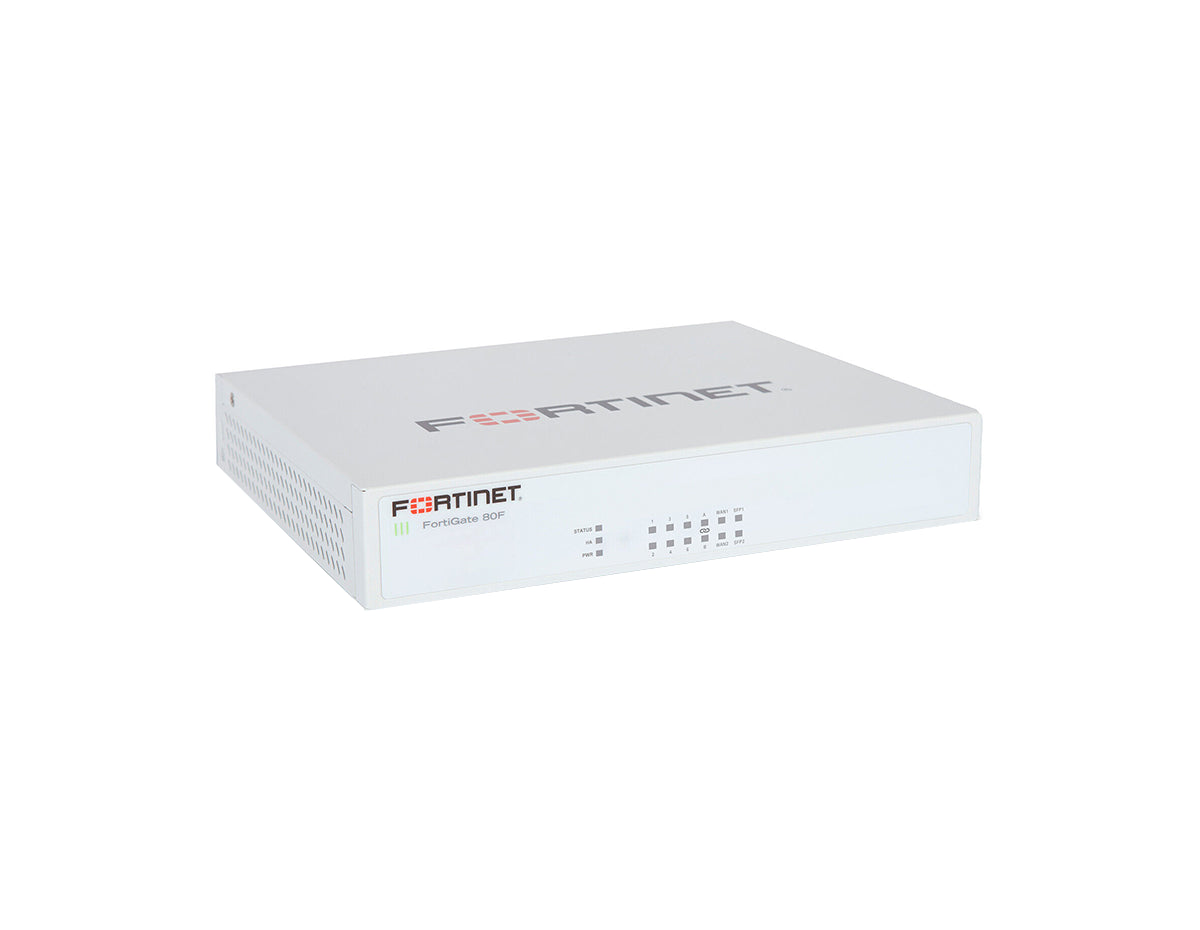

Fortinet FG-80F Firewall
The FortiGate 80F series offers a compact, fanless desktop solution designed for enterprise branch offices and mid-sized businesses, delivering a secure and scalable SD-WAN solution with a focus on application-centric functionality. It provides protection against cyber threats through system-on-a-chip acceleration and industry-leading secure SD-WAN capabilities, offering a straightforward, cost-effective, and easily deployable solution. Fortinet’s Security-Driven Networking approach emphasizes the seamless integration of the network with the latest security technologies.
Quick Specs:
- Firewall Throughput: 10.5 Mpps
- ASIC SOC4
- Fanless
- NGFW
Please see the related tabs for the FG-80F datasheet and compatible accessories.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | FG-80F |
| Description |

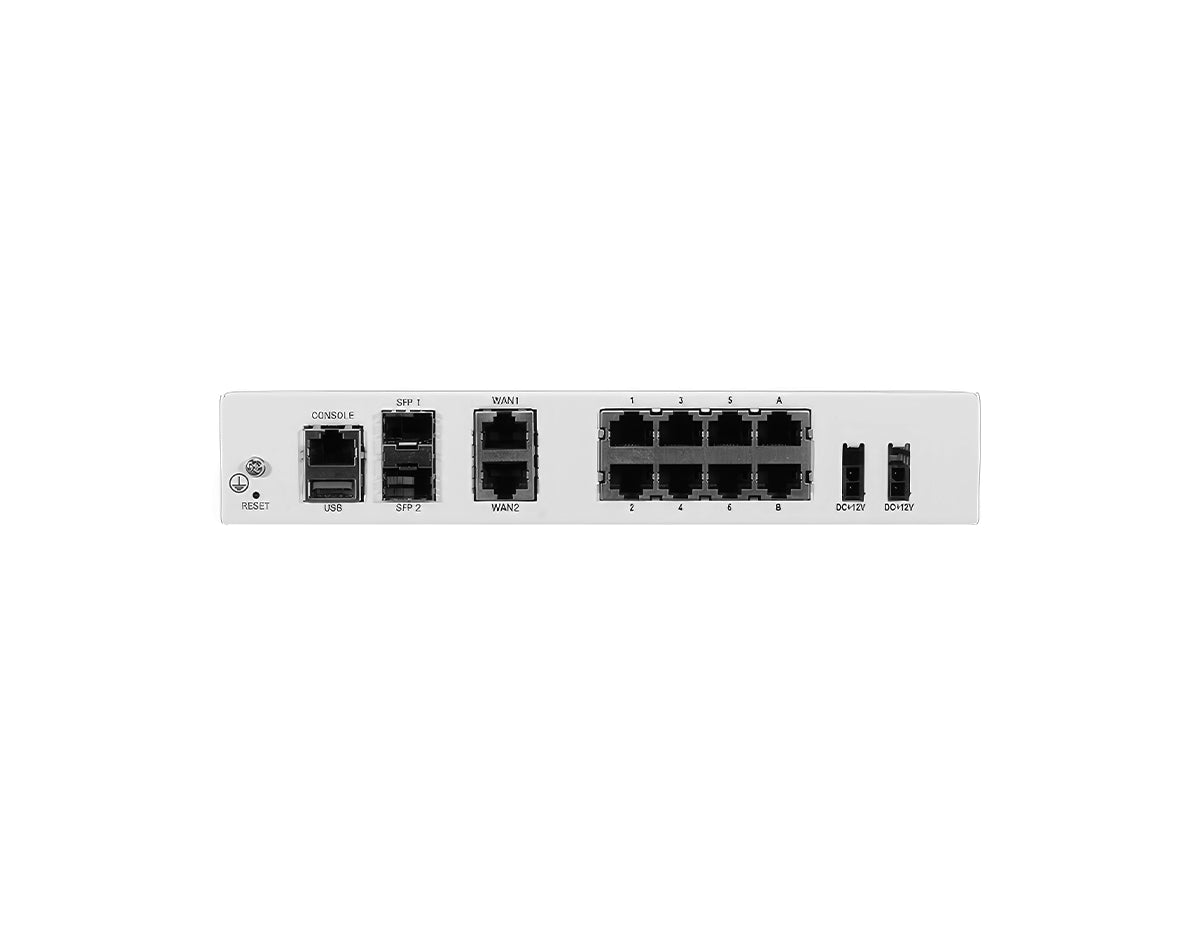

8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports
|
| Product Family | Early Level Firewalls |
| Product Type | Firewall |
| GE RJ45 Internal Ports | 6 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 WAN Port | – |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
Specifications
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 10 / 10 / 7 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45.000 |
| Firewall Policies | 5.000 |
| IPsec VPN Throughput (512 byte packets) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1.4 Gbps |
| SSL Inspection Throughput | 715 Mbps |
| Application Control Throughput | 1.8 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| CAPWAP Throughput | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | – |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.65 x 8.5 x 7 |
| Form Factor | Desktop |
| Power Required |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100240V AC, 50/60 Hz
|
| Maximum Current |
115VAC/0.4A, 230VAC/0.2A
|
| Power Consumption (Average / Maximum) | 12.69 W / 15.51 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications | USGv6/IPv6 |
Accessories
| SP-FG60E-PDC-5 |
Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, 80E/81E and 80F/81F
|
| SP-FWF80F-PDC-5 |
Pack of 5 AC power adaptors for FWF-80/81F-2R, power cable SP-FG60CPCOR-XX sold separately
|
| SP-FG80E-POE-PDC |
AC power adaptor for FG-60E-POE, FG-80E-POE, FG-81E-POE, FG-80/81F-POE, FWF-81F-2R-POE power cable SP-FG60CPCOR-XX sold separately
|
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models.
|
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
|
