Call for Price

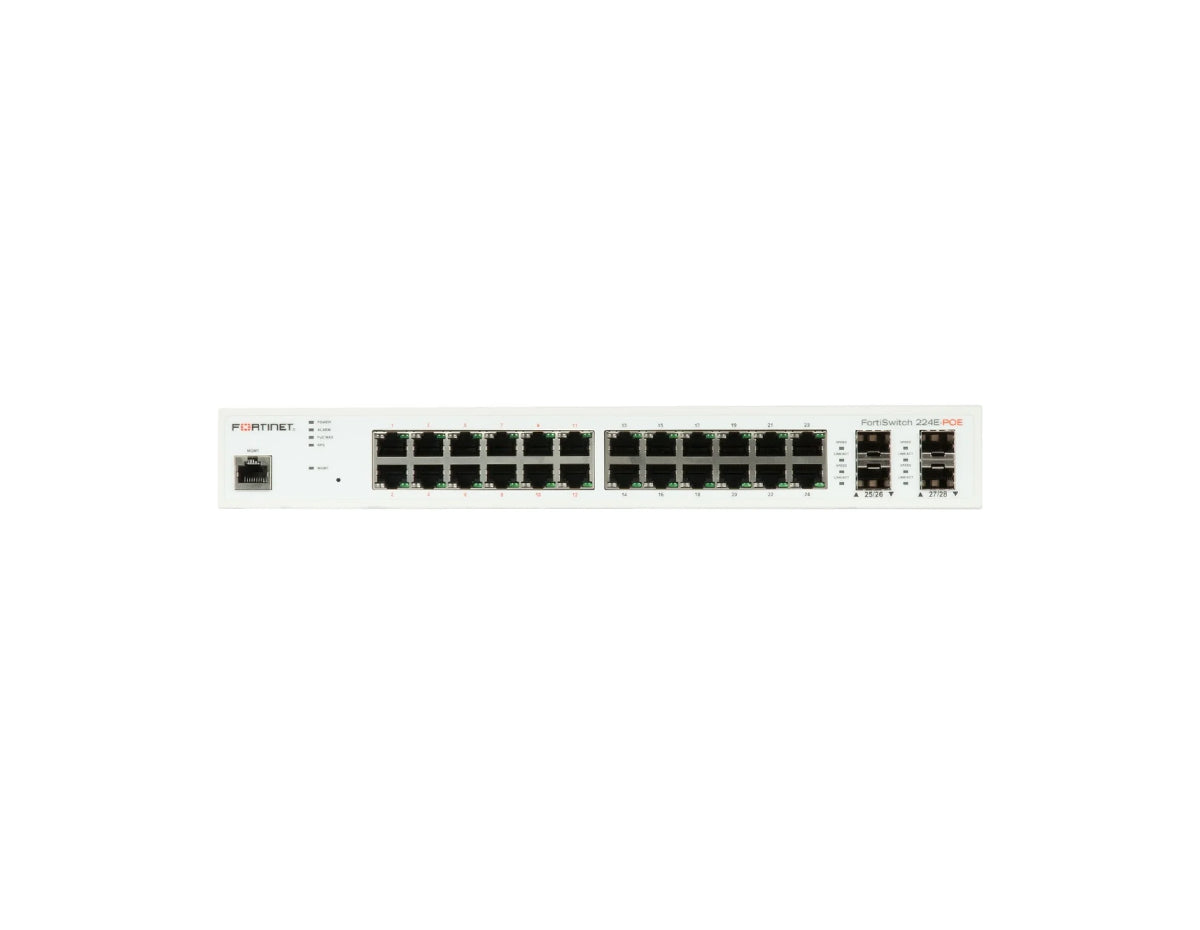

Layer 2/3 FortiGate switch controller compatible PoE+ switch with 24 x GE RJ45 ports, 4 x GE SFP, with automatic Max 180W POE output limit
Description
The FortiSwitch family delivers outstanding security, performance, and manageability. FortiSwitch is the right choice for threat conscious businesses of all sizes. Single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Properties
| Properties | FS-224E-POE |
| Description | Layer 2/3 FortiGate switch controller compatible PoE+ switch with 24 GE RJ45 + 4 SFP ports, 12 port PoE with maximum 180 W limit. |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 24x GE RJ45 ports and 4x GE SFP ports |
| Dedicated Management 10/100/1000 Ports |
1 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 12 (802.3af/802.3at) |
| PoE Power Budget (single/dual PSU) |
180 W |
| Mean Time Between Failures | > 10 years |
Specifications
| Switching Capacity (Duplex) | 56 Gbps |
| Packets Per Second (Duplex) | 83 Mpps |
| MAC Address Storage | 16 K |
| Network Latency | < 1µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | Up to number of ports |
| Packet Buffers | 1.5 MB |
| DRAM | 512 MB DDR3 |
| FLASH | 128 MB |
| ACL | 512 |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | 64/32 |
| Multicast Route Entries | – |
| Host Entries | 512 |
| Dimensions in. | 1.73 x 9 x 12.99 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | AC built in |
| Redundant Power | Optional FRPS-740 |
| Power Consumption (Average / Maximum) | 220.18 W / 223.57 W |
| Heat Dissipation | 74.29554 BTU/h |
| Operating Temperature | 32°122°F (0°50°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Accessories
| FRPS-740 | Redundant AC power supply for up to 2 units: FS-224D-FPOE, FS-224E-POE, FS-248E-POE, FS-248E-FPOE. |
