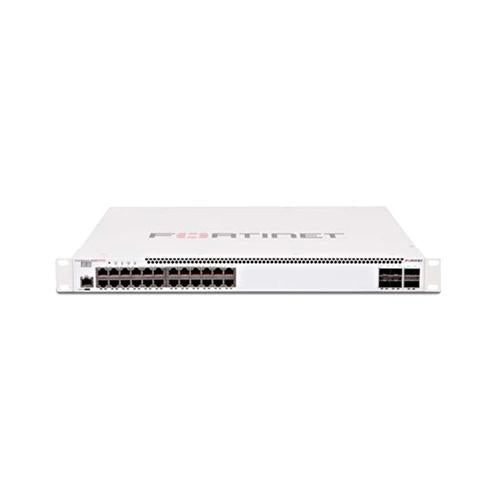

Layer 2/3 FortiGate switch controller compatible switch with 24 x GE RJ45 ports, 4 x 10 GE SFP+ and 2 x 40 GE QSFP+
Description
The FortiSwitch family delivers outstanding security, performance, and manageability. FortiSwitch is the right choice for threat conscious businesses of all sizes. Single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Properties
| Properties | FS-524D |
| Description | Layer 2/3 FortiGate switch controller compatible switch with 24 GE RJ45, 4x 10 GE SFP+ and 2x 40 GE QSFP+ ports. |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 24 GE/RJ45 ports, 4x 10 GE SFP+ ports and 2x 40 GE QSFP Note: SFP+ ports are compatible with 1G SFP |
| Dedicated Management 10/100/1000 Ports |
1 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | N/A |
| PoE Power Budget (single/dual PSU) |
N/A |
| Mean Time Between Failures | > 10 years |
Specifications
| Switching Capacity (Duplex) | 288 Gbps |
| Packets Per Second (Duplex) | 428 Mpps |
| MAC Address Storage | 36 K |
| Network Latency | < 2µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 24 |
| Total Link Aggregation Groups | Up to number of ports |
| Packet Buffers | 4 MB |
| DRAM | 2 GB DDR3 |
| FLASH | 128 MB |
| ACL | 1k |
| Spanning Tree Instances | 32 |
| Route Entries (IPv4/IPv6) | 16k/8k |
| Multicast Route Entries | 8k |
| Host Entries | 16k |
| Dimensions in. | 1.75 x 13.8 x 17.3 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | AC built in |
| Redundant Power | Optional FS-PSU-150 |
| Power Consumption (Average / Maximum) | 73 W / 75 W |
| Heat Dissipation | 247 BTU/h |
| Operating Temperature | 32°113°F (0°45°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Accessories
| FS-PSU-150 | AC power supply for FS-548D and FS-524D. |
