Description

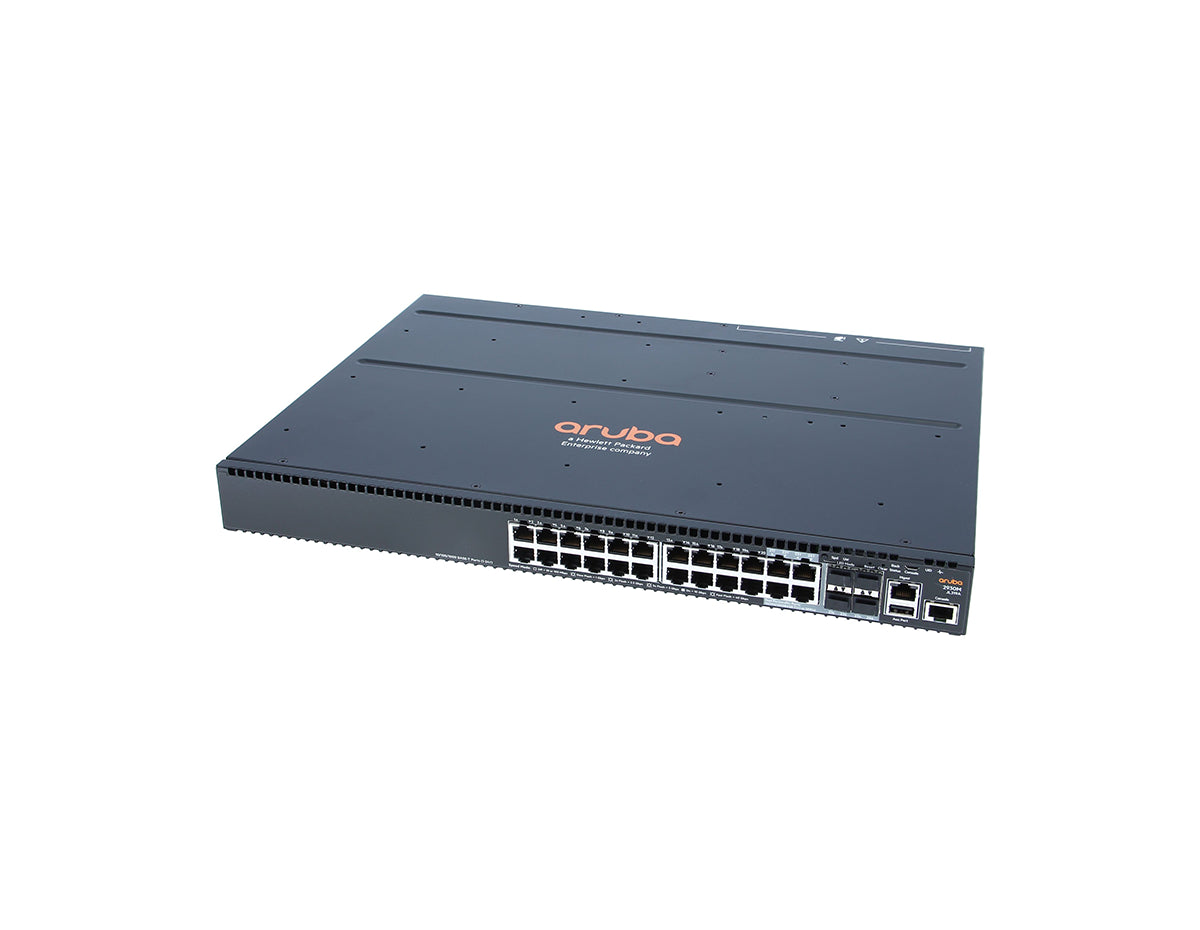

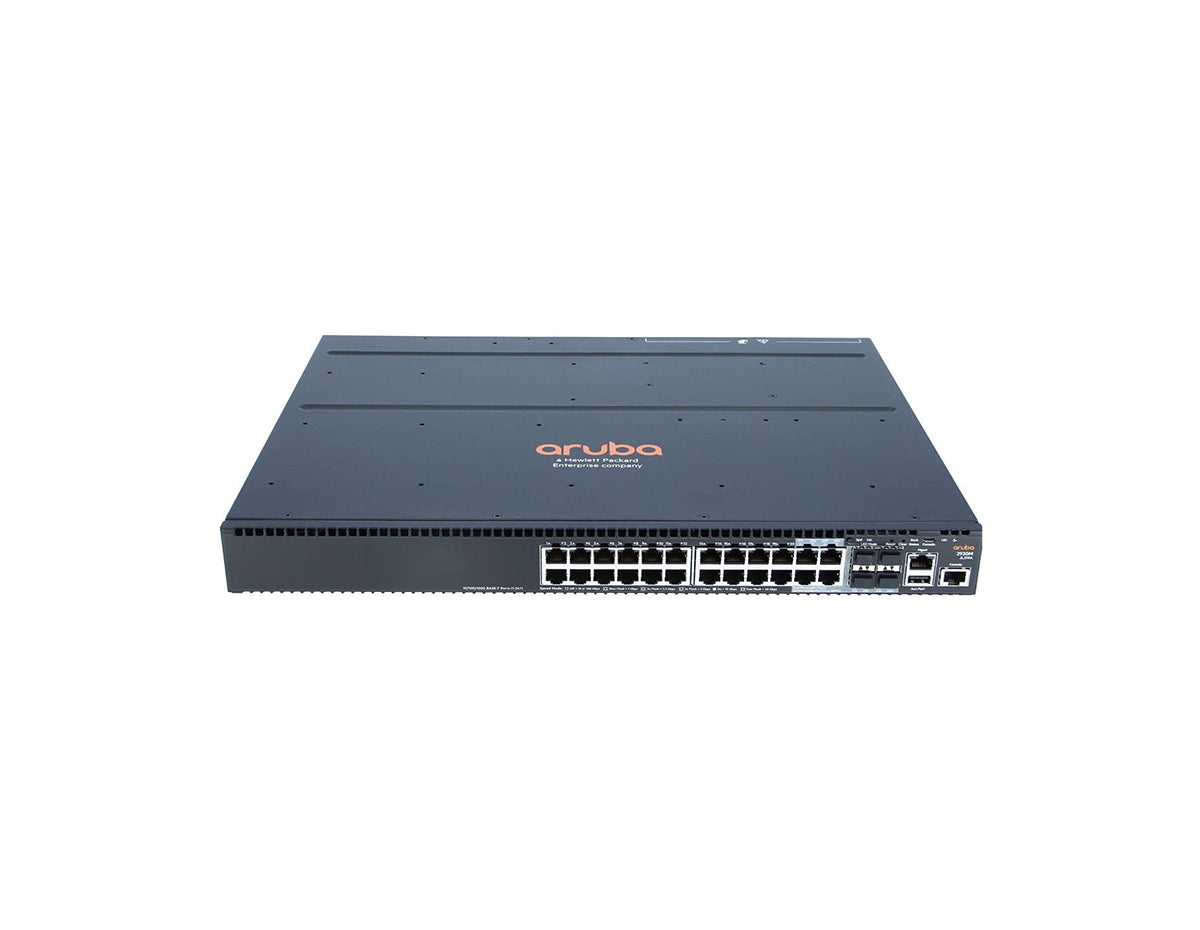

HPE Aruba 2930M 24G Switch (JL319A)
The HPE Aruba 2930M 24G Switch is designed for high-performance networking, providing 24 Gigabit Ethernet ports that support fast and reliable connectivity for a range of devices. This switch is ideal for small to medium-sized businesses looking for a scalable solution with advanced Layer 3 features, such as static routing, RIP, and OSPF, to manage complex networks. It includes flexible modular stacking and supports 10GbE and 40GbE uplinks, ensuring adaptability for future growth.
Key Features:
- 24 x Gigabit Ethernet Ports: Supports high-speed data transfer for a wide range of network devices.
- 1 Expansion Slot: Provides modular flexibility for adding uplinks or additional ports as needed.
- Layer 3 Switching: Supports advanced routing features like static routing, RIP, and OSPF for optimized network management.
- Stacking Support: High-performance stacking with up to 10 switches for enhanced scalability.
- Energy-Efficient Design: Compliant with IEEE 802.3az for power savings during periods of low activity.
Technical Overview:
- Recommended for: Small to medium-sized businesses and branch offices.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports.
- Uplink Modules: Modular uplink slots for 10GbE and 40GbE connectivity.
- Switching Capacity: 128 Gbps (up to 228 Gbps with stacking).
- Forwarding Rate: 95.2 Mpps.
- Management: Managed via Aruba Central, AirWave, CLI, Web GUI, SNMP.
- Energy Efficiency: Complies with IEEE 802.3az standards.
You can check the related tab for the HPE Aruba 2930M 24G Switch (JL319A) datasheet.
Properties
| Properties | HPE Aruba 2930M 24G Switch (JL319A) |
| Description | Switch, L3, managed, 20 x 10/100/1000 + 4 x combo Gigabit SFP, rack-mountable, Power Supplies are not included |
| Product Family | HPE Aruba 2930M Series |
| Product Type | Ethernet Switch |
Specifications
| Specifications | HPE Aruba 2930M 24G Switch (JL319A) |
| I/O ports and slots | 20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T); Duplex: 10BASE-T/100BASE-TX:half or full;1000BASE-T:full only
4 Combo 10/100/1000BASE-T or |
| Additional ports and slots | 1 Dual Personality (RJ-45 or USB Micro-B) serial console port 1 USB A port for uploading/ downloading files 1 100BASE-T Out of Band Management Port 1 Uplink Slot 1 Stacking Module Slot 2 Power Supply Slots (power supplies not included) |
| Physical characteristics | |
| Dimensions | 1.73″ (Height) x 17.42″ (Width) x 12.77″ (Depth) (4.39cm x 44.25cm x 32.43cm) |
| Weight | 9.81 lbs 4.45 kg |
| Memory and Processor | Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet Buffer Size: 12.38MB and 4.5MB Ingress/7.875MB Egress 4GB eMMC |
| Performance | IPv6 Ready Certified |
| 10 Mbps Latency | < 98.5µs (FIFO 64 byte packets) |
| 100 Mbps Latency | < 11.8µs (FIFO 64-byte Packets) |
| 1000 Mbps Latency | < 3.1µs (FIFO 64-byte packets) |
| 10 Gbps Latency | < 3.4µs (FIFO 64-byte packets) |
| Throughput | 95.2 Mpps |
| Stacking Performance | 100 Gbps |
| Switching Capacity | 128 Gbps |
| Switching Capacity (Including Stacking) | 228 Gbps |
| Routing Table Size | 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP |
| Mac Address Table Size | 32768 entries |
| Environment | |
| Operating Temperature | 32°F to 131°F (0°C to 55°C) up to 5000ft, 32°F to 122°F (0°C to 50°C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft |
| Operating Relative Humidity | 15% to 95% (Non-condensing) 10,000 ft |
| Non-Operating/ Storage Temperature | -40°C to +70°C up to 15000 ft |
| Non-Operating/ Storage Relative Humidity | 90% at 65C (non-condensing); 15,000 ft |
| Acoustic | Sound Power LWaD=4.0 Bel, Sound Pressure LpAm, Bystander = 22.8 dB |
| Primary Airflow Direction | Port to Power |
| Electrical Characteristics | |
| Frequency | 50/60Hz |
| Maximum Heat Dissipation |
168 BTU/hr 177 kJ/hr |
| Voltage | JL085A PSU: 100-127/200-240 |
| Current | JL085A PSU: 0.5A/0.3A |
| Maximum Power Rating | 49W |
| Idle Power | 34W |
| PoE Power (Max Possible) | N/A |
| Hibernate Power | 11W |
| Notes | Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
Accessories
| Accessories | |
| Transceivers | Aruba 100M SFP LC FX 2km MMF XCVR (J9054D) • Aruba 1G SFP RJ45 T 100m Cat5e XCVR (J8177D) • Aruba 1G SFP LC SX 500m MMF XCVR (J4858D) • Aruba 1G SFP LC LX 10km SMF XCVR (J4859D) • Aruba 1G SFP LC LH 70km SMF XCVR (J4860D) • Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D) • Aruba 10G SFP+ LC LR 10km SMF XCVR (J9151E) • Aruba 10G SFP+ LC LRM 220m MMF XCVR (J9152D) • Aruba 10G SFP+ LC ER 40km SMF XCVR (J9153D) • Aruba 10G SFP+ to SFP+ 1m DAC Cable (J9281D) • Aruba 10G SFP+ to SFP+ 3m DAC Cable (J9283D) • Aruba 10G SFP+ to SFP+ 7m DAC Cable (J9285D) • Aruba 40G QSFP+ LC BiDi 150m MMF XCVR (JL308A) • HPE X142 40G QSFP+ MPO SR4 Transceiver (JH231A) • HPE X142 40G QSFP+ LC LR4 SM Transceiver (JH232A) • HPE X142 40G QSFP+ MPO eSR4 300M XCVR (JH233A) • HPE X242 40G QSFP+ to QSFP+ 1m DAC Cable (JH234A) • HPE X242 40G QSFP+ to QSFP+ 3m DAC Cable (JH235A) • HPE X242 40G QSFP+ to QSFP+ 5m DAC Cable (JH236A) |
| Stacking cables | • Aruba 2920/2930M 0.5M Stacking Cable (J9734A) • Aruba 2920/2930M 1m Stacking Cable (J9735A) • Aruba 2920/2930M 3m Stacking Cable (J9736A) |
| Power supplies | • Aruba X371 12VDC 250W 100-240VAC Power Supply (JL085A) • Aruba X372 54VDC 680W 100-240VAC Power Supply (JL086A) • Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A) |
| Mounting kit | • HPE X410 1U Universal 4-post Rack Mounting Kit (J9583A) • Aruba X414 1U Universal 4-post Rack Mounting Kit (J9583B) |
| Cables | • Aruba X2C2 RJ45 to DB9 Console Cable (JL448A) |
