Call for Price
Storage Capacity
Description

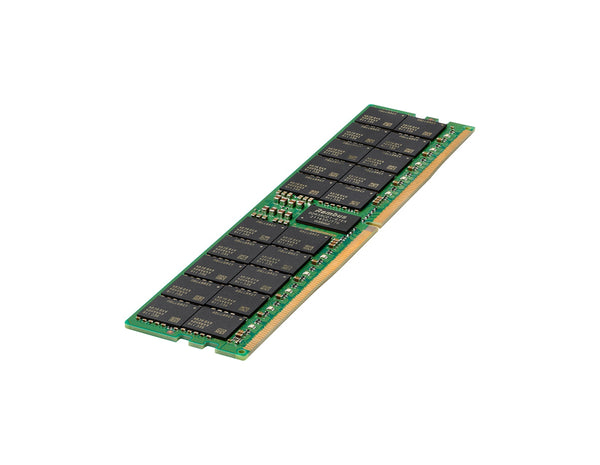

HPE P64706-B21 32GB (1x32GB) DDR5 5600MT/s PC5-44800 2Rx8 ECC Registered 1.1V CL46 SDRAM 288-Pin RDIMM Smart Memory Kit
The HPE P64706-B21 is a high-performance DDR5 SDRAM memory module designed to deliver superior speed and reliability for advanced computing environments. This 32GB module features ECC for data integrity and registered signal processing for stable performance, making it an ideal choice for servers and workstations.
General Information:
- Manufacturer: HPE
- Manufacturer Part Number: P64706-B21
- Product Name: 32GB DDR5 SDRAM Memory Module
Technical Information:
- Storage Capacity: 32GB
- Memory Technology: DDR5 SDRAM
- Number Of Modules: 1 x 32GB
- Bus Speed: 5600MT/s DDR5-5600/PC5-44800
- Data Integrity Check: ECC
- Signal Processing: Registered
- CAS Latency Timings: CL46
- Rank Features: 2Rx8
Physical Characteristics:
- Form Factor: 288-pin RDIMM
- Shipping Dimensions: 1.00 in (height) x 6.75 in (depth)
- Shipping Weight: 0.30 lb
Properties
| Product Name | P64706-B21 |
| Description | HPE 32GB DDR5 5600MT/s SDRAM Memory Kit, designed for high-performance computing in HPE servers, offering increased speed and bandwidth. |
| Memory Type | DDR5 SDRAM |
| Capacity | 32 GB |
| Data Rate | 5600 MT/s |
| Form Factor | DIMM |
| Pin Count | 288-pin |
| Voltage | 1.1V |
| Error Checking | ECC (Error-Correcting Code) |
| CAS Latency | CL46 |
| Operating Temperature | 0°C to 85°C (32°F to 185°F) |
| Storage Temperature | -55°C to 100°C (-67°F to 212°F) |
| Dimensions | 13.3 cm x 3.1 cm x 0.8 cm (5.24 in x 1.22 in x 0.31 in) |
| Weight | 0.05 kg (0.11 lb) |
| Compatibility | Designed for use in HPE servers that support DDR5 memory |
| Usage | Ideal for data centers, enterprise servers, and high-performance computing environments |
| Durability | Rated for continuous operation under data-intensive workloads |
Specifications
| Memory Organization | 4G x 72 |
| Module Bandwidth | 44.8 GB/s |
| Component Configuration | 16 Gb x 4 |
| Rank | Single Rank |
| Supported Standards | JEDEC DDR5 |
| Certifications | CE, FCC, RoHS compliant |
| Environmental Safety | Manufactured with low-halogen materials, meets global environmental standards |
| EMC Compliance | Complies with international EMC standards for IT equipment |
| Refresh Rate | Auto-refresh and self-refresh supported |
| MTBF | 2,200,000 hours |
| Power Management | Supports on-die ECC and advanced power-saving features |
| Installation | Fits standard DIMM slots in supported HPE servers |
| Signal Integrity | Enhanced signal integrity for high data transfer reliability |
| Deployment | Optimized for virtualization, big data, and cloud computing |
| Firmware Compatibility | Compatible with server firmware supporting DDR5 memory |
| Thermal Design | Includes integrated heat spreaders for improved thermal performance |
| Wear Leveling | Supports wear-leveling algorithms for extended lifespan |
