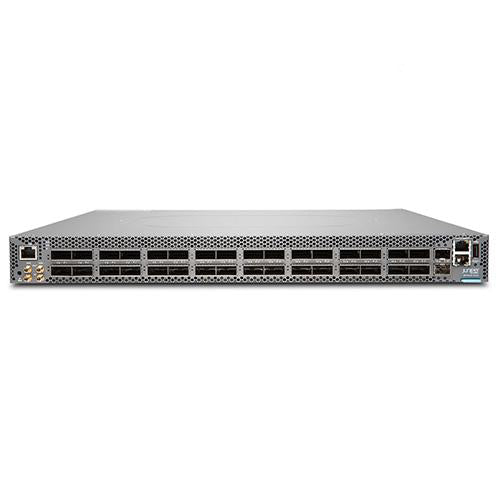

QFX522032 x 400G QSFP-DD/QSFP+/QSFP28 ports2 x AC power suppliesRedundant fansFront-to-back airflowHardware only, software services sold separately
Description
The QFX5200 line of access switches is ideally suited for leaf deployments in next-generation IP fabrics. It features line-rate, high-density SFP28/QSFP+/QSFP28 ports that support 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE connections. Offering an advanced L2, L3, and MPLS feature set, network operators can use the QFX5200 to build large, high-density IP fabrics that support upgrades to 25GbE servers, network virtualization, and intelligent traffic forwarding based on proven, Internet-scale technology. The QFX5200 also supports a version of Junos OS software in which control plane and data plane processes and functions run in parallel, maximizing utilization of the high-performance quad-core CPU.
Properties
| Properties | Juniper QFX5220-32CD-AFO |
| Description | QFX5220 (hardware with base software), 32 QSFP-DD/QSFP+/QSFP28 ports, redundant fans, 2 AC power supplies, front-to-back airflow |
| Product Family | QFX5220 Series |
| Product Type | Ethernet Switch |
| Dimensions (HxWxD) Inches | 17.26 x 1.72 x 21.1 in. (43.8 x 4.3 x 53.59 cm) |
| Rack units | 1 U |
| Weight | 24.5 lb (11.11 kg) with power supplies and fans installed |
| Operating system | Junos OS Evolved |
| Recommended Software Version | Junos OS Evolved 19.2R1 and Later |
| Deployment Options for QFX5210-64C | |
| Port Combinations | Deployment |
| 64x100GbE | Spine/leaf |
| 96x25GbE + 8x100GbE | 25GbE access |
| Interface Options | |
| Port density | 32 ports of QSFP56-DD 400GbE |
| SFP+/SFP28 | 2 SFP+ transceiver ports for in-band network management |
| Cooling | Ports-to-FRUs (AFO) cooling Redundant (5×2+1)+1 hot-pluggable fan modules with variable speed to minimize power draw |
| Power | Redundant (1+1) hot-pluggable 1600 W AC power supplies (2n) 115-240 V single phase AC power |
| Maximum Thermal Output | |
| Maximum power draw | 115-127 V: 973 W; 220-240 V: 958 W |
| Typical power draw | 115-127 V: 730 W; 220-240 V: 775 W |
Specifications
| Specifications | QFX5220-32CD-AFO |
| CPU | Intel Xeon D-1518 |
| System throughput | Up to 25.6 Tbps (bidirectional) |
| Forwarding capacity | 8 billion packets per second |
| Total packet buffer | 64 MB |
| MAC addresses per system | 8192 |
| VLAN Ids | 3968 |
| Number of link aggregation groups (LAGs) | 128 |
| Number of ports per LAG | 64 |
| Firewall filters | Ingress: 768 Routed ACL (RACL), VLAN ACL (VACL), and Port ACL (PACL) rules Egress: 2558 RACL; 512 VACL and PACL rules |
| IPv4 unicast routes | 380,000 prefixes; 380,000 host routes |
| IPv6 unicast routes | 130,000 prefixes; 130,000 host routes |
| Address Resolution Protocol (ARP) entries | 32,000 |
| Generic routing encapsulation (GRE) tunnels | 2000 |
| MPLS labels | 16,000 |
| Jumbo frame | 9,216 bytes |
| Traffic mirroring | – Mirroring destination ports per switch: 4 – Maximum number of mirroring sessions: 4 – Mirroring destination VLANs per switch: 4 |
| Software Specifications | |
| Layer 2 Features (*Reserved for future release) |
STPIEEE 802.1D (802.1D-2004)* Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s)* Bridge protocol data unit (BPDU) protect* Loop protect* Root protect* RSTP and VSTP running concurrently* VLANIEEE 802.1Q VLAN trunking Routed VLAN interface (RVI) Port-based VLAN MAC address filtering* Static MAC address assignment for interface MAC learning disable Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) |
| Layer 3 Features (*Reserved for future release) |
Static routing OSPF v1/v2 OSPF v3 Filter-based forwarding Virtual Router Redundancy Protocol (VRRP)* IPv6 Virtual routers Loop-free alternate (LFA) BGP (Advanced Services or Premium Services license) IS-IS (Advanced Services or Premium Services license) Dynamic Host Configuration Protocol (DHCP) v4/v6 relay VR-aware DHCP IPv4/IPv6 over GRE tunnels (interface-based with decap/encap only) |
| Multicast Features (*Reserved for future release) |
Internet Group Management Protocol (IGMP) v1/v2 Multicast Listener Discovery (MLD) v1/v2 IGMP proxy, querier IGMP v1/v2/v3 snooping Intersubnet multicast using IRB interface MLD snooping Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM, PIM-Bidir* Multicast Source Discovery Protocol (MSDP)* |
| Link Aggregation | LAG load sharing algorithmbridged or routed (unicast or multicast) traffic: -IP: Session Initiation Protocol (SIP), Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port -L2 and non-IP: MAC SA, MAC DA, Ether type, VLAN ID, source port |
| Quality of Service (QoS) | L2 and L3 QoS: Classification, rewrite, queuing Rate limiting: -Ingress policing: 1 rate 2 color, 2 rate 3 color -Egress policing: Policer, policer mark down action -Egress shaping: Per queue, per port 10 hardware queues per port (8 unicast and 2 multicast) Strict priority queuing (LLQ), shaped-deficit weighted round-robin (SDWRR), weighted random early detection (WRED) 802.1p remarking Layer 2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN Congestion avoidance capabilities: WRED, ECN Trust IEEE 802.1p (ingress) Remarking of bridged packets Configurable shared buffer and buffer monitoring |
| Security and Filters (*Reserved for future release) |
Secure interface login and password RADIUS TACACS+ Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters, loopback filters for control plane protection Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark SSH v1, v2 Static ARP support Storm control, port error disable, and autorecovery* Control plane denial-of-service (DoS) protection |
| Data Center Bridging (DCB) (*Reserved for future release) |
Priority-based flow control (PFC)IEEE 802.1Qbb Data Center Bridging Exchange Protocol (DCBX)* |
| High Availability (*Reserved for future release) |
Sub-second Bidirectional Forwarding Detection (BFD) Uplink failure detection (UFD)* |
| MPLS (Advanced Services License) (*Reserved for future release) |
Static label-switched paths (LSPs) RSVP-based signaling of LSPs LDP-based signaling of LSPs LDP tunneling (LDP over RSVP) MPLS class of service (CoS)* MPLS access control list (ACL)/policers* MPLS LSR support IPv4 L3 VPN (RFC 2547, 4364) MPLS fast reroute (FRR) |
| Visibility and Analytics | Switched Port Analyzer (SPAN) Remote SPAN (RSPAN) Encapsulated Remote SPAN (ERSPAN) sFlow v5 Junos Telemetry Interface |
| Device Management and Operations (*Reserved for future release) |
Contrail Networking* Role-based CLI management and access CLI via console, telnet, or SSH Extended ping and traceroute Junos OS Evolved configuration rescue and rollback Image rollback SNMP v1/v2/v3 Junos OS Evolved XML management protocol High frequency statistics collection Automation and orchestration Zero-touch provisioning (ZTP) Python Junos OS Evolved event, commit, and OP scripts |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C) |
| Operating altitude | Up to 6000 feet (1828.8 meters) |
| Relative humidity operating | 5% to 90% (noncondensing) |
| Relative humidity non-operating | 0% to 95% (noncondensing) |
| Seismic | Designed to meet GR-63, Zone 4 earthquake requirements |
| IEEE Standards | IEEE 802.1D IEEE 802.1w IEEE 802.1 IEEE 802.1Q IEEE 802.1p IEEE 802.1ad IEEE 802.3ad IEEE 802.1AB IEEE 802.3x IEEE 802.1Qbb IEEE 802.1Qaz |
| T11 Standards | INCITS T11 FC-BB-5 |
| Supported RFCs | RFC 768 UDP RFC 783 Trivial File Transfer Protocol (TFTP) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 Telnet client and server RFC 894 IP over Ethernet RFC 903 RARP RFC 906 TFTP Bootstrap RFC 951 1542 BootP RFC 1058 Routing Information Protocol RFC 1112 IGMP v1 RFC 1122 Host requirements RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 1256 IPv4 ICMP Router Discovery (IRDP) RFC 1492 TACACS+ RFC 1519 Classless Interdomain Routing (CIDR) RFC 1587 OSPF not-so-stubby area (NSSA) Option RFC 1591 Domain Name System (DNS) RFC 1745 BGP4/IDRP for IPOSPF Interaction RFC 1772 Application of the Border Gateway Protocol in the Internet RFC 1812 Requirements for IP Version 4 routers RFC 1997 BGP Communities Attribute RFC 2030 SNTP, Simple Network Time Protocol RFC 2068 HTTP server RFC 2131 BOOTP/DHCP relay agent and Dynamic Host RFC 2138 RADIUS Authentication RFC 2139 RADIUS Accounting RFC 2154 OSPF w/Digital Signatures (password, MD-5) RFC 2236 IGMP v2 RFC 2267 Network ingress filtering RFC 2328 OSPF v2 (edge mode) RFC 2338 VRRP RFC 2362 PIM-SM (edge mode) RFC 2370 OSPF Opaque link-state advertisement (LSA) Option RFC 2385 Protection of BGP Sessions via the TCP Message Digest 5 (MD5) Signature Option RFC 2439 BGP Route Flap Damping RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers RFC 2597 Assured Forwarding PHB (per-hop behavior) Group RFC 2598 An Expedited Forwarding PHB RFC 2697 A Single Rate Three Color Marker RFC 2698 A Two Rate Three Color Marker RFC 2796 BGP Route ReflectionAn Alternative to Full Mesh IBGP RFC 2918 Route Refresh Capability for BGP-4 RFC 3065 Autonomous System Confederations for BGP RFC 3376 IGMP v3 (source-specific multicast include mode only) RFC 3392 Capabilities Advertisement with BGP-4 RFC 3446, Anycast RP RFC 3569 Source-specific multicast (SSM) RFC 3618 MSDP RFC 3623 Graceful OSPF Restart RFC 4271 Border Gateway Protocol 4 (BGP-4) RFC 4360 BGP Extended Communities Attribute RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) RFC 4486 Subcodes for BGP Cease Notification Message RFC 4724 Graceful Restart Mechanism for BGP RFC 4812 OSPF Restart Signaling RFC 4893 BGP Support for Four-octet AS Number Space RFC 5176 Dynamic Authorization Extensions to RADIUS RFC 5396 Textual Representation of Autonomous System (AS) Numbers RFC 5668 4-Octet AS Specific BGP Extended Community RFC 5880 Bidirectional Forwarding Detection (BFD) Configuration Protocol (DHCP) server |
| Supported MIBs | RFC 155 SMI RFC 1157 SNMPv1 RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs RFC 1850 OSPFv2 MIB RFC 1901 Introduction to Community-based SNMPv2 RFC 2011 SNMPv2 for Internet protocol using SMIv2 RFC 2012 SNMPv2 for transmission control protocol using SMIv2 RFC 2013 SNMPv2 for user datagram protocol using SMIv2 RFC 2233, The Interfaces Group MIB using SMIv2 RFC 2287 System Application Packages MIB RFC 2570 Introduction to Version 3 of the Internet standard Network Management Framework RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access) RFC 2572 Message Processing and Dispatching for the SNMP (read-only access) RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3 RFC 2578 SNMP Structure of Management Information MIB RFC 2579 SNMP Textual Conventions for SMIv2 RFC 2580 Conformance Statements for SMIv2 RFC 2665 Ethernet-like interface MIB RFC 2787 VRRP MIB RFC 2790 Host Resources MIB RFC 2819 RMON MIB RFC 2863 Interface Group MIB RFC 2932 IPv4 Multicast MIB RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework RFC 3411 An architecture for describing SNMP Management Frameworks RFC 3412 Message Processing and Dispatching for the SNMP RFC 3413 Simple Network Management Protocol RFC 3414 User-based Security Model (USM) for SNMPv3 RFC 3415 View-based Access Control Model (VACM) for the SNMP RFC 3416 Version 2 of the Protocol Operations for the SNMP RFC 3417 Transport Mappings for the SNMP RFC 3418 Management Information Base (MIB) for the SNMP RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet Standard Network Management Framework RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model RFC 4188 Definitions of Managed Objects for Bridges RFC 4318 Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol RFC 4363b Q-Bridge VLAN MIB |
| Safety | CAN/CSA-C22.2 No. 60950-1 Information Technology EquipmentSafety UL 60950-1 Information Technology EquipmentSafety EN 60950-1 Information Technology EquipmentSafety IEC 60950-1 Information Technology EquipmentSafety (All country deviations) EN 60825-1 Safety of Laser ProductsPart 1: Equipment Classification |
| Security | FIPS/CC* TAA* |
| EMC | 47 CFR Part 15, (FCC) Class A ICES-003 Class A EN 55022/EN 55032, Class A CISPR 22/CISPR 32, Class A EN 55024 CISPR 24 EN 300 386 VCCI Class A AS/NZS CISPR 32, Class A KN32/KN35 BSMI CNS 13438, Class A EN 61000-3-2 EN 61000-3-3 ETSI ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment ETSI EN 300 019-2-1 (2000)Storage ETSI EN 300 019-2-2 (1999)Transportation ETSI EN 300 019-2-3 (2003)Stationary Use at Weatherprotected Locations ETSI EN 300 019-2-4 (2003)Stationary Use at NonWeather-protected Locations ETS 300753 (1997)Acoustic noise emitted by telecommunications equipment |
Accessories
| Accessories | |
| JPSU-1600W-1UACAFO | QFX5220-32CD-AFO 1 U AC power supply unit |
| QFX5220-32CD-FANAO | Airflow out (AFO) front-to-back airflow fans for QFX5220-32CD |
| QFX5220-32CD-4PRMK | 4-Post Rack Mount Kit for QFX5220-32CD |
| Software Licenses SKUs | |
| S-QFX5K-C3-A1-X (X=3,5) | Base L3 Software Subscription (X Years; X=3,5) License for QFX5220-32CD/QFX5220-128C |
| S-QFX5K-C3-A2-X (X=3,5) | Advanced Software Subscription (X Years; X=3,5) License for QFX5220-32CD/QFX5220-128C |
| S-QFX5K-C3-P1-X (X=3,5) | Premium Software Subscription (X Years; X=3,5) License for QFX5220-32CD/QFX5220-128C |
| Optics and Transceivers | |
| QDD-400G-DAC-1M | QSFP56-DD 400GbE DAC 1 M |
| QDD-400G-DAC-2P5M | QSFP56-DD 400GbE DAC 2.5 M |
| QDD-4x100G-FR | QSFP-DD 4x100GBASE-FR breakout 1310 nm PAM4 transceiver module, 2 km reach |
| QDD-400G-DR4 | QSFP-DD 400GBASE-DR4 / 4x100GBASE-DR 1310 nm PAM4 transceiver module, 500 m reach |
| QDD-400G-FR4 | QSFP-DD 400GBASE-FR4 1310 nm PAM4 transceiver module, 2 km reach |
| QDD-400G-AOC-XM | 400GbE QSFP56-DD active optical cable of XM (X=1,3,5,7,10,15,20,30) |
| JNP-100G-4x25G-1M | 100GbE QSFP28 to 4x25GbE SFP28 passive direct attach copper breakout cable, length: 1 m |
| JNP-100G-4x25G-3M | 100GbE QSFP28 to 4x25G SFP28 passive direct attach copper breakout cable, length: 3 m |
| JNP-QSFP-100G-BXSR* | 100GbE SR-bidirectional QSFP transceiver, LC, 100 M, OM4 multimode fiber-optic (MMF) |
