Description

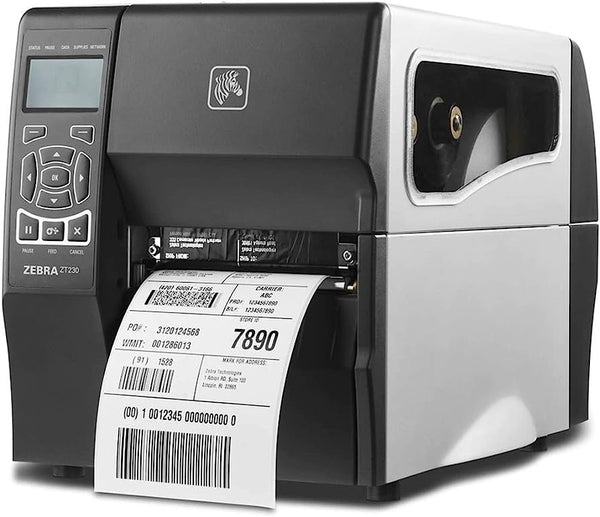

Zebra ZT23042-T01200FZ Thermal Barcode Label Printer (ZT230)

The Zebra ZT230 is a durable and high-performance industrial barcode label printer, designed for demanding applications requiring long-lasting labels. With a 203 dpi print resolution and a maximum print speed of 6 inches per second, this printer ensures sharp and efficient label production. Featuring a bi-color LED indicator, an LCD screen, and a clear bi-fold media side door, the ZT230 simplifies operation and maintenance. It supports Serial, USB, and Ethernet connectivity, allowing seamless integration into manufacturing, logistics, healthcare, and warehouse operations.

Ribbon Requirement: Ribbon Required (for Thermal Transfer printing)

Key Features:

• Thermal Transfer Printing: Produces long-lasting, high-quality labels using ribbon-based printing.
• Fast Print Speed: Prints at up to 6 inches per second for high-volume efficiency.
• Multiple Connectivity Options: Equipped with Serial (RS-232), USB, and Ethernet for seamless integration.
• Rugged Industrial Design: Built to withstand challenging environments with a durable metal frame.
• Large Media Handling Capacity: Supports large label rolls with an 8-inch maximum roll diameter.
• Easy Maintenance: Clear bi-fold side door enables quick media and ribbon changes.
• Barcode & Font Support: Compatible with multiple barcode symbologies, including QR codes, Data Matrix, and PDF-417.

Technical Specifications:

• Print Technology: Thermal Transfer
• Print Resolution: 203 dpi
• Maximum Print Speed: 6 in/sec
• Maximum Print Width: 4.09 inches
• Memory: 128MB DRAM, 128MB Flash
• Interface Options: Serial (RS-232), USB, Ethernet (Fast Ethernet)
• Display: LCD screen with bi-color LED indicators
• Barcode Symbologies Supported: Code 39, Code 128, UPC-A, QR Code, Data Matrix, Maxi Code, PDF-417, and more
• Supported Media Types: Continuous Label, Die-cut Label, Notch, Black Mark
• Maximum Roll Diameter: 8 inches
• Maximum Label Width: 4.50 inches
• Maximum Label Length: 39 inches
• Media Sensor: Transmissive and Reflective
• Ribbon Core Size: 1 inch
• Power Supply: AC input (110V/220V)
• Dimensions (H x W x D): 10.9 x 9.5 x 17 inches
• Weight: 20 lb
