400 Gigabit EthernetFour QSFP56 portsPCIe 4.0 x16 interfaceCrypto supportThumbscrew (Pull Tab) Bracket
Description

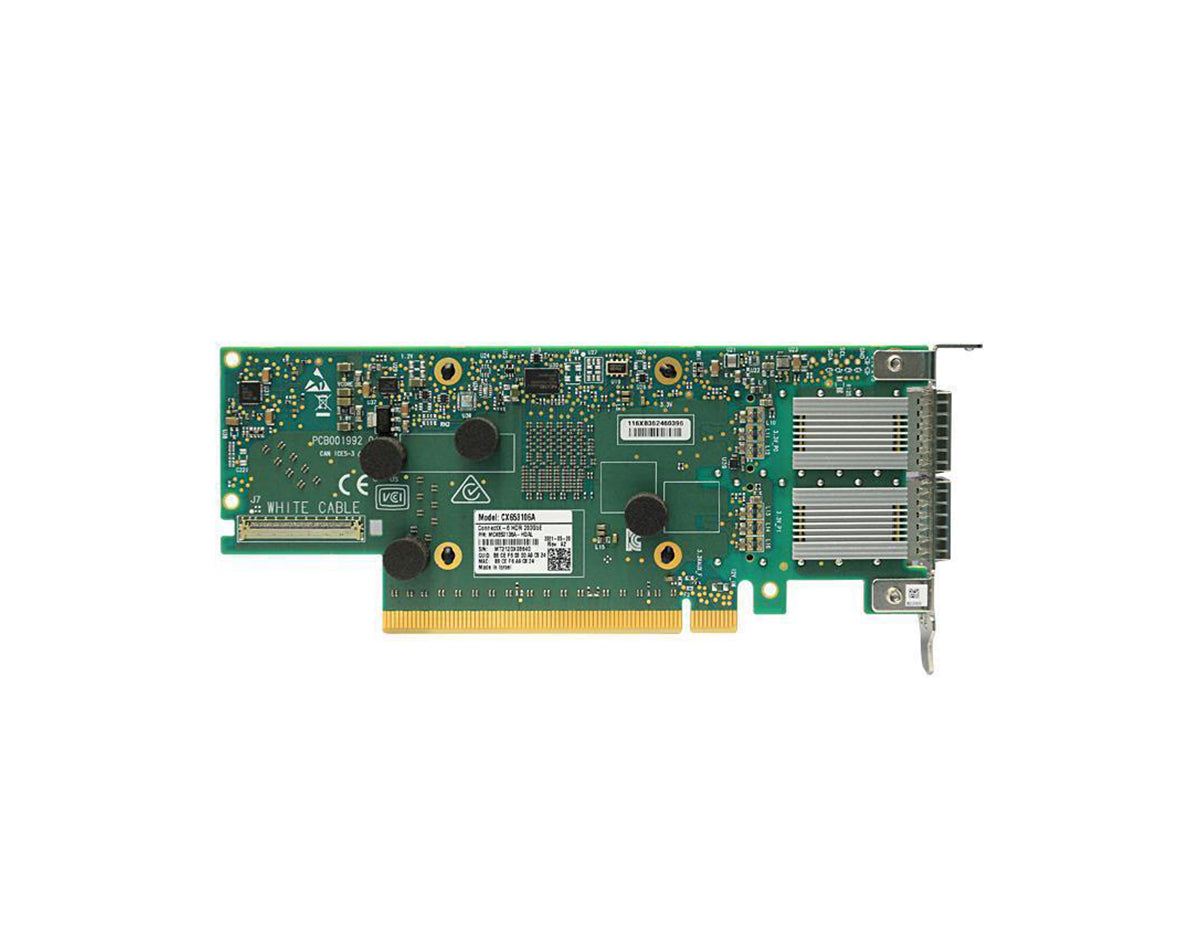

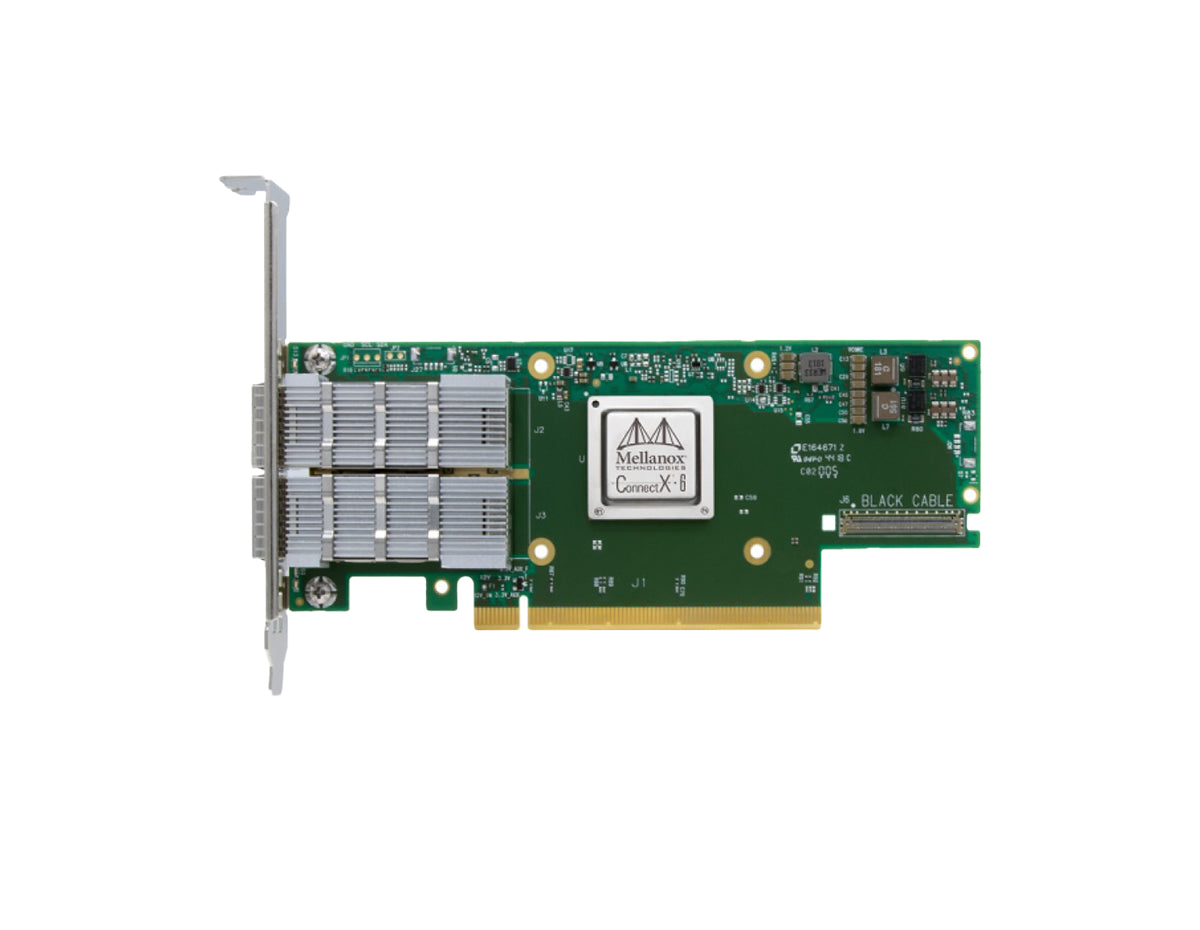

Mellanox MCX653106A-HDAL Network Adapter Card
The Mellanox MCX653106A-HDAL is a member of the ConnectX-6 Ethernet Adapter Cards family. This product offers the highest performance, PCIe Gen 3.0 and Gen 4.0 support, and Mellanox Host Daisy-chaining technology for economical rack design for compute and storage infrastructures. This card is an excellent choice for servers that need high-performance networking, scalability, reliability, and security. It is ideal for use in data centers, high-performance computing, cloud computing, telecom, and enterprise networks.
Quick Specs:
- 16x PCIe 3.0/4.0
- Dual-port QSFP56
- 1/10/25/40/50/100/200 Gb/s Ethernet
- Commit Rate: 215M messages per second
Please see the related tabs for the MCX653106A-HDAL datasheet and compatible accessories.
Properties
| Product Name | Mellanox MCX653106A-HDAL |
| Description | High-performance network adapter card designed for data centers and high-performance computing environments |
| Product Family | ConnectX-6 Ethernet Adapter Cards |
| Product Type | Network Adapter Card |
| Interface | PCIe Gen 3.0/4.0 x16 |
| Ports | Dual QSFP56 |
| Data Rate | Supports 1/10/25/40/50/100/200 Gb/s Ethernet |
| Latency | Sub-600ns |
| Message Rate | Up to 215 million messages per second |
| Form Factor | Standard full-height card with cold plate for liquid cooling |
| Dimensions (H x W) | 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
| Power Consumption | Typical: 18.5W with passive cables |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 85% relative humidity |
Specifications
| Storage Humidity | 10% to 90% relative humidity |
| Altitude (Operational) | Up to 3050m |
| Compliance | RoHS Compliant |
| Safety Certifications | CB, cTUVus, CE |
| EMC Certifications | CE, FCC, VCCI, ICES, RCM, KC |
| Protocol Support | InfiniBand: IBTA v1.4 with auto-negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane), HDR100 (2 lanes x 50Gb/s per lane), HDR (50Gb/s per lane); Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
| Features | Supports both InfiniBand and Ethernet protocols, hardware-based I/O virtualization, advanced storage capabilities including block-level encryption and checksum offloads, sub-600ns latency, up to 215 million messages per second, cold plate design for liquid-cooled systems, RoHS compliant |
| Environmental Specifications | Operating Temperature: 0°C to 55°C, Storage Temperature: -40°C to 70°C, Operating Humidity: 10% to 85% relative humidity, Storage Humidity: 10% to 90% relative humidity, Operational Altitude: Up to 3050m |
| Regulatory Compliance | Safety: CB, cTUVus, CE; EMC: CE, FCC, VCCI, ICES, RCM, KC; RoHS: Compliant |
