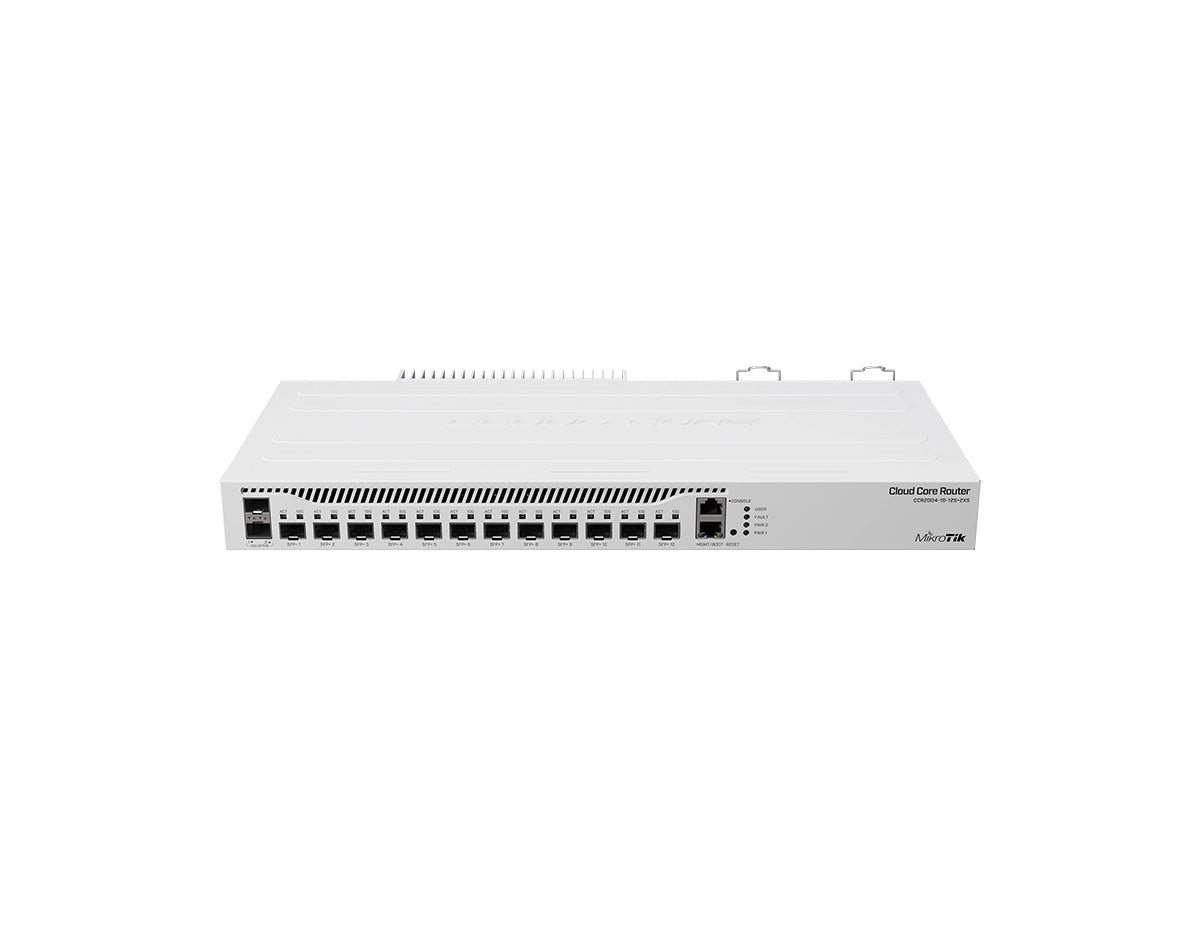

MikroTik CCR2004-1G-12S+2XS Router
The CCR2004-1G-12S+2XS provides a wide range of ports, comprising 12 x 10G SFP+ and 2 x 25G SFP28, establishing it as a robust networking solution. This router delivers unparalleled single-core performance and outstanding outcomes in single tunneling (up to 2.3 Gbps) and BGP feed processing, ensuring high-caliber performance for your network. This product is housed in a durable and space-saving RackMount case. Its sleek 1U rackmount design facilitates effortless incorporation into your current network configuration.
Quick Specs:
- 1x 10/100/1000 Ethernet Port
- 12x 10G SFP+ ports uplink
- 2x 25G SFP28 ports uplink
- RouterOS v7 / 4GB ECC RAM
Please see the related tabs for the CCR2004-1G-12S+2XS datasheet and compatible accessories.
Properties
| Properties | MikroTik CCR2004-1G-12S+2XS |
| Description | The Connectivity Router – your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier. |
| Product Family | CCR Series |
| Product Type | Ethernet Router |
| Features | 72 core CPU 1 GHz clock per core State of the art TILE GX architecture over 120 million pps packet throughput up to 80 Gbps throughput Full set of features 8x SFP+ ports 16GB ECC RAM Ports directly connected to CPU microSD and 2x M.2 |
| Ports | |
| 1G Ethernet ports | 1 |
| 10G SFP+ | 12 |
| 25G SFP28 | 2 |
| Serial console port | 1 RJ45 |
| Memory card type | microSD, 2x M.2 |
| Smart card slot | Yes |
| Number of M.2 slots | 2 |
| Extras | CPU temperature monitor PCB temperature monitor Voltage Monitor |
| Dimensions | 443 x 224 x 44 mm |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 49 W |
| Max power consumption without attachments | 32 W |
| Cooling type | 2 fans |
Specifications
| Specifications | CCR2004-1G-12S+2XS |
| Memory | 4 GB |
| NAND Storage size | 128 MB |
| CPU | AL32400 1700 MHz |
| CPU core count | 4 |
| OS | MikroTik RouterOS v7, Level 6 license, free product lifetime upgrades |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -20°C to 60°C tested |
| IPsec hardware acceleration | Yes |
| Certification | CE, EAC, ROHS |
| IPsec test results | |
| Mode | IPsec throughput |
| Single tunnel | |
| 1400 byte | |
| AES-128-CBC + SHA1 | kpps: 303.6 Mbps: 3400.3 |
| 512 byte | |
| AES-128-CBC + SHA1 | kpps: 353.6 Mbps: 1448.3 |
| 64 byte | |
| AES-128-CBC + SHA1 | kpps: 354.7 Mbps: 181.6 |
| 256 tunnels | |
| 1400 byte | |
| AES-128-CBC + SHA1 | kpps: 302.0 Mbps: 3382.4 |
| AES-128-CBC + SHA256 | kpps: 302.0 Mbps: 3382.4 |
| AES-256-CBC + SHA1 | kpps: 300.3 Mbps: 3363.4 |
| AES-256-CBC + SHA256 | kpps: 300.3 Mbps: 3363.4 |
| 512 byte | |
| AES-128-CBC + SHA1 | kpps: 378.8 Mbps: 1551.6 |
| AES-128-CBC + SHA256 | kpps: 378.8 Mbps: 1551.6 |
| AES-256-CBC + SHA1 | kpps: 374.5 Mbps: 1534.0 |
| AES-256-CBC + SHA256 | kpps: 374.5 Mbps: 1534.0 |
| 64 byte | |
| AES-128-CBC + SHA1 | kpps: 376.4 Mbps: 192.7 |
| AES-128-CBC + SHA256 | kpps: 376.4 Mbps: 192.7 |
| AES-256-CBC + SHA1 | kpps: 374.5 Mbps: 191.7 |
| AES-256-CBC + SHA256 | kpps: 374.5 Mbps: 191.7 |
Accessories
| Accessories | 2 IEC cords Screw and feet kit (K10) Rackmount bracket |
