Description

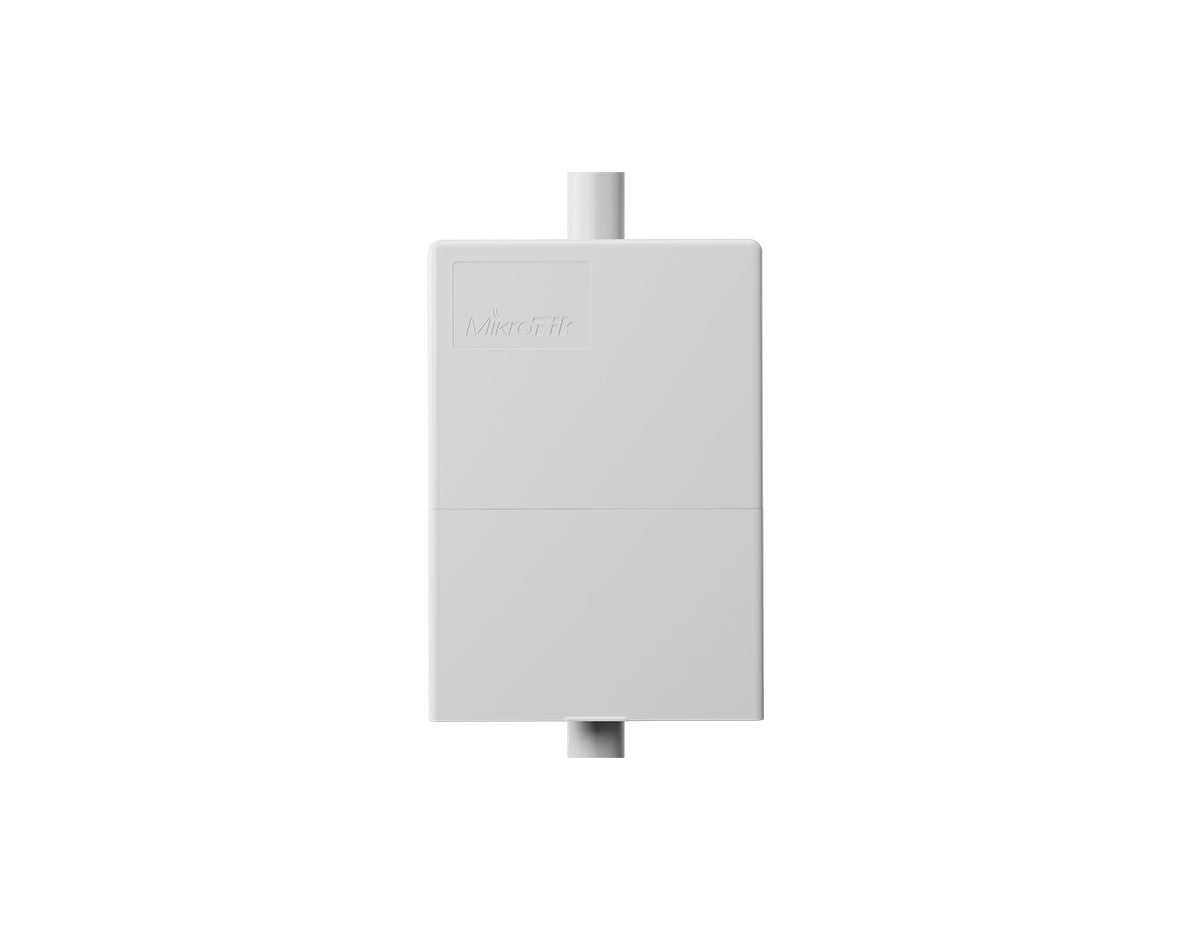

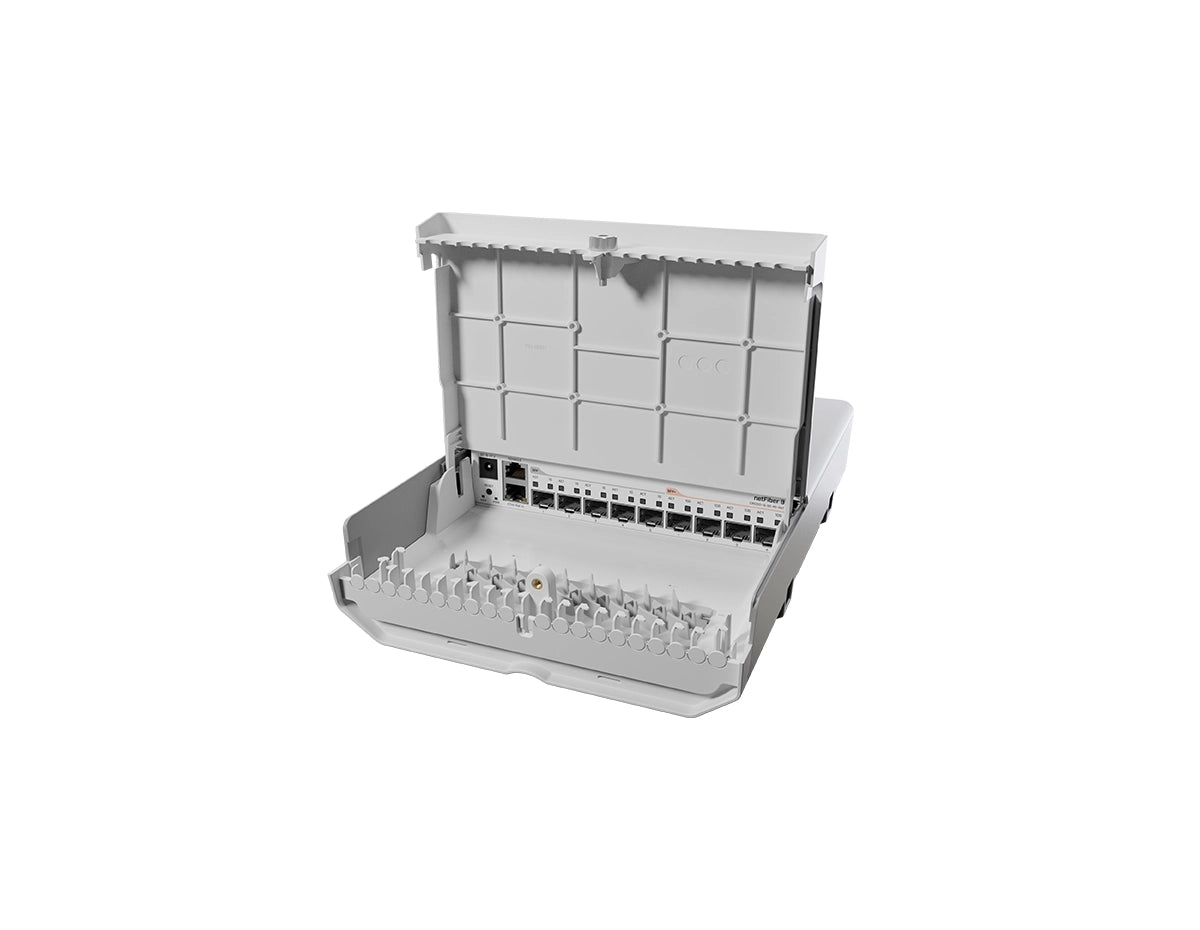

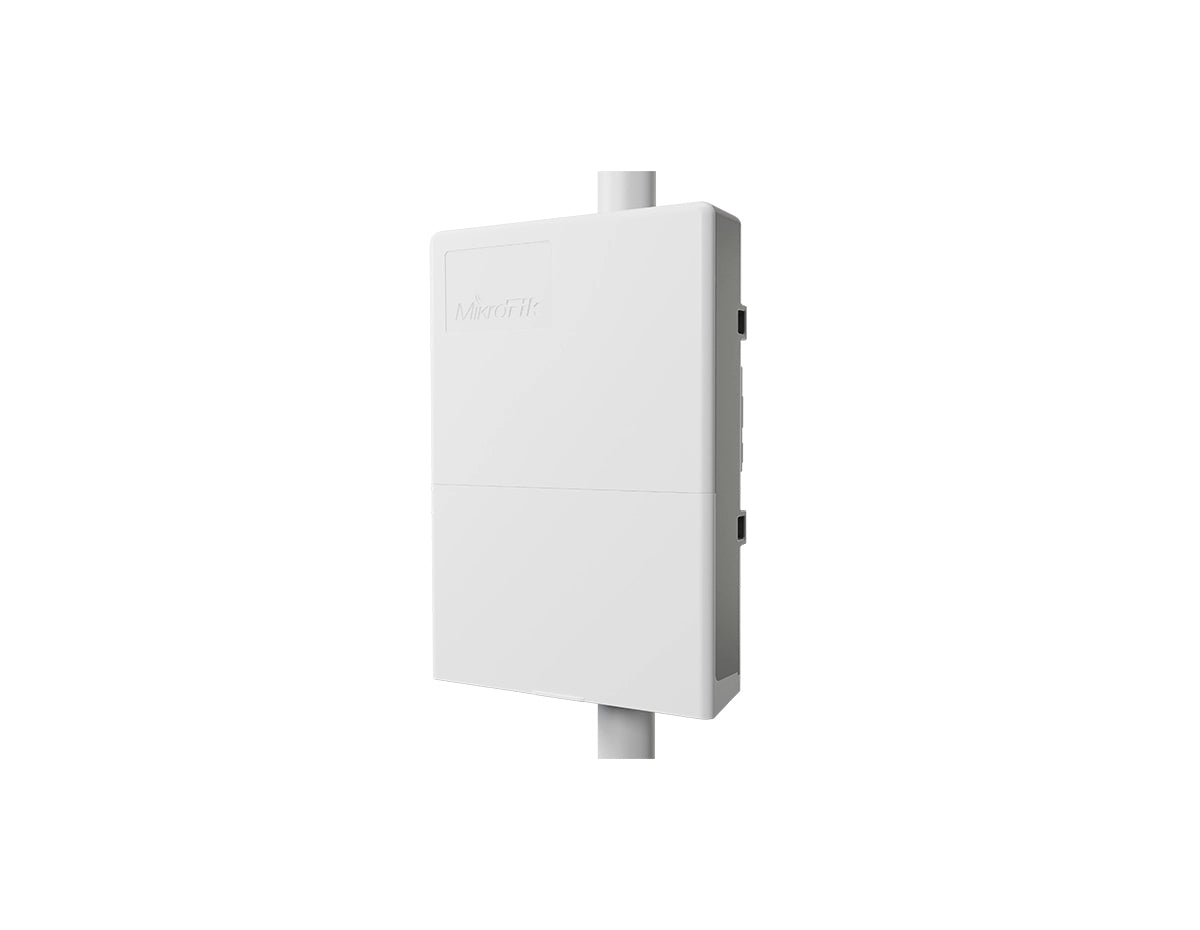

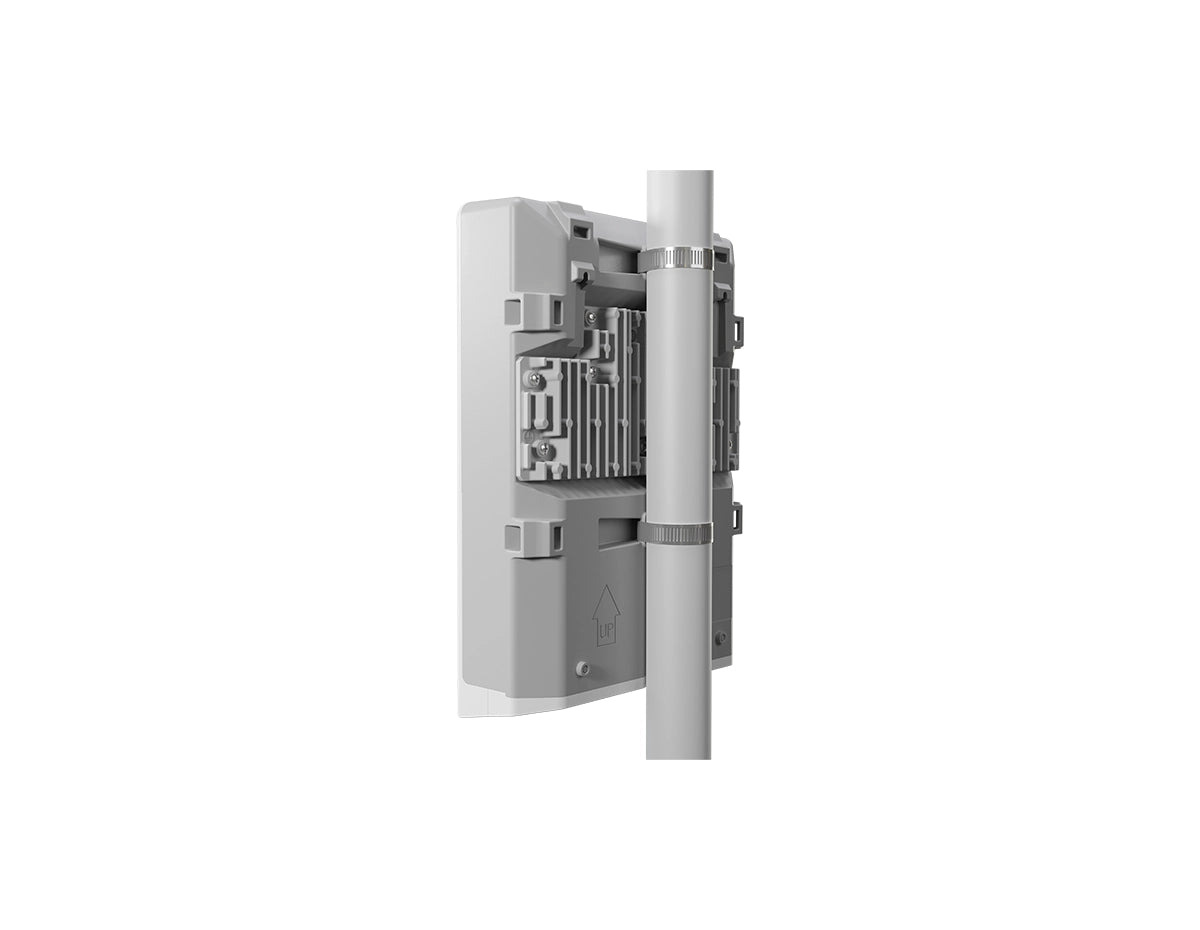

MikroTik CRS310-1G-5S-4S+OUT Switch
The CRS310-1G-5S-4S+OUT is a robust outdoor switch equipped with SFP, SFP+, and Gigabit Ethernet capabilities. It is powered by a potent ARM v7 CPU, 256 MB of RAM, 4x 10G SFP+ ports, and an advanced Marvell switch chip designed to handle heavy workloads. The Gigabit Ethernet port serves not only for management purposes but also provides a direct connection to the switch chip, enabling full gigabit speed. Additionally, this port supports PoE-in, offering an alternative power source for locations with limited access to a DC jack.
Quick Specs:
- 1x 10/100/100 Ethernet Port
- 5x 1G SFP ports uplink
- 4x 10G SFP+ ports uplink
- Multiple Powering Options
Please see the related tabs for the CRS310-1G-5S-4S+OUT datasheet and compatible accessories.
Properties
| Properties | MikroTik CRS310-1G-5S-4S+OUT |
| Description | A remarkable outdoor switch for setting up an optical 10G network that can even perform some light routing. The spiritual successor to the beloved FiberBox. Gigabit Ethernet, SFP/SFP+, PoE |
| Product Family | CRS Series |
| Product Type | Ethernet Switch |
| Ports | |
| 10/100/1000 Ethernet ports | 1 |
| SFP ports | 5 |
| SFP+ ports | 4 |
| Serial port | 1 RJ45 |
| Extras | CPU temperature monitor PCB temperature monitor Voltage Monitor |
| Dimensions | 200 x 166 x 45 mm |
| Number of DC inputs | 2 (PoE-in, DC jack) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 16.3 W |
| PoE in input Voltage | 18-57 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
Specifications
| Specifications | CRS310-1G-5S-4S+OUT |
| Memory | 256 MB |
| Flash Storage size | 16 MB |
| CPU | 98DX226S 800 MHz |
| CPU core count | 1 |
| Switch chip model | 98DX226S |
| OS | RouterOS, License level 5 |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Switching results | |
| 1518 byte | |
| Non blocking Layer 2 throughput | kpps: 3,738.6 Mbps: 45,401.8 |
| Non blocking Layer 2 capacity | kpps: 3,738.6 Mbps: 90,803.6 |
| Non blocking Layer 1 throughput | kpps: 3,738.6 Mbps: 46,000.0 |
| Non blocking Layer 1 capacity | kpps: 3,738.6 Mbps: 92,000.0 |
| 512 byte | |
| Non blocking Layer 2 throughput | kpps: 10,808.3 Mbps: 44,270.7 |
| Non blocking Layer 2 capacity | kpps: 10,808.3 Mbps: 88,541.4 |
| Non blocking Layer 1 throughput | kpps: 10,808.3 Mbps: 46,000.0 |
| Non blocking Layer 1 capacity | kpps: 10,808.3 Mbps: 92,000.0 |
| 64 byte | |
| Non blocking Layer 2 throughput | kpps: 68,452.4 Mbps: 35,047.6 |
| Non blocking Layer 2 capacity | kpps: 68,452.4 Mbps: 70,095.2 |
| Non blocking Layer 1 throughput | kpps: 68,452.4 Mbps: 46,000.0 |
| Non blocking Layer 1 capacity | kpps: 68,452.4 Mbps: 92,000.0 |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Accessories
| Accessories |
| 48 V 0.95 A power adapter |
| Gigabit PoE injector |
| K-66 fastening set |
| Hose clamp x 2 |
