Call for Price
Description

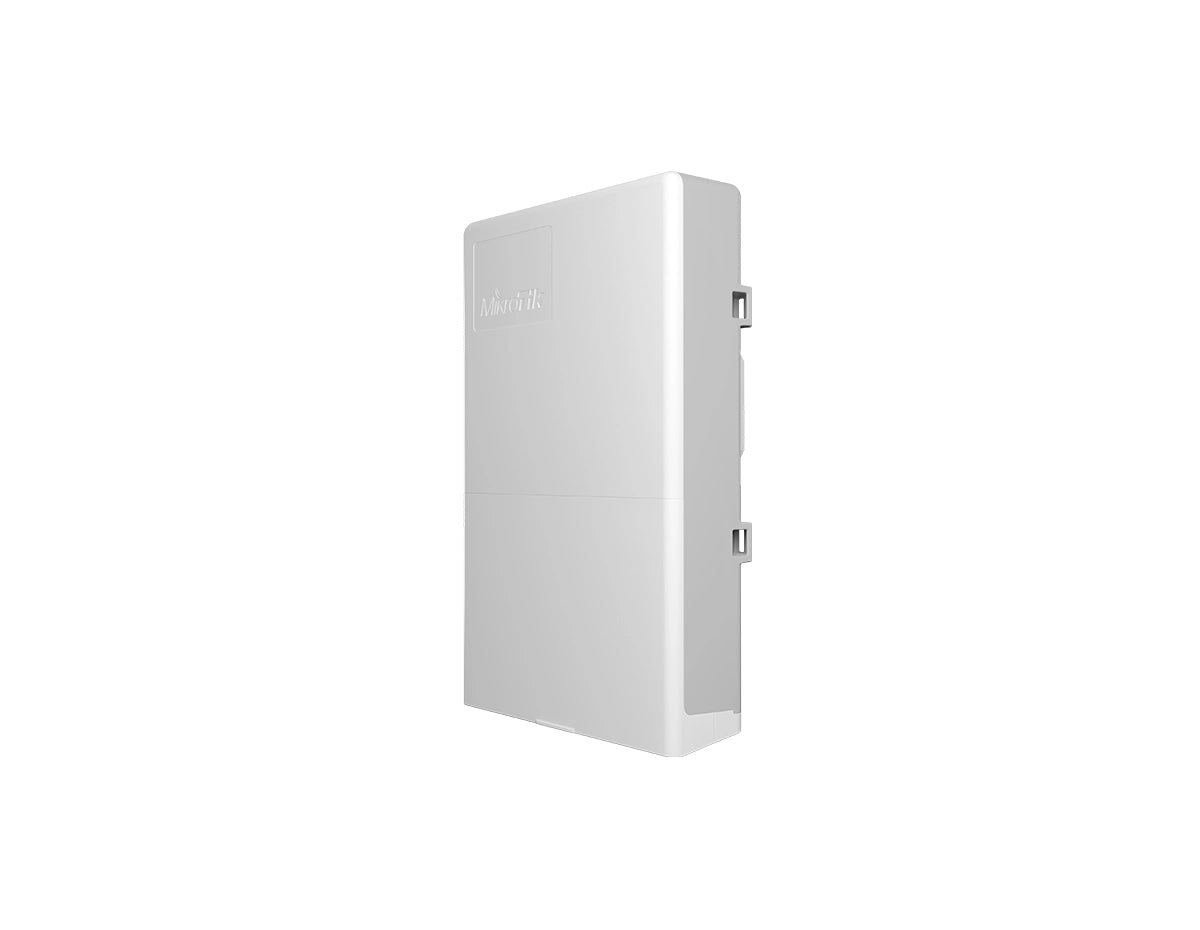

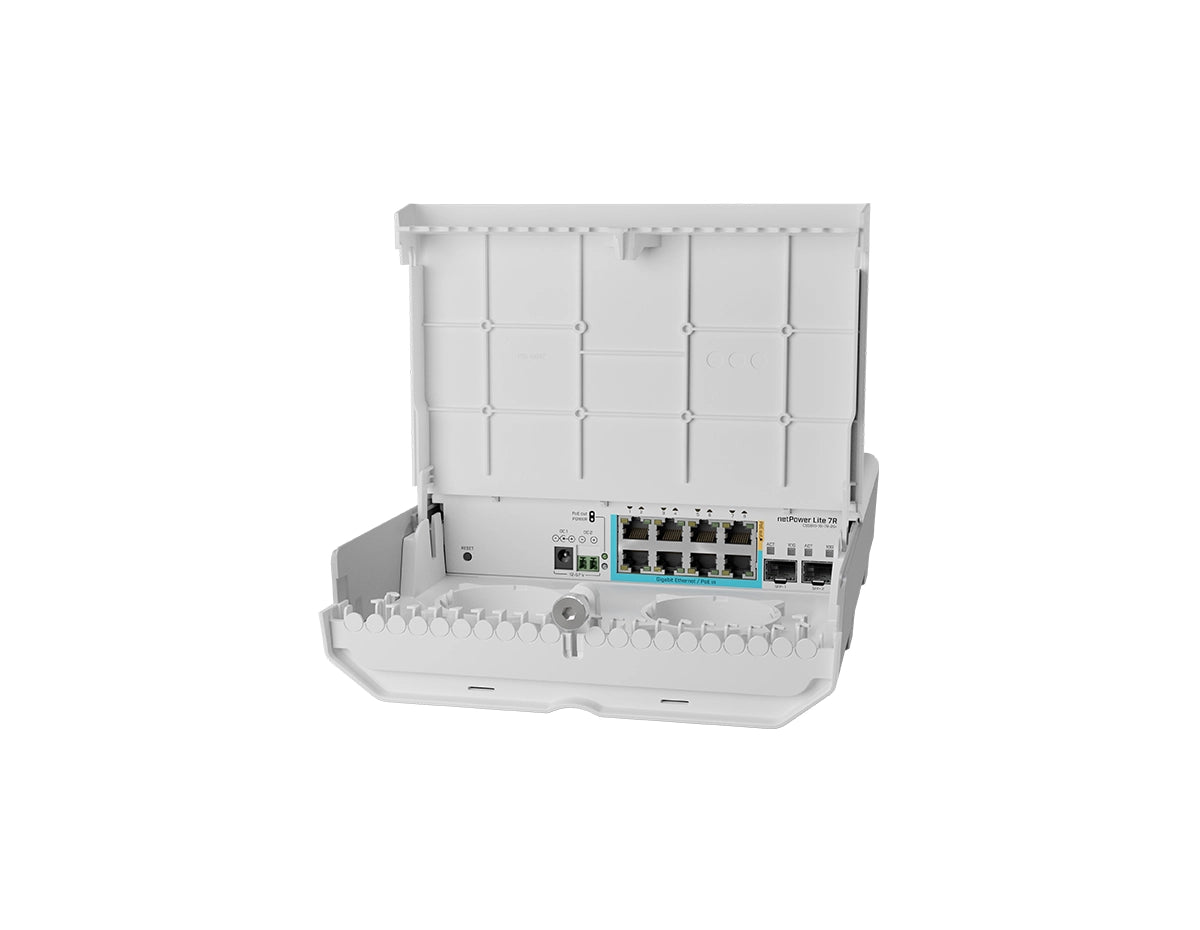

MikroTik CSS610-1GI-7R-2S+OUT Switch
The CSS610-1Gi-7R-2S+OUT SwOS Powered Switch is specifically engineered for outdoor deployment, providing a flexible and robust networking solution. It is equipped with 7 Gigabit Ethernet ports and 2 SFP+ ports, this switch delivers high-speed connectivity for a wide range of network devices.
Quick Specs:
- 8x 1G Ethernet ports (7x 1G Reverse PoE / 1x 1G Ethernet port with PoE-out)
- 2x 10G SFP+ ports uplink
- PoE in: Passive PoE
- PoE-out ports: Ether8
Please see the related tabs for the CSS610-1Gi-7R-2S+OUT datasheet and compatible accessories.
Properties
| Properties | MikroTik CSS610-1Gi-7R-2S+OUT |
| Description | An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports. |
| Product Family | CSS Series |
| Product Type | Ethernet Switch |
| Ports | |
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 7 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| SFP+ ports | 2 |
| Dimensions | 304 x 212 x 71 mm |
| Number of DC inputs | 3 (2-pin terminal, DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| 2-pin terminal input Voltage | 12-57 V |
| Max power consumption | 29 W |
| Max power consumption without attachments | 7 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
| PoE-out ports | Ether8 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 450 mA |
Specifications
| Specifications | CSS610-1Gi-7R-2S+OUT |
| Flash Storage size | 64 KB |
| Switch chip model | 88E6193X |
| OS | SwitchOS Lite |
| Non-Blocking throughput | 28 Gbps |
| Switching capacity | 56 Gbps |
| Forwarding rate | 41.7 Mpps |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 70°C |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP54 |
Accessories
| Accessories | |
| Hose clamp 2 | |
| K-66 fastening set | |
