Detail:A wireless, outdoor, high-gain, compact, durable.
Description

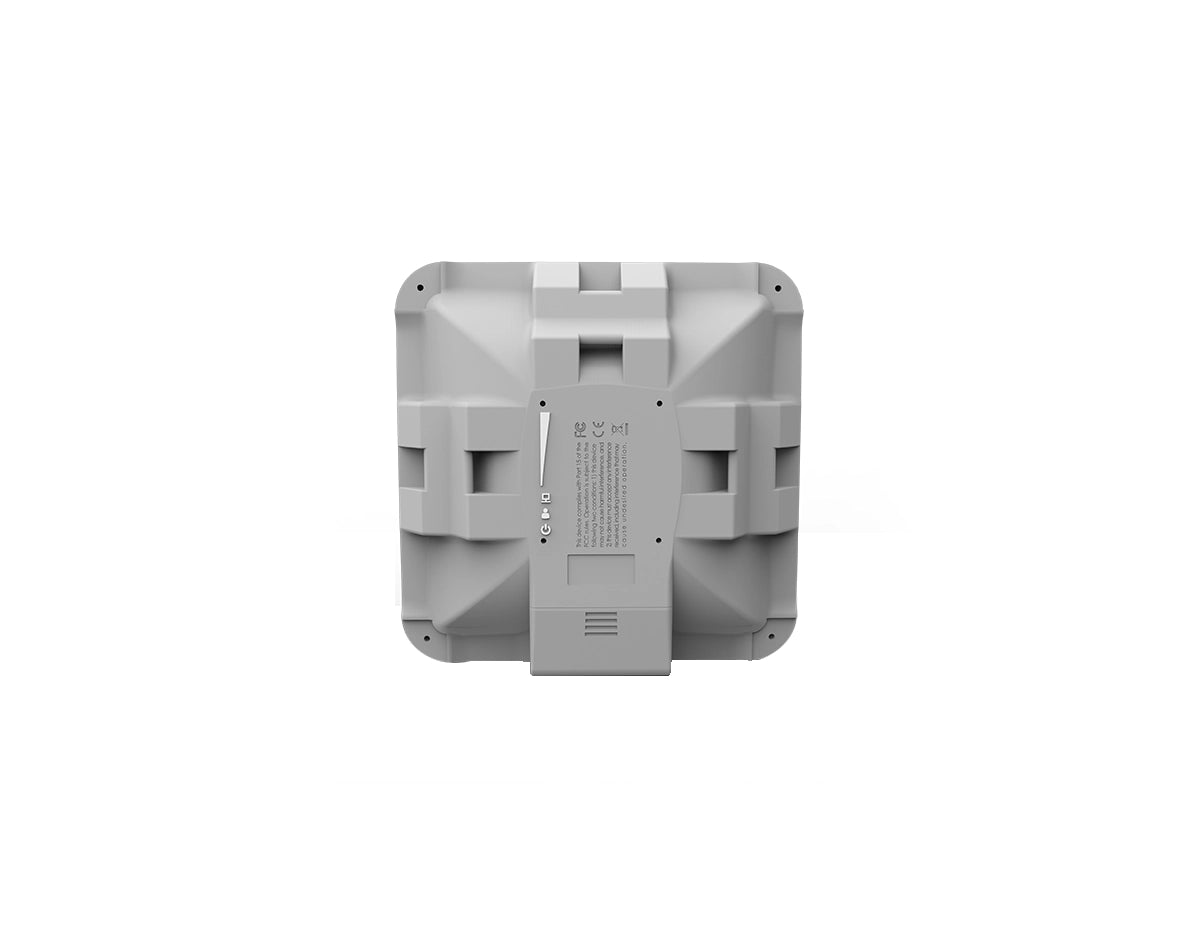

MikroTik RBSXTsq5nD-US

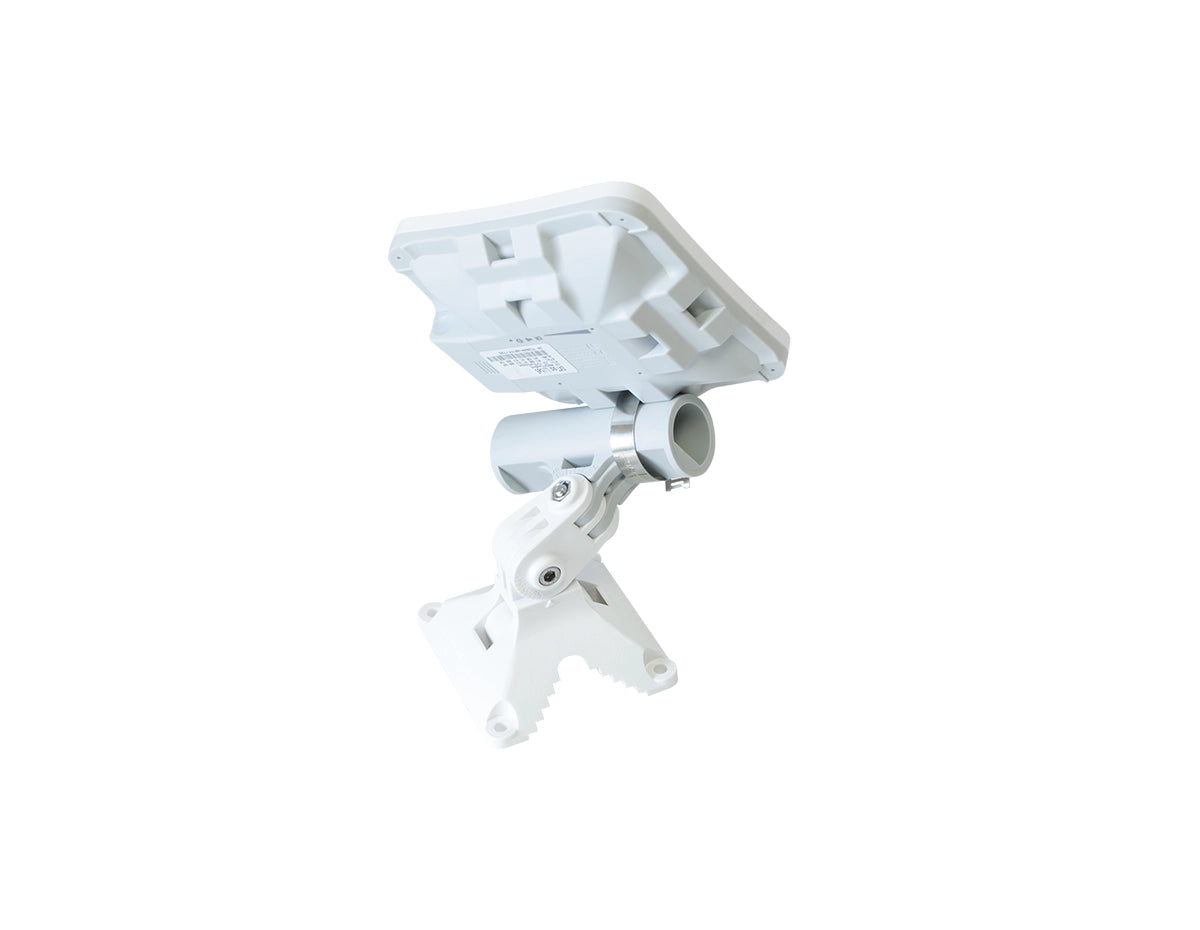

The RBSXTsq5nD-US is a small and lightweight outdoor wireless device that comes with a built-in antenna. It is suitable for establishing point-to-point connections spanning up to 12 kilometers or for use as a Customer Premises Equipment (CPE) unit. The device is designed to be compact, weather-resistant, and easy to install. It can be mounted on both horizontal and vertical poles and masts. For precise alignment, the separately available QuickMount Pro can be used, allowing for adjustment at any angle. The SXTsq Lite5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.
Quick Specs:
- 1x 10/100 Ethernet Port
- PoE-in: 802.3af/at
- QCA9533,1 core, 650 MHz CPU
- 64 MB RAM
Please see the related tabs for the RBSXTsq5nD-US datasheet and compatible accessories.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | MikroTik SXTsq Lite5 RBSXTSQ5ND |
| Description | Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone |
| Product Family | SXT Series |
| Product Type | Access Point |
| 10/100 Ethernet ports | 1 |
| Dimensions | 129 x 129 x 34mm |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Specifications
| Specifications | RBSXTSQ2ND |
| Memory | 64 MB |
| Flash Storage size | 16 MB |
| CPU | AR9344 600 MHz |
| CPU core count | 1 |
| OS | RouterOS level 3 license |
| Wireless capabilities | |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
| Wireless specifications | |
| 5 GHz | |
| 6MBit/s | Transmit (dBm): 25 Receive Sensitivity: -96 |
| 54MBit/s | Transmit (dBm): 20 Receive Sensitivity: -80 |
| MCS0 | Transmit (dBm): 25 Receive Sensitivity: -96 |
| MCS7 | Transmit (dBm): 19 Receive Sensitivity: -75 |
| MTBF | Approximately 100.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Accessories
|
24V 0.38A power adapter
|
| Metal ring (one) |
| PoE injector |
