Call for Price
High-density 2.5 Gigabit Ethernet connectivity with 20 ports, 2 x 40 Gigabit QSFP+ , 128 MB DDR2
Description

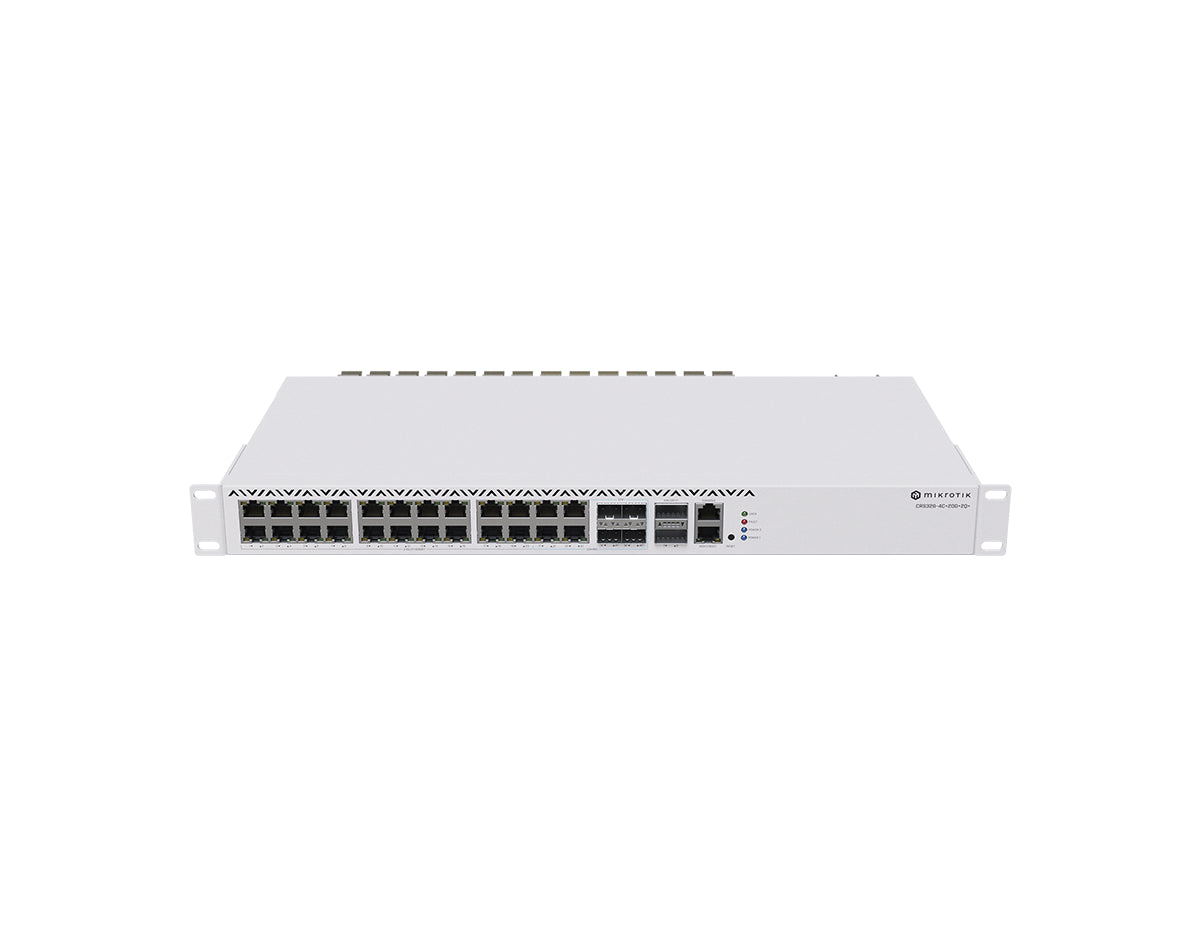

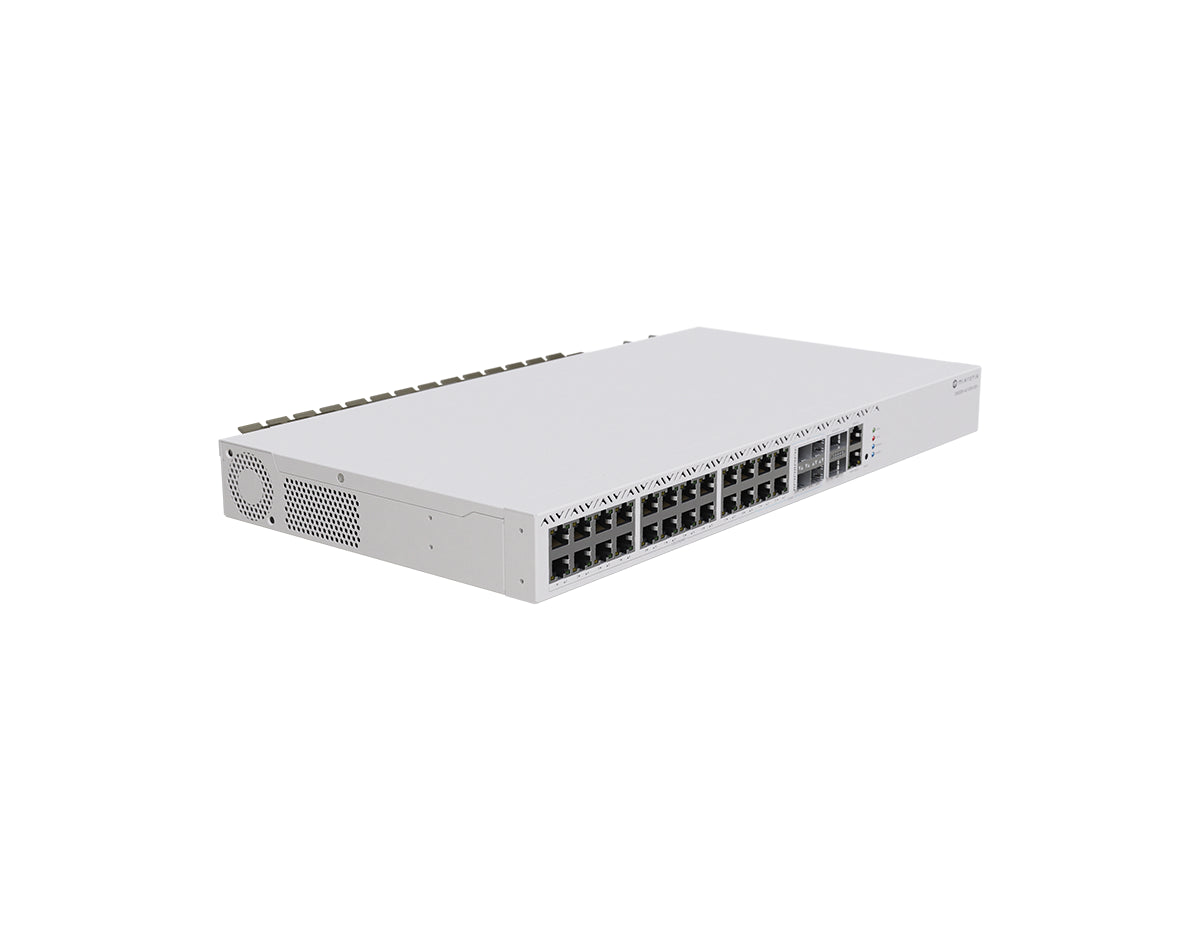

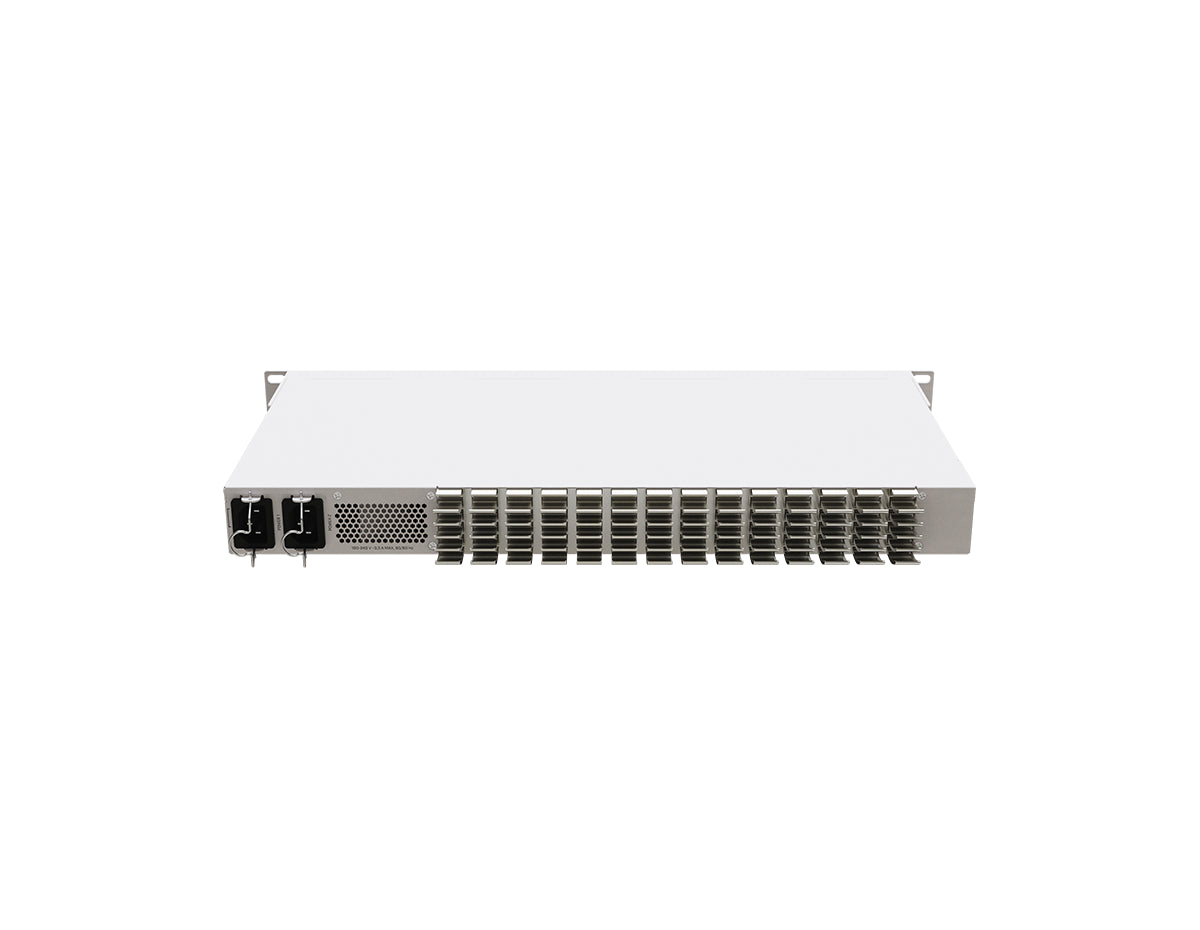

CRS326-4C+20G+2Q+RM Switch
The CRS326-4C+20G+2Q+RM is a high-density, enterprise-level switch designed for modern offices, studios, and professional environments that demand fast and reliable 2.5 Gigabit Ethernet connectivity. With an impressive port density, this switch offers exceptional flexibility with its combo ports and 40 Gbps QSFP+ cages, making it a perfect solution for diverse networking needs.
Product Highlights
- High-density 2.5 Gigabit Ethernet connectivity with 20 ports
- 4 combo ports, usable as additional 2.5 Gigabit Ethernet ports or 10G SFP+ interfaces
- 2 x 40 Gigabit QSFP+ cages for ultra-fast fiber connectivity
- Powered by the robust Marvell Prestera switch-chip with dedicated CPU
- Supports VLANs, Jumbo frames, link aggregation, ACL rules, and Layer3 routing
- Dual-redundant power supplies for reliability
- Integrated 100 Mbps Ethernet port for management
- Comes with all necessary rackmount hardware for easy installation
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | CRS326-4C+20G+2Q+RM |
| CPU | QCA9531 650 MHz, MIPSBE architecture |
| CPU Core Count | 1 |
| RAM | 128 MB DDR2 |
| Storage | 32 MB NAND |
| Ethernet Ports | 1 x 100M, 20 x 2.5G Ethernet ports |
| QSFP+ Ports | 2 x 40G QSFP+ |
| Combo Ports | 4 x 10G Ethernet/SFP+ |
| Operating System | RouterOS v7, License level 6 |
| Switch Chip Model | 98DX8332 |
| Dimensions | 443 x 258 x 44 mm |
| Operating Temperature | -20°C to +60°C |
| Powering | 2 x AC inputs, 100-240V, Max power consumption 70W |
| Included Parts | 2 x Power cords, Rackmount ears, Fastening set |
Properties
| Details | |
| Product code | CRS326-4C+20G+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | 98DX8332 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Specifications
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 70 W |
| Max power consumption without attachments | 51 W |
| Cooling type | 2 fans |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Number of 2.5G Ethernet ports | 20 |
| Number of Combo 10G Ethernet/ SFP+ ports | 4* (2.5G ETH/10G SFP+) |
| Fiber | |
| Number of 40G QSFP+ ports | 2 |
| Peripherals | |
| Serial console port | RJ45 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Yes |
Accessories
| Included parts |
| 2x IEC cords |
| Rackmount ears |
| Screw and feet kit (K10) |
