Description

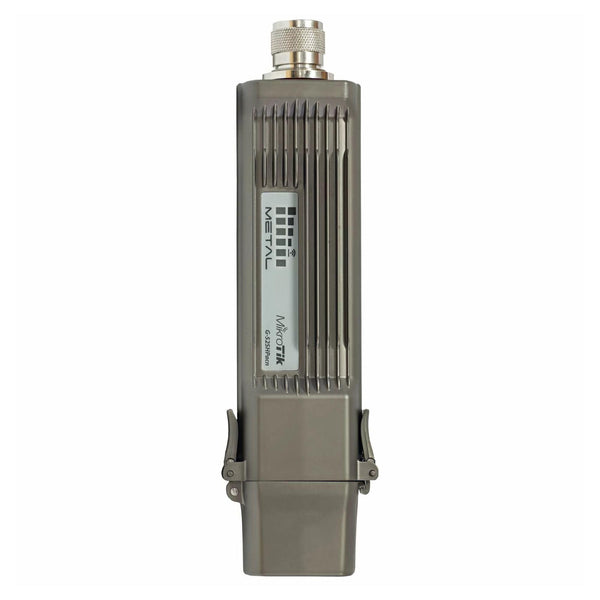

The MikroTik Metal 52 AC is a durable device designed for industrial use. It comes in a sturdy, fully enclosed metal case with an IP55 protection rating. The device is built upon the RouterBOARD platform, a specialized router unit. It operates on RouterOS, the proprietary operating system developed by MikroTik. RouterOS enables smooth routing and network management, providing a range of features such as routing, firewall configuration, bandwidth control, and wireless connectivity. The Metal 52 AC can function as an AP, Backbone device, or CPE, showcasing its versatility.
Quick Specs:
- QCA9556,1 core, 720MHz CPU
- 64MB RAM
- 1x 10/100/1000 Ethernet Port
- IP55
Please see the related tabs for the RBMetalG-52SHPacn-US datasheet and compatible accessories.
Properties
| Properties | MikroTik RBMetalG-52SHPacn-US Access Point |
| Description | The MikroTik RBMetalG-52SHPacn-US is a rugged outdoor access point with dual-band 2.4 GHz and 5 GHz wireless support. It’s designed for high-performance wireless networks, featuring a sturdy metal enclosure and a high-gain antenna for extended coverage. |
| Product Family | MikroTik Metal Series Access Point |
| Product Type | Access Point |
| Key Features | • Outdoor wireless access point • Dual-band 2.4 GHz and 5 GHz wireless support • Rugged metal enclosure for durability • High-gain antenna for extended coverage • Ideal for high-performance wireless networks in outdoor environments |
Specifications
| Specifications | MikroTik RBMetalG-52SHPacn-US Access Point |
| Product code | RBMetalG-52SHPacn-US |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 215x60x38mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Wireless specifications | |
| Wireless 2.4 GHz/5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz/5 GHz number of chains | 1 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/n/ac, 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz/5 GHz | 6 |
| Wireless 2.4 GHz/5 GHz chip model | QCA9889 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 5 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP55 |
| Wireless specifications (5 GHz) | |
| 6MBit/s | Transmit (dBm): 31 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 27 Receive Sensitivity: -78 |
| MCS0 | Transmit (dBm): 30 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 26 Receive Sensitivity: -74 |
| MCS9 | Transmit (dBm): 22 Receive Sensitivity: -69 |
| Wireless specifications (2.4 GHz) | |
| 1MBit/s | Transmit (dBm): 31 Receive Sensitivity: -97 |
| 11MBit/s | Transmit (dBm): 31 Receive Sensitivity: -91 |
| 6MBit/s | Transmit (dBm): 31 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 28 Receive Sensitivity: -77 |
| MCS0 | Transmit (dBm): 31 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 27 Receive Sensitivity: -72 |
