Call for Price
Wi-Fi 6 certified, supporting 802.11ax on both 2.4-GHz and 5-GHz bands, Up to four Wi-Fi radios
Description

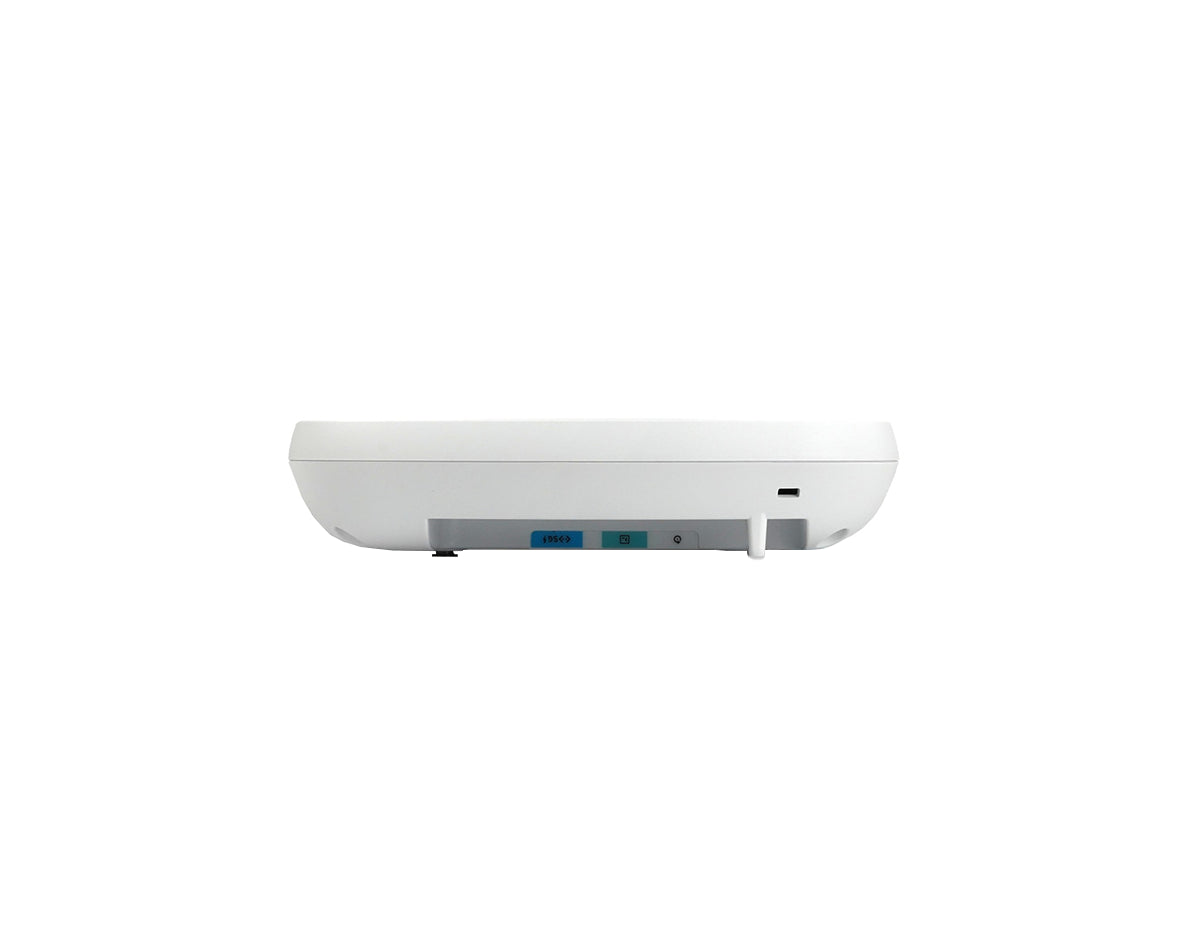

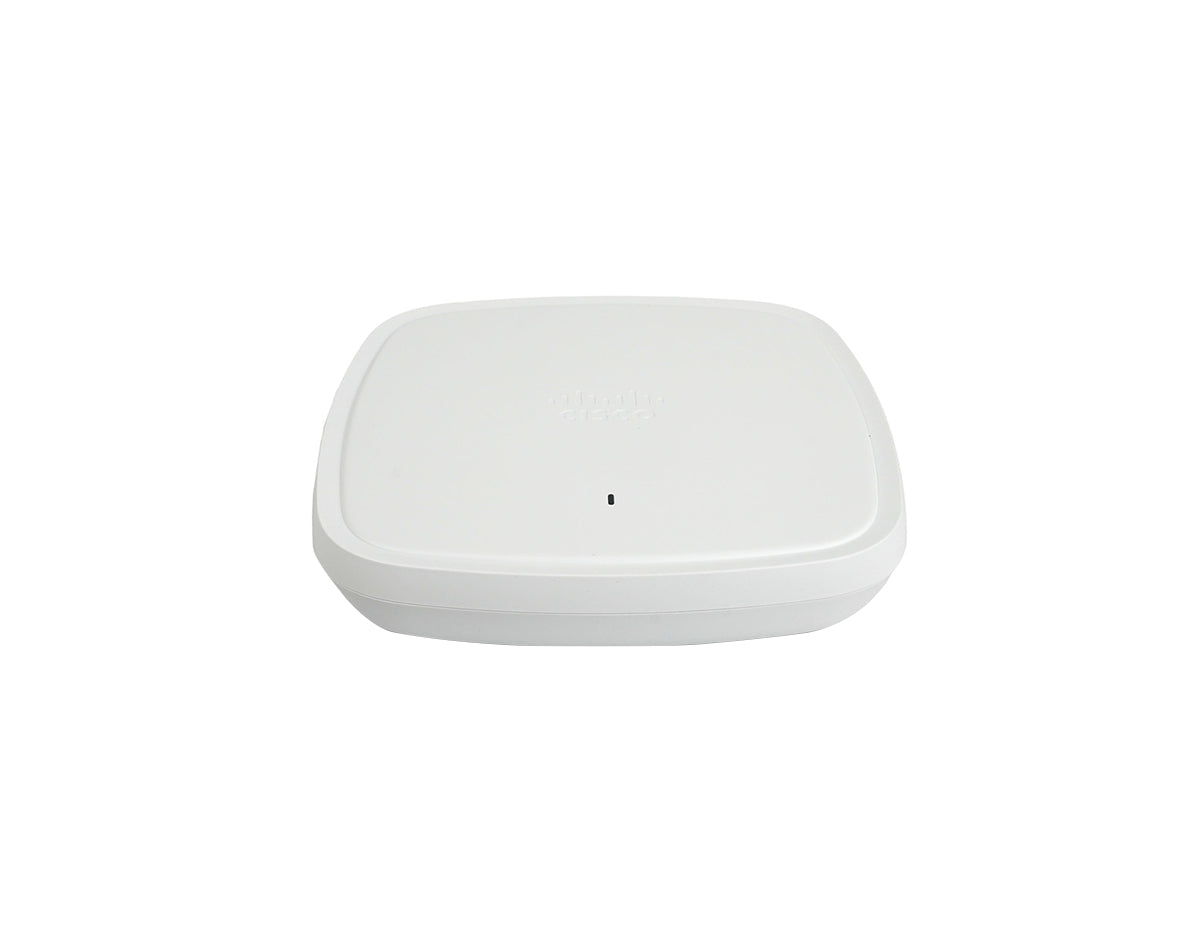

Cisco Catalyst C9130AXI-B Access Point
The Cisco Catalyst C9130AXI-B Access Point is part of the next generation of enterprise access points, offering resilience, security, and intelligence. Equipped with internal antennas, this model supports Wi-Fi 6 and features 4×4:4 MU-MIMO, making it an ideal choice for high-performance wireless connectivity in the B Domain.
Quick Specs:
- Wi-Fi 6 certified, supporting 802.11ax on both 2.4-GHz and 5-GHz bands
- Up to four Wi-Fi radios: 5GHz flexible radio (single 8×8 or dual 4×4), 2.4GHz (4×4) and Cisco RF ASIC
- OFDMA and MU-MIMO
- Multigigabit support
- Internal antennas
- IoT ready (BLE, other 802.15.4 protocols like Zigbee, supported in future software releases)
- Supports Cisco 3500, 5520, 8540, and 9800 series Wireless Controllers
- PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
- 802.11 Dynamic Frequency Selection (DFS) and Cyclic Shift Diversity (CSD) support
- WPA3 support
Please see the related tabs for the C9130AXI-B datasheet and compatible accessories.
Properties
| Product Name | Cisco Catalyst 9130AXI-B |
| Description | High-performance Wi-Fi 6 access point featuring 8×8 MU-MIMO, ideal for enterprise networks requiring reliable, high-density wireless connectivity. |
| Product Type | Access Point |
| Wi-Fi Standards | 802.11ax (Wi-Fi 6), 802.11ac, 802.11n, 802.11a/g |
| Bands Supported | 2.4 GHz and 5 GHz |
| Antennas | Internal, 4×4 MIMO on 2.4 GHz and 8×8 MIMO on 5 GHz |

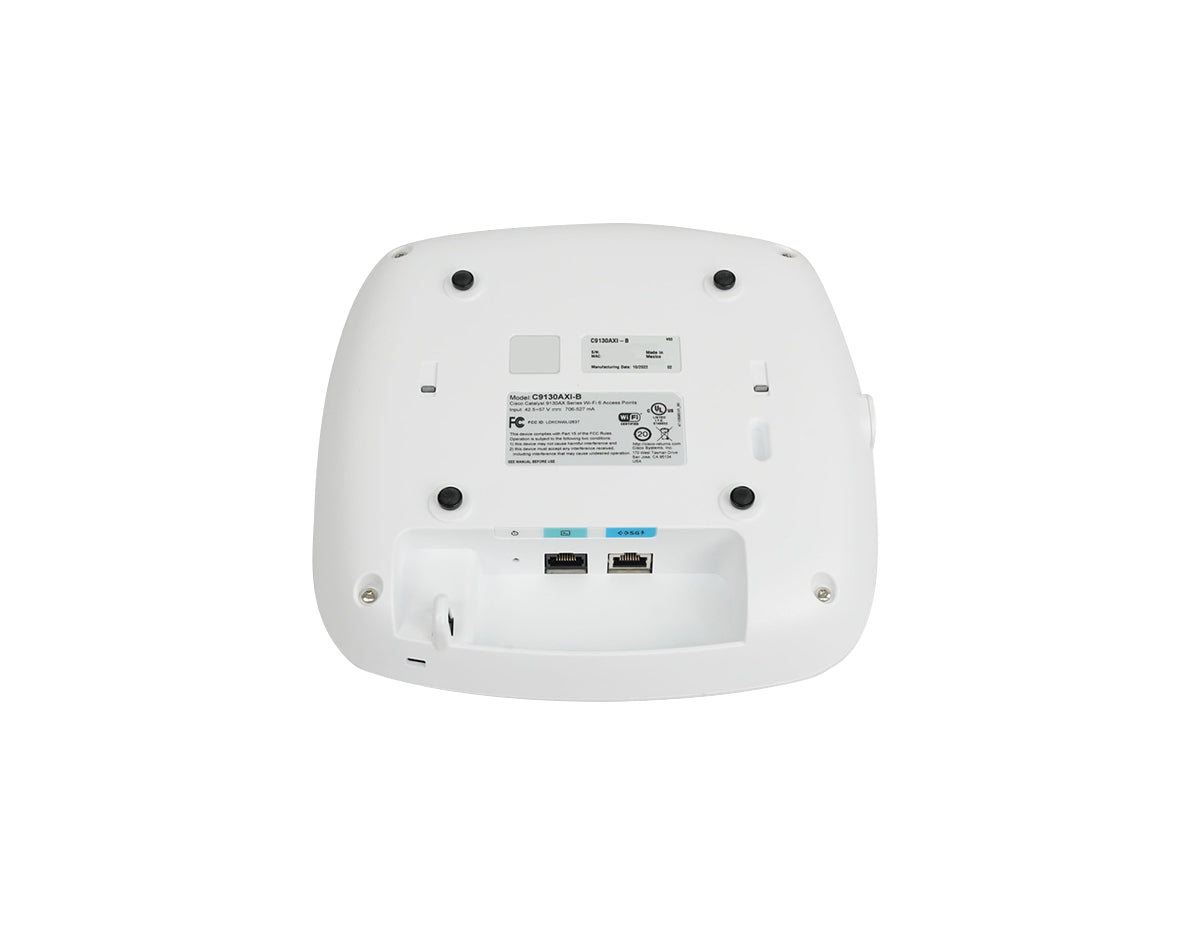

| Ethernet Ports | 1x Multigigabit Ethernet (up to 5 Gbps), 1x RJ-45 console |
| USB Port | 1x USB 2.0 |
| Operating Temperature | 0°C to 50°C |
| Weight | 1.36 kg |
Specifications
| Certifications | CE, FCC, RoHS compliant |
| Environmental Safety | Uses low-halogen components and energy-efficient design |
| Memory | 2048 MB DRAM, 1024 MB flash |
| Data Rate | Up to 10 Gbps (5 GHz) |
| Mounting | Wall or ceiling mountable |
| Power Supply | 802.3at PoE+, 802.3bt Cisco UPOE |
| Management Features | Supports Cisco DNA, controller-based or standalone operation |
| Security Features | WPA3, AES encryption, secure boot |
| Dimensions | 22.6 cm x 22.6 cm x 4.8 cm |
| LED Indicators | Status LEDs for operation and connectivity |
