Call for Price
Switch, PoE, 8 Ports
Description

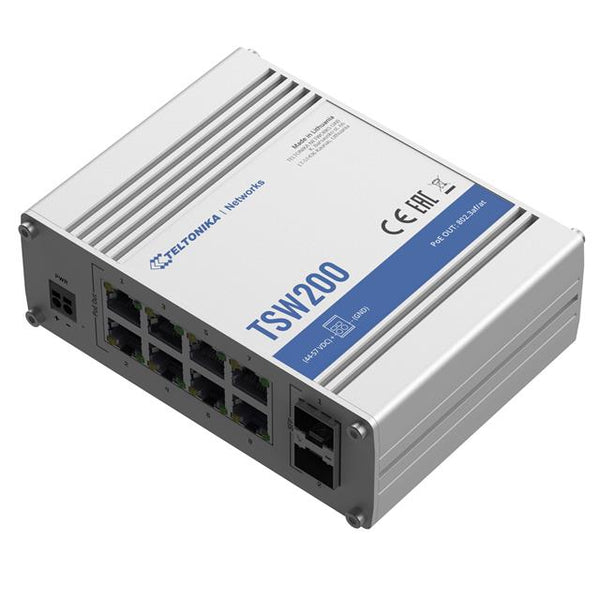

TELTONIKA TSW200 PoE+ Industrial Switch with 8 Ports (TSW200000010)
The Teltonika TSW200 is an industrial-grade unmanaged switch featuring 8 Gigabit Ethernet ports with PoE+ support and 2 SFP ports for long-range fiber-optic communication. Each Ethernet port delivers up to 30W of power, adhering to IEEE 802.3af and 802.3at standards, allowing centralized power distribution to connected devices. With a non-blocking bandwidth of 20 Gbps and jumbo frame support up to 9216 bytes, the TSW200 ensures efficient data transmission. Its rugged aluminum housing and wide operating temperature range from -40°C to 75°C make it ideal for demanding industrial environments.
Key Features:
- 8 x Gigabit Ethernet ports with PoE+ (30W per port)
- 2 x SFP ports for fiber-optic communication
- Non-blocking bandwidth up to 20 Gbps
- Operating temperature: -40°C to 75°C
Properties
| Product Name | Teltonika TSW200 (SKU: TSW200000010) |
| Description | TSW200 is an industrial unmanaged switch featuring 8 Gigabit Ethernet ports with PoE+ support and 2 SFP ports, designed for reliable network connectivity and power distribution in industrial environments. |
| Brand | Teltonika Networks |
| Type | Unmanaged PoE+ Ethernet Switch |
| Product Category | Networking Modules |
| Ethernet Ports | 8 x RJ45 ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards, supporting auto MDI/MDIX crossover |
| SFP Ports | 2 x SFP ports for fiber optic communication |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Casing Material | Full aluminum housing |
| Certifications | CE, UKCA, CB, UCRF, EAC, RoHS, REACH, ANRT, RCM, GITEKI, FCC, IC, ANATEL, NOM, E-mark |
| Safety Standards | EN IEC 62368-1:2020+A11:2020 |
Specifications
| MAC Address Table Size | 2K entries |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet Buffer | 128 KB |
| Jumbo Frame Support | 9216 bytes |
| PoE Ports | Ports 1-8 |
| PoE Standards | IEEE 802.3af and IEEE 802.3at |
| PoE Max Power per Port | 30 W |
| Total PoE Power Budget | 240 W |
| Power Supply Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 7 – 57 VDC |
| Input Voltage for PoE | 44 – 57 VDC |
| Power Consumption | Idle: 1.81 W / Max (no PoE): 5.5 W / Max: 245.5 W |
| Mounting Options | DIN rail or wall mounting (additional kit needed), flat surface placement |
| LED Indicators | 1 x Power LED, 16 x LAN status LEDs, 2 x SFP status LEDs |
| Ingress Protection Rating | IP30 |
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 10% to 90% non-condensing |
