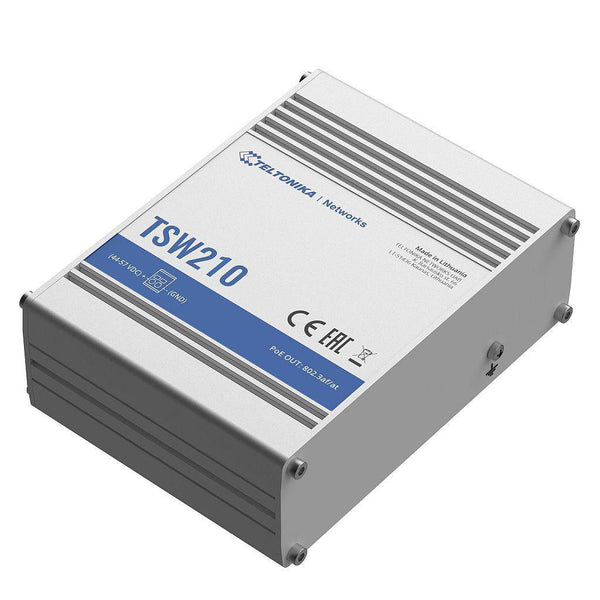

TELTONIKA TSW210 Unmanaged Industrial Switch with 8 Gigabit Ports (TSW210000000)
The Teltonika TSW210 is an industrial-grade unmanaged Ethernet switch with 8 Gigabit Ethernet ports and 2 SFP ports for fiber communication. It supports non-blocking bandwidth up to 20 Gbps and jumbo frame sizes up to 9216 bytes, ensuring high-performance connectivity. With its rugged aluminum housing and wide operating temperature range, the TSW210 is ideal for demanding industrial environments.
Key Features:
- 8 x Gigabit Ethernet ports and 2 x SFP ports
- Non-blocking bandwidth up to 20 Gbps
- Operating temperature: -40°C to 75°C
Properties
| Product Name | Teltonika TSW210 (SKU: TSW210000000) |
| Description | TSW210 is an industrial-grade unmanaged Ethernet switch featuring eight Gigabit Ethernet ports and two SFP ports, designed for reliable network connectivity in industrial environments. |
| Brand | Teltonika Networks |
| Type | Unmanaged Ethernet Switch |
| Product Category | Networking Modules |
| Ethernet Ports | 8 x RJ45 ports, 10/100/1000 Mbps, compliant with IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az standards, supporting auto MDI/MDIX crossover |
| SFP Ports | 2 x SFP ports for long-range fiber-optic communication |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 500 g |
| Casing Material | Full aluminum housing |
| Certifications | CE, REACH, RoHS, WEEE, UKCA, FCC |
| Safety Standards | EN IEC 62368-1:2020+A11:2020 |
Specifications
| MAC Address Table Size | 2K entries |
| Bandwidth (Non-blocking) | 20 Gbps |
| Jumbo Frame Support | 9216 bytes |
| Power Supply | 2-pin industrial DC power socket |
| Input Voltage Range | 9 – 30 VDC |
| Power Consumption | Idle: 3.2 W / Max: 6.4 W |
| Mounting Options | DIN rail or surface mounting |
| LED Indicators | 1 x Power LED, 8 x Ethernet link/activity LEDs, 2 x SFP status LEDs |
| Ingress Protection Rating | IP30 |
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 10% to 90% non-condensing |
