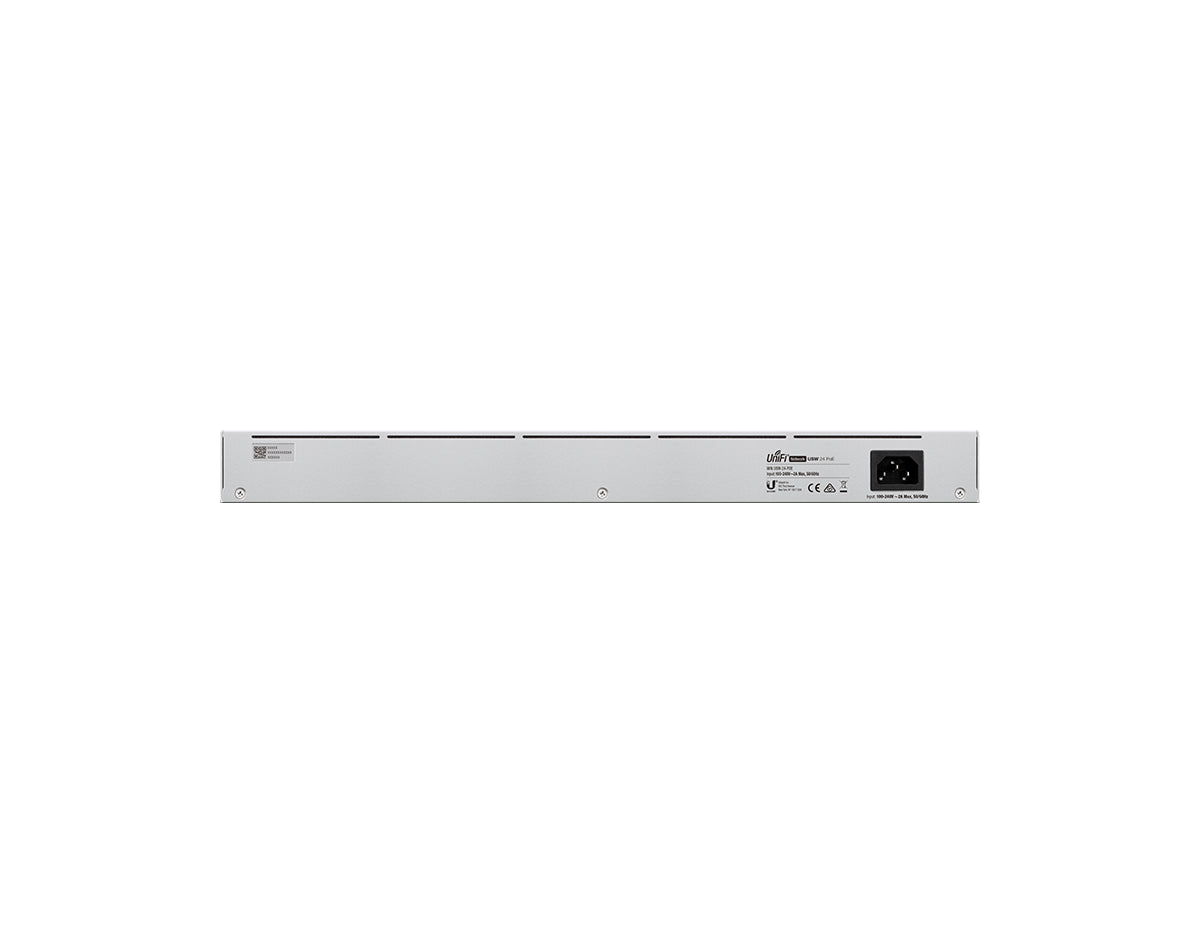

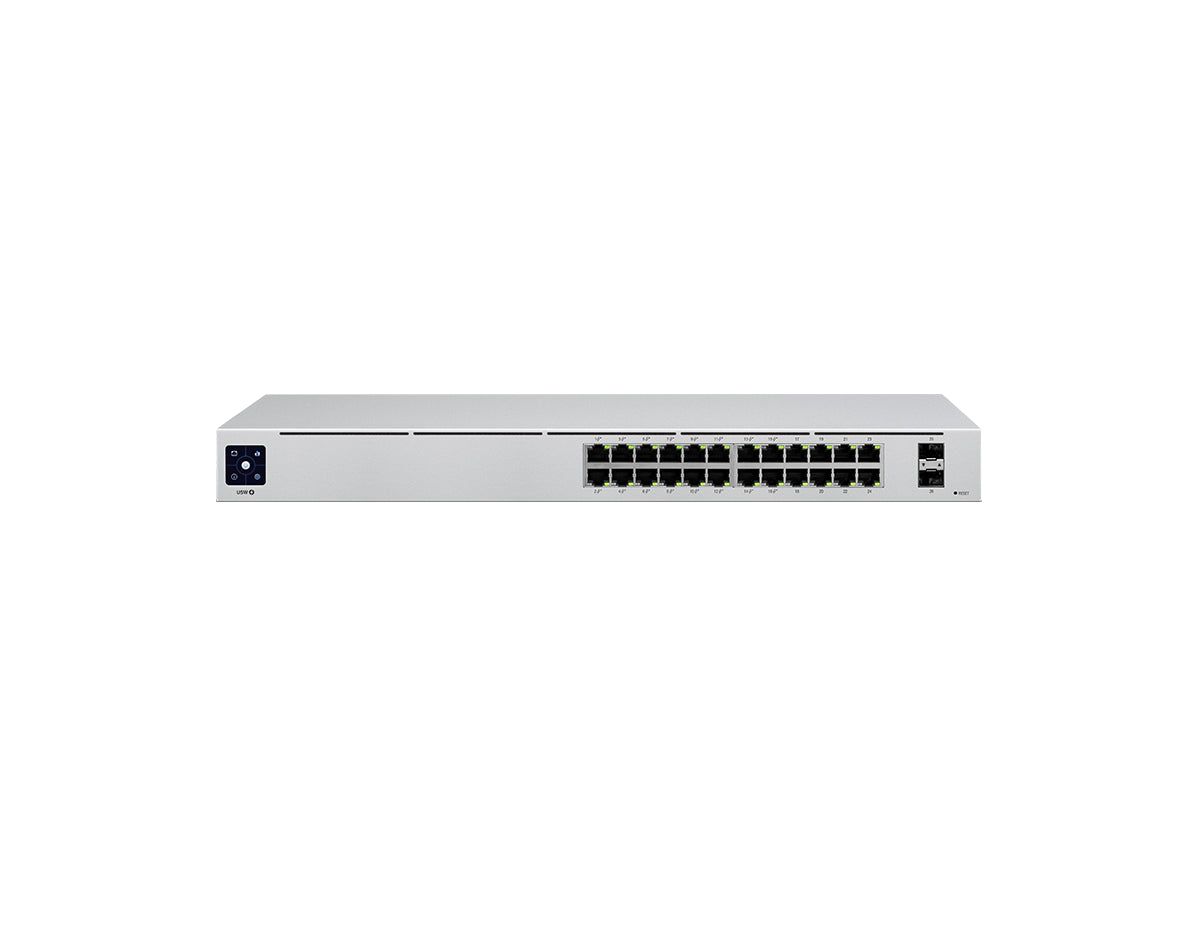

Ubiquiti USW-PRO-24 Switch
The USW Pro 24, also known as the Switch Pro 24, is a fully managed switch equipped with 24 GbE RJ45 ports and 2 10G SFP+ ports. It offers a comprehensive range of Layer 2 features and advanced Layer 3 tools, including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 is well-suited for use as an aggregation and access layer switch within a UniFi system. It incorporates innovative, nearly silent cooling technology and SmartPower RPS (USP RPS) power redundancy. Additionally, the switch can be remotely monitored and configured using the UniFi Network web application and mobile app, which offer powerful and user-friendly interfaces.
Quick Specs:
- 24 GbE RJ45 Ports
- 2x 1/10 Gbps SFP+ Ports
- Non-blocking throughput: 44 Gbps
- Switching capacity: 88 Gbps
Please see the related tabs for the USW-PRO-24 datasheet and compatible accessories.
Properties
Specifications
| Specifications | USW-PRO-24 |
| Mechanical | |
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7″) |
| Weight | Without mounting brackets: 3.5 kg (7.7 lb) With mounting brackets: 3.6 kg (8 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Managementinterface | EthernetIn-band |
| Networking interface | (24) GbE RJ45 ports (2) 1/10G SFP+ ports |
| Total non-blocking throughput | 44 Gbps |
| Switching capacity | 88 Gbps |
| Forwarding rate | 65.472 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input 11.5V DC, 2.61A |
| Power supply | AC/DC, internal, 36W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3″ touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | (-5 to 45° C) (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifcations | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP+ | Speed/link/activity |
| RPS | Status |
