Call for Price
Description

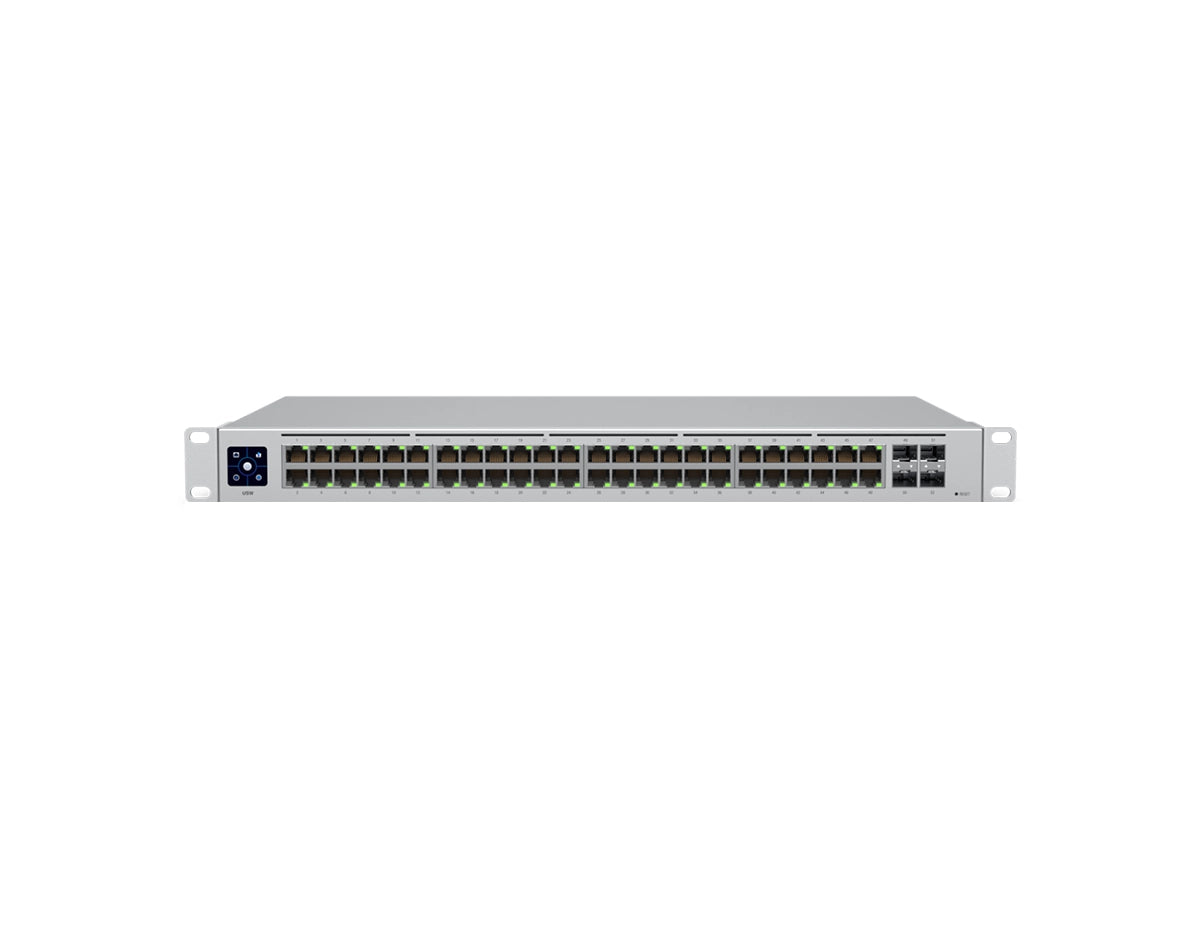

Ubiquiti USW-48 Switch
The USW-48 is equipped with a comprehensive range of Layer 2 functionalities and operates with fanless, noiseless cooling, making it suitable for deployment as an access layer switch. The UniFi Network Application and mobile app enable administrators to configure and monitor nearly all switch features conveniently through an intuitive graphical user interface accessible from any location. Additionally, the switch provides a wide array of Layer 2 switching protocols, including port-specific operation modes such as switching, mirroring, or aggregation.
Quick Specs:
- 48x 10/100/1000 Mbps Ethernet RJ45 Ports
- 4x 1G SFP Ports
- Layer3 switching features
- Non-blocking throughput: 52 Gbps
Please see the related tabs for the USW-48 datasheet and compatible accessories.
Properties
| Properties | UniFi Switch 48 – USW-48 |
| Description | The USW-48 is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports and 4 SFP ports |
| Product Family | Ubiquiti UniFi Switch |
| Product Type | Switch |
| Features | The USW-48 is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports and 4 SFP ports, providing 1 Gigabit links Fiber uplink options It features a 1.3″ touch LCM A fanless design |
Specifications
| Spesifications | UniFi Switch 48 – USW-48 |
| Mechanical | |
| Dimensions | 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″) |
| Weight | Without Mount: 3.9 kg (8.6 lb) With Mount: 3.99 kg (8.8 lb) |
| Enclosure Characteristics | SGCC Steel |
| Hardware | |
| Total Non-Blocking Line Rate | 52 Gbps |
| Max. Power Consumption | 40W |
| Forwarding Rate | 77.376 Mpps |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| Supported Voltage Range | 100 – 240VAC |
| Networking Interfaces | (48) 10/100/1000 Mbps Ethernet RJ45 Ports (4) 1 Gbps SFP Ports |
| ManagementInterface | EthernetIn-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| Operating Temperature | 15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| SFP | Green: 1G |
