Call for Price
Indoor 5 MP dome with IR and deep learning, Excellent image quality in 5 MP, Lightfinder 2.0, Forensic WDR, and OptimizedIR, Analytics with deep learning, Audio and I/O connectivity, Built-in cybersecurity features
Description

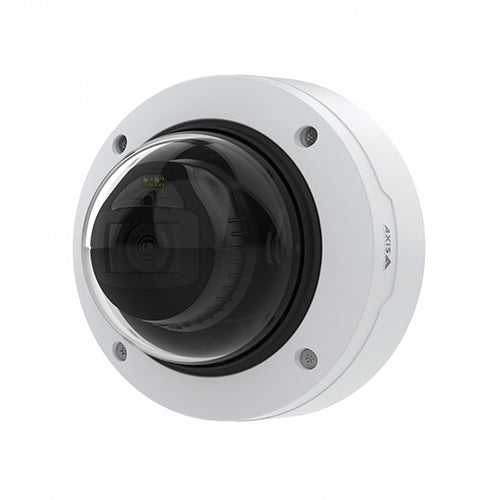

AXIS P3267-LV Dome Camera (02329-001)
The AXIS P3267-LV camera offers exceptional image quality and forensic details with its 5 MP resolution. It features AXIS Zipstream technology that supports H.264 and H.265, significantly reducing bandwidth and storage requirements while maintaining image quality. The P3267-LV camera analytics are powered by ARTPEC-8, the latest Axis system-on-chip, and include a deep learning processing unit (DLPU) for advanced analysis.
Quick Specs:
- Excellent image quality in 5MP
- Analytics with deep learning
- Audio and I/O connectivity
- Built-in cybersecurity features
Please see the related tabs for the 02329-001 datasheet and compatible accessories.
Properties
| Properties | AXIS P3267-LV Dome Camera |
| Description | The AXIS P3267-LV Dome Camera is a powerful indoor 5 MP dome with IR and deep learning. Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, it ensures excellent image quality in any lighting. This camera supports deep learning analytics, audio and I/O connectivity, and comes with built-in cybersecurity for enhanced protection. |
| Product Family | AXIS P3267-LV Dome Camera |
| Product Type | Camera |
Specifications
| Specifications | AXIS P3267-LV Dome Camera |
| Camera | |
| Image sensor | 1/2.7” progressive scan RGB CMOS |
| Lens | Varifocal, 3–8 mm, F1.3 |
| Horizontal field of view: 104°–40° | |
| Vertical field of view: 74°–29° | |
| Minimum focus distance: 1 m (3.28 ft) | |
| IR corrected, remote zoom and focus, P-Iris control | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | With Forensic WDR and Lightfinder 2.0: |
| Color: 0.13 lux at 50 IRE, F1.3 | |
| B/W: 0 lux at 50 IRE, F1.3 | |
| Shutter speed | 1/33500 s to 1/5 s |
| Camera angle adjustment | Pan ±190° |
| Tilt -10 to +80° | |
| Rotation ±190° | |
| System on chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | 2048 MB RAM, 8192 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 2592×1944 to 160×90 |
| Frame rate | 25/30 fps with power line frequency 50/60 Hz |
| Video streaming | Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Video streaming indicator | |
| Multi-view streaming | Up to 2 individually cropped-out view areas in full frame rate |
| Image settings | Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask |
| Pan/Tilt/Zoom | Digital PTZ, preset positions |
| Audio | |
| Audio streaming | Audio in, simplex, two-way audio via edge-to-edge technology |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio output/output | External microphone input, line input, digital input with ring |
| power, automatic gain control, network speaker pairing | |
| Network | |
| Security | Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T, specification at onvif.org | |
| Support for Session Initiation Protocol (SIP) for integration with | |
| Voice over IP (VoIP) systems, peer to peer or integrated with | |
| SIP/PBX. | |
| Onscreen controls | Day/night shift |
| Defogging | |
| Wide dynamic range | |
| Video streaming indicator | |
| IR illumination | |
| Event conditions | Analytics, external input, supervised external input, virtual inputs |
| through API | |
| Call: state, state change | |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, within | |
| operating temperature, IP address removed, new IP address, | |
| network lost, system ready, ring power overcurrent protection, | |
| live stream active, casing open | |
| Digital audio: digital signal contains Axis metadata, digital signal | |
| has invalid sample rate, digital signal missing, digital signal okay | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: digital input, manual trigger, virtual input | |
| MQTT: subcribe | |
| Scheduled and recurring: schedule | |
| Video: average bitrate degradation, day-night mode, live stream | |
| open, tampering | |
| Event actions | Overlay text, external output activation, zoom preset, day/night |
| mode, flash status LED, use lights, set defog mode, set WDR mode | |
| Calls: end SIP call, make SIP call, answer call | |
| I/O: toggle I/O once, toggle I/O while the rule is active | |
| MQTT: publish | |
| Notification: email, HTTP, HTTPS, TCP, and SNMP trap | |
| Pre- and post-alarm video or image buffering for recording or | |
| upload | |
| Record video: SD card and network share | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share, and email | |
| Data streaming | Event data |
| Built-in installation aids | Remote zoom and focus, straighten image, pixel counter, level grid |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Trigger conditions: line crossing, object in area | |
| Up to 10 scenarios | |
| Metadata visualized with color-coded bounding boxes | |
| Polygon include/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Applications | Included |
| AXIS Object Analytics | |
| AXIS Video Motion Detection, active tampering alarm, audio detection | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | IP52- and IK10-rated |
| Polycarbonate hard coated dome | |
| Polycarbonate casing | |
| Color: white NCS S 1002-B | |
| For repainting instructions, go to the product’s support | |
| page. For information go to | |
| axis.com | |
| Mounting | Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount |
| Sustainability | PVC free, BFR/CFR free |
| 7% bioplastics | |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 6.4 W, max 9.0 W | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA) | |
| Audio: 3.5 mm mic/line in | |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 40 m (130 ft) or more depending on the scene | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity 10–85% RH (non-condensing) | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) | |
| Approvals | EMC |
| EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, | |
| EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, | |
| KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, | |
| VCCI Class A | |
| Safety | |
| CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, | |
| IEC/EN 62471, IS 13252 | |
| Environment | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, | |
| IEC 60068-2-27, IEC 60068-2-78 | |
| IEC/EN 60529 IP52, IEC/EN 62262 IK10 | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Height: 107 mm (4.21 in) |
| ø 149 mm (5.87 in) | |
| Weight | 800 g (1.8 lb) |
| Included accessories | |
Accessories
| Optional accessories | • AXIS TP3201 Recessed Mount • AXIS TP3202 Recessed Mount • AXIS T94K01D Pendant Kit • AXIS T8355 Digital Microphone 3.5 mm • AXIS ACI Conduit Adapters • Smoked dome • Black casing |
