2 MP onboard surveillance, Compact, rugged design, Complies with EN50155, Lightfinder and Forensic WDR, Axis Zipstream technology, Traffic Light mode
Description

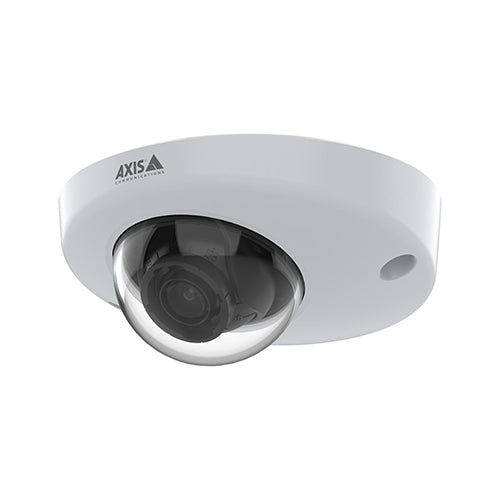

AXIS P3905-R MkIII M12 Bulk 10PCS is a bulk pack of 10x AXIS P3905-R MkIII cameras. It is a 1080p fixed dome onboard cameras with a M12 network connector on the pigtail. AXIS P3905-R MkIII is equipped with 3.6mm, F2.0 lens in a rugged IP66/67 casing. It comes with a lens tool. AXIS P3905-R MkIII is rollingstock compliant.
| Feature | AXIS P3905-R Mk III | AXIS P3925-LRE | AXIS P3925-R | AXIS P3935-LR |
|---|---|---|---|---|
| Max video resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| Horizontal field of view | 87.6 / 106.6 | 56 | 110 | 110 |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ | ✔ | ✔ |
| Ruggedized | ✔ | ✔ | ✔ | ✔ |
| Audio Support | – | – | ✔ | 1 |
| Alarm inputs/outputs | – | – | 1/1 | 1/1 |
| Built-in IR | – | ✔ | – | ✔ |
| Built-in microphone | – | – | – | 1 |
Properties
| Properties | AXIS P3905-R Mk III M12 Dome Camera |
| Description | The AXIS P3905-R Mk III Dome Camera is a rugged 2 MP onboard surveillance solution for vehicles, compliant with EN50155 and EN45545 standards. Its compact design withstands vibrations and extreme temperatures, and with AXIS TP3826-E housing, it can be externally mounted. Featuring Lightfinder, Forensic WDR, and traffic light mode, it excels in challenging lighting conditions. The camera’s compact, rugged design, compliance with EN50155, support for Zipstream, and optional M12 lenses for customizable monitoring make it an ideal choice for reliable onboard surveillance. |
| Product Family | AXIS P3905-R Mk III Dome Camera |
| Product Type | Camera |
Specifications
| Specifications | AXIS P3905-R Mk III M12 Dome Camera |
| Camera | |
| Image sensor | 1/2.9” Progressive scan RGB CMOS |
| Pixel size 2.8 µm | |
| Lens | 3.6 mm, F2.0 |
| Horizontal field of view: 88° | |
| Vertical field of view: 47° | |
| Minimum focus distance: 0.3 m (1 ft) | |
| M12 mount, fixed iris | |
| See Optional accessories for exchangeable lenses | |
| Minimum illumination | Color: 0.04 lux at 30 IRE F2.0 |
| Color: 0.13 lux at 50 IRE F2.0 | |
| Shutter speed | With WDR: 1/19000 s to 1/5 s |
| No WDR: 1/17000 s to 1/5 s | |
| Camera angle adjustment | Pan: ±30° |
| Tilt: 15-90° | |
| Rotation: ±175° | |
| System on chip (SoC) | |
| Model | S6LM55 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 16:9: 1920×1080 to 640X360 |
| 16:10: 1280×800 to 640×400 | |
| 4:3: 1280×960 to 320×240 | |
| Frame rate | H.264 and H.265: 25/30 fps (50/60 Hz) in all resolutions |
| Motion JPEG: 15 fps (50/60 Hz) in all resolutions | |
| Video streaming | Up to 4 unique and configurable video streams* Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264 and H.265 Video streaming indicator |
| *: We recommend a maximum of 3 unique video streams per camera or channel, for optimized user experience, network bandwidth, and storage utilization. A unique video stream can be served to many video clients in the network using multicast or unicast transport method via built-in stream reuse functionality | |
| WDR | Forensic WDR: Up to 120 dB depending on scene |
| Noise reduction | Spatial filter (2D noise reduction) |
| Temporal filter (3D noise reduction) | |
| Image settings | Compression, brightness, sharpness, contrast, white balance, |
| Forensic WDR, exposure control, exposure zones, fine tuning of | |
| behavior at low light, rotation: 0°, 90°, 180°, 270° including | |
| Corridor Format, dynamic overlay, 32 individual polygonal privacy | |
| mask, mirroring of images | |
| Scene profiles: forensic, vivid, traffic overview | |
| Image processing | Axis Zipstream, Forensic WDR, Lightfinder |
| Pan/Tilt/Zoom | Digital PTZ, preset positions, guard tour, control queue |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young (eay@cryptsoft.com) | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform (ACAP); specifications at | |
| axis.com/developer-community. ACAP includes Native SDK and | |
| Computer VisionSDK. | |
| AXIS Video Hosting System (AVHS) with One-Click Connection | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and | |
| ONVIF® Profile T, specification at onvif.org | |
| Video management systems | Compatible with AXIS Companion, AXIS Camera Station, video |
| management software from Axis’ Application Development | |
| Partners available at axis.com/vms | |
| Onscreen controls | Video streaming indicator |
| Wide dynamic range | |
| Privacy masks | |
| Event conditions | Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, IP address | |
| removed, network lost, new IP address, storage failure, system | |
| ready, within operating temperature | |
| Edge storage: recording ongoing, storage disruption | |
| I/O: manual trigger, virtual input | |
| MQTT subscribe | |
| Scheduled and recurring: scheduled event | |
| Video: average bitrate degradation, live stream open, tampering | |
| Event actions | Guard tours |
| Upload images or video clips: FTP, HTTP, HTTPS, SFTP, email and | |
| network share | |
| Notification: HTTP, HTTPS, TCP and email | |
| Overlay text | |
| Preset positions | |
| Record video: SD card and network share | |
| SNMP trap messages | |
| WDR mode | |
| MQTT publish | |
| Built-in installation aids | Pixel counter |
| Analytics | |
| Applications | Included |
| AXIS Loitering Guard, AXIS Video Motion Detection, audio | |
| detection, shock detection, advanced gatekeeper | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| Approvals | |
| Product markings | CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE |
| Supply chain | TAA compliant |
| EMC | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, |
| ECE R10 rev.06 (E approval), EN 50498, | |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A | |
| Canada: ICES-3(A)/NMB-3(A) | |
| Japan: VCCI Class A, | |
| Korea: KS C 9835, KS C 9832 Class A, | |
| USA: FCC Part 15 Subpart B Class A | |
| Rolling stock: EN 50121-3-2, EN 50121-3-4, IEC 62236-4 | |
| Safety | IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, UN ECE R118 EN 45545-2, NFPA 130* |
| *: ASTM E162 and the non-flaming parts of ASTM E662 | |
| Environment | IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts of |
| Parts of NEMA 250 Type 4X (ingress of water and gasket test), | |
| IEC/EN 62262 IK10, | |
| IEC 60721-3-5 Class 5M3 (vibration and shock), IEC 60068-2-1, | |
| IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, | |
| IEC 60068-2-78, IEC 60068–2–14 | |
| IEC/EN 61373 Category 1 Class B, EN 50155:2017 OT1/ST2 | |
| Network | NIST SP500-267 |
| Cybersecurity | |
| Edge security | Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization | |
| Code Flow for centralized ADFS account management, password | |
| protection, AES-XTS-Plain64 256bit SD card encryption | |
| Hardware: Axis Edge Vault cybersecurity platform | |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis | |
| device ID, secure keystore, signed video, secure boot, encrypted | |
| filesystem (AES-XTS-Plain64 256bit) | |
| Network security | Password protection, IP address filtering, HTTPS*1 encryption, IEEE 802.1x (EAP-TLS, PEAP-MSCHAPv2)*1 network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, firmware with Long Term Support (LTS) firmware*2 IEEE 802.1X (EAP-TLS)*1 , IEEE 802.1AR, HTTPS/HSTS*1 , TLS v1.2/v1.3*1 , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *1: ASTM E162 and the non-flaming parts of ASTM E662 | |
| *2: In the LTS track for firmware upgrades, improvements are focused on cybersecurity and stability. New features are available in the firmware from the Active track | |
| Documentation | AXIS Hardening Guide |
| AXIS Vulnerability Management Policy | |
| AXIS Security Development Model | |
| AXIS OS Software Bill of Material (SBOM) | |
| To download documents, go to axis.com/support/cybersecurity/resources | |
| To read more about Axis cybersecurity support, go to axis.com/cybersecurity | |
| General | |
| Casing | IP66/67-, Parts of NEMA 250 Type 4X- and IK10-rated aluminum |
| and polycarbonate casing | |
| Mounting | Inside vehicles and rolling stock |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1 |
| Typical 2.2 W, max 3.8 W | |
| Connectors | RJ45: male, 10BASE-T/100BASE-TX |
| M12: female, rugged, D-coded with rotatable coupling nut | |
| All connectors support PoE | |
| Storage | Support for microSD/microSDHC/microSDXC card with UHS |
| Speed Class U1 | |
| Support for recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (-30 °C to 55 °C (-22 °F to 131 °F) |
| Maximum (intermittent): 70 °C (158 °F) | |
| Humidity: 10-100% RH (condensing) | |
| Storage conditions | (-40 °C to 65 °C (-40 °F to 149 °F) |
| Dimensions | Height: 50 mm (1.97 in), ø 110 mm (4.33 in) |
| Weight | 241 g (0.53 lb) |
| Box content | Camera, Installation guide, Windows® decoder 1- |
Accessories
| Optional accessories | |
| Lenses | • Lens M12 2.1 mm, F2.2: horizontal field of view 145° • Lens M12 2.8 mm, F1.2: horizontal field of view 107° • Lens M12 6 mm, F1.6: horizontal field of view 51° • Lens M12 8 mm, F1.6: horizontal field of view 39° |
| Other | • AXIS T94D01S Mount Bracket • AXIS T94D02S Curved Mount Bracket • Network coupler IP66 • Network cable coupler indoor • TM3101 Pendant Wall Mount • AXIS TP3826-E housing • TP3827 Clear Dome Cover • TP3830 Top Black Cover For more accessories |
