Call for Price
13mm Lens with 28° Field of View
Description

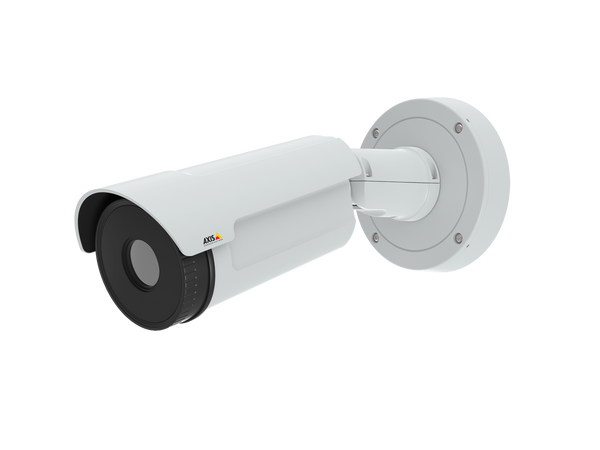

AXIS Q1941-E 13mm 30 FPS Thermal Network Camera
The AXIS Q1941-E 13mm Thermal Network Camera is an outdoor-ready bullet camera that offers thermal detection with outstanding image contrast for reliable detection and fast verification, even in the harshest weather conditions. With a thermal resolution of 384×288 and a 13mm lens providing a 28° horizontal field of view, this camera is designed for perimeter protection and long-range detection. The camera also features Axis Zipstream technology to lower bandwidth and storage requirements while preserving essential forensic details. With Electronic Image Stabilization (EIS) and a built-in window heater, the AXIS Q1941-E ensures smooth, uninterrupted surveillance in challenging environments.
Key Features:
- Thermal Resolution of 384×288: Provides clear and reliable detection in complete darkness and extreme weather conditions.
- 13mm Lens with 28° Field of View: Ideal for wide-area coverage and long-range detection.
- 30 FPS Video: High frame rate for smoother video and faster detection.
- Axis Zipstream Technology: Reduces bandwidth and storage needs while maintaining critical image quality.
- Electronic Image Stabilization (EIS): Reduces motion blur caused by vibrations, ensuring smooth video capture.
- Rugged Design: IP66/IP67- and IK10-rated for protection against dust, water, and impact, making it perfect for outdoor installations.
Technical Specifications:
- Image Sensor: Uncooled microbolometer, 384×288 resolution
- Lens: 13mm, F1.0, horizontal field of view: 28°
- Video Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles; Motion JPEG
- Frame Rate: Up to 30 fps
- Power: Power over Ethernet (PoE) IEEE 802.3af/at, max 11.8 W
- Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Dimensions: 344 x 146 mm (13.5 x 5.75 in)
- Weight: 2000 g (4.4 lb)
For more information about the AXIS Q1941-E 13mm 30 FPS Thermal Network Camera, visit the Axis product page.
This product has reached its end-of-life. The recommended replacement model is Q1951-E (02152-001)
Properties
| Product Name | AXIS Q1941-E 13mm 30 FPS Thermal Network Camera |
| Description | The AXIS Q1941-E 13mm is an outdoor-ready thermal network camera designed for reliable thermal detection and fast verification in challenging weather. With a 13mm lens and 28° field of view, it is ideal for perimeter protection and wide-area surveillance in low-visibility conditions. |
| Image Sensor | Uncooled microbolometer, thermal resolution of 384×288 |
| Lens | 13mm, F1.0 with a horizontal field of view of 28° |
| Frame Rate | Up to 30 FPS |
| Video Compression | H.264 (Baseline, Main, and High Profiles), Motion JPEG |
| Power Supply | Power over Ethernet (PoE) IEEE 802.3af/at, max 11.8 W |
| Dimensions | 344 mm x 146 mm (13.5 in x 5.75 in) |
| Weight | 2.0 kg (4.4 lb) |
| Mounting Options | Pole, wall, or corner mount with optional accessories |
| Usage | Optimized for perimeter protection, wide-area surveillance, and applications requiring reliable detection in darkness or adverse weather conditions |
| Durability | IP66/IP67 and IK10-rated for protection against dust, water, and impact, suitable for outdoor installations |
Specifications
| Thermal Resolution | 384×288 pixels |
| Field of View | 28° horizontal with 13mm lens |
| Electronic Image Stabilization | Integrated EIS to reduce vibration-induced motion blur |
| Bandwidth Optimization | Axis Zipstream technology to lower bandwidth and storage usage |
| Certifications | CE, FCC, UL, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), low-halogen design |
| EMC Compliance | Meets EN 55032, EN 55024, and FCC Part 15 standards |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 10% to 100% (condensing) |
| Ingress Protection | IP66/IP67-rated for dust and water resistance |
| Impact Protection | IK10-rated for impact and vandal protection |
| Power Consumption | Maximum 11.8W via PoE |
| Network Compatibility | Integrates with IT networks using open standards |
| Firmware Updates | Supports remote firmware updates for ongoing reliability and security |
| Reliability | Tested for continuous outdoor operation under extreme weather conditions |
| Monitoring and Diagnostics | Real-time monitoring and diagnostics available via Axis Camera Station |
| Security Features | HTTPS encryption, IP filtering, and secure boot to prevent unauthorized access |
| Additional Features | Built-in window heater for consistent operation in foggy or icy conditions |
