Description

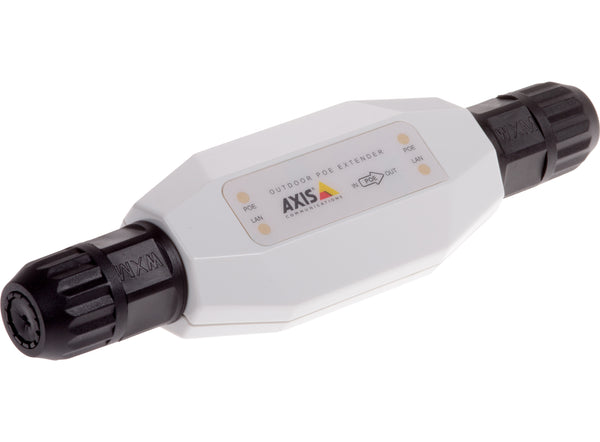

AXIS T8129-E Outdoor PoE Extender

The AXIS T8129-E Outdoor PoE Extender is a robust solution for extending network and Power over Ethernet (PoE) connections beyond the 100 m (328 ft) limit. This rugged, IP66/IP67-rated extender is designed for outdoor environments, offering reliable operation in extreme temperatures. With no additional power supply required, this extender allows you to connect Axis network devices over longer distances. It supports IEEE 802.3af, IEEE 802.3at, and high PoE 60 W, ensuring compatibility with a wide range of Axis devices. The plug-and-play installation makes it easy to deploy, and the full-rate network throughput is maintained over extended distances.

Key Features:

• Extends Ethernet and PoE Connections: Supports distances beyond the standard 100 m (328 ft) limit, enabling installations at greater distances.
• Rugged Outdoor Design: IP66/IP67-rated enclosure ensures protection against harsh weather and challenging temperatures.
• No Additional Power Supply: Automatically forwards in-line power to PoE and High PoE-enabled devices without the need for an external power source.
• Compatible with Multiple Standards: Supports IEEE 802.3af, IEEE 802.3at, and High PoE 60 W for flexibility in installation.
• Plug-and-Play Installation: Simple setup with automatic configuration of Ethernet ports for link speed, duplex, and crossover.

Technical Specifications:

• Data Rate: 10/100 Mbps half/full duplex
• Maximum Distance: Up to 200 m (656 ft) for IEEE 802.3at; Up to 300 m (984 ft) for IEEE 802.3af (using 2 units)
• Connectors: Shielded or unshielded RJ45, EIA 568A and 568B
• Power Consumption: Max 1.3 W
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Dimensions: 182.0 x 49.8 x 30.2 mm (7.17 x 1.96 x 1.19 in)
• Weight: 180 g (0.4 lbs)
• Protection Rating: IP66/IP67-rated for outdoor use

For more information about the AXIS T8129-E Outdoor PoE Extender, visit the Axis product page.
