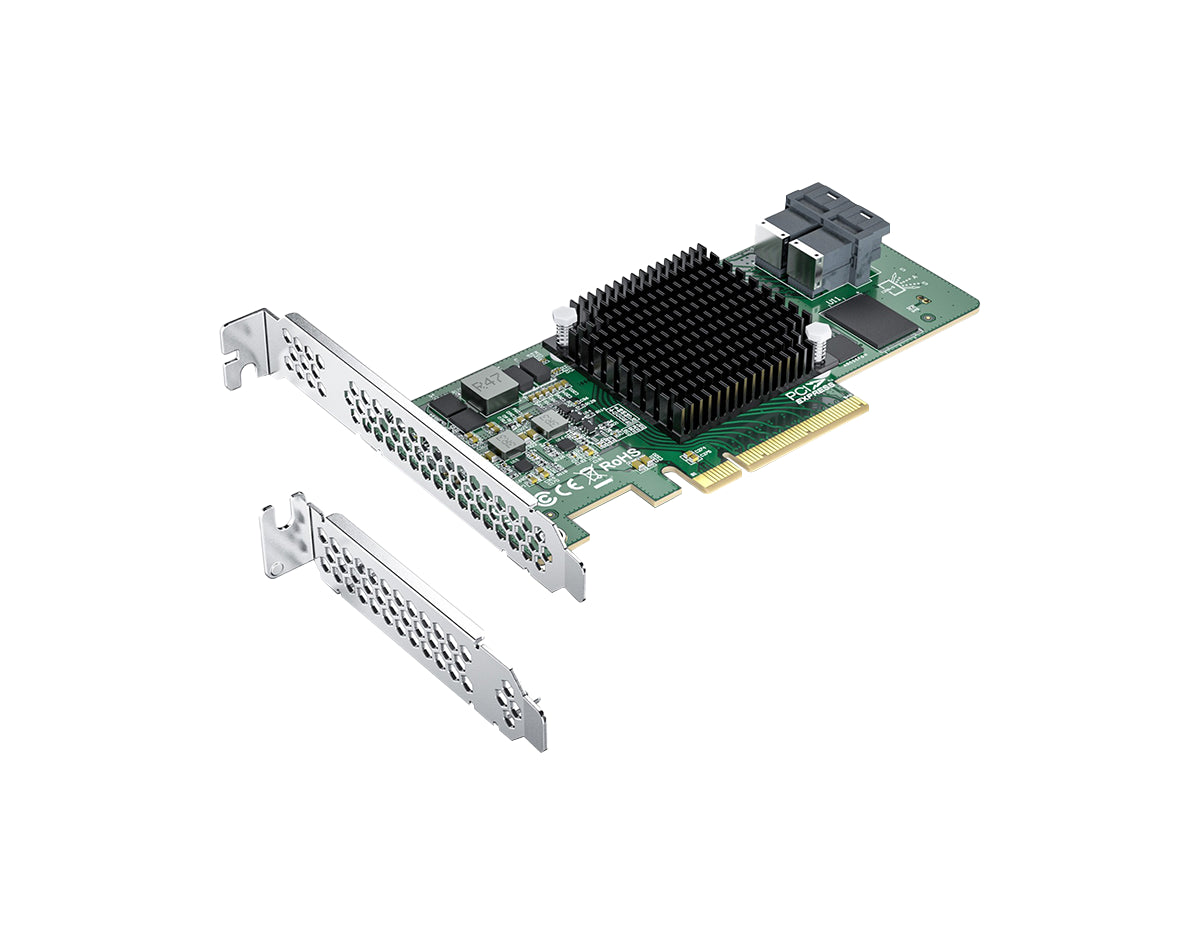

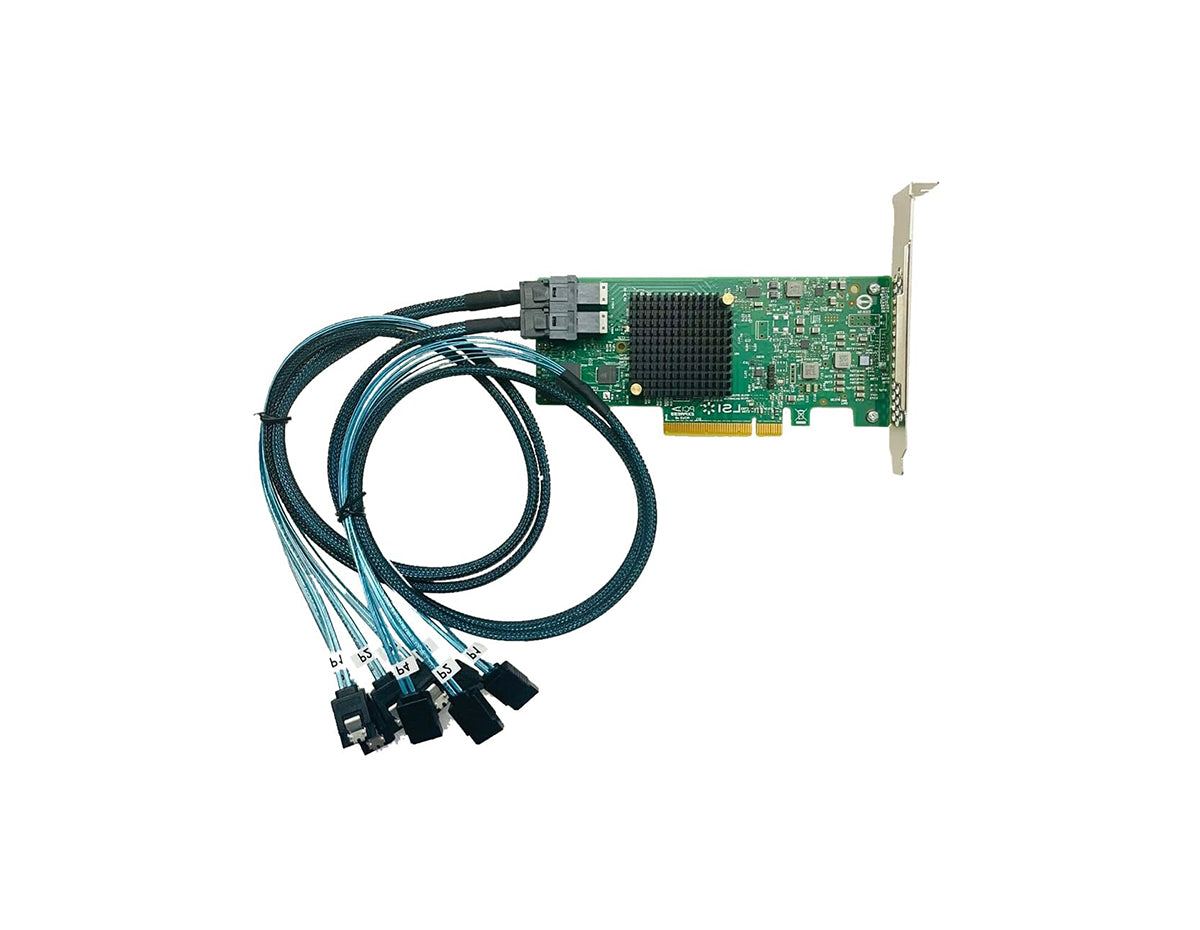

Broadcom 9300-8I Host Bus Adapter
The Broadcom 9300-8i is a high-capacity SAS/SATA RAID controller that offers dependable and expandable storage connectivity for enterprise-grade applications. Capable of accommodating up to eight SAS or SATA drives and achieving data transfer rates of up to 12Gb/s per port, the 9300-8i is engineered to address the needs of even the most data-intensive applications. This SAS/SATA RAID controller provides support for a range of RAID levels, including RAID 0, 1, 5, and 6, as well as RAID 10 and RAID 50, offering a variety of data protection options to cater to diverse application requirements.
Quick Specs:
- 8x Internal 12Gb/s SAS+SATA ports
- 8 lanes, PCI Express 3.0
- Low-profile form-factor design
- Two (x4) internal mini-SAS (SFF8643) connector
Please see the related tabs for the 9300-8i datasheet and compatible accessories.
Properties
| Product Name | Broadcom 9300-8i Host Bus Adapter |
| Product Description | High-performance SAS/SATA host bus adapter providing scalable storage connectivity for enterprise applications. |
| Compatibility | Supports Windows, Linux, and VMware operating systems |
| Ports | 8 internal 12Gb/s SAS+SATA ports |
| Data Transfer Rate | 12Gb/s per port |
| Form Factor | Low-profile MD2 form factor |
| Compliances | PCIe 3.0, SFF-8643, RoHS, UL, CE |
| Management Interfaces | Web-based GUI, Command Line Interface (CLI) |
| Power Consumption | Nominal: 13W; Maximum: 19.04W |
| MTBF | >2,000,000 hours |
Specifications
| Device Type | SAS/SATA Host Bus Adapter |
| Host Interface | PCIe 3.0 x8 |
| RAID Levels | Supports RAID 0, 1, 10, and 1E |
| Cache Memory | None |
| Connectors | Two internal mini-SAS HD (SFF-8643) connectors |
| Maximum Devices Supported | Up to 1024 SAS/SATA devices |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature Range | -45°C to 105°C (-49°F to 221°F) |
| Operating Humidity Range | 5% to 90% non-condensing |
| Dimensions (W x D x H) | 167.65 x 68.90 mm (6.6 x 2.7 inches) |
| Weight | 200 g (0.44 lbs) |
