Description

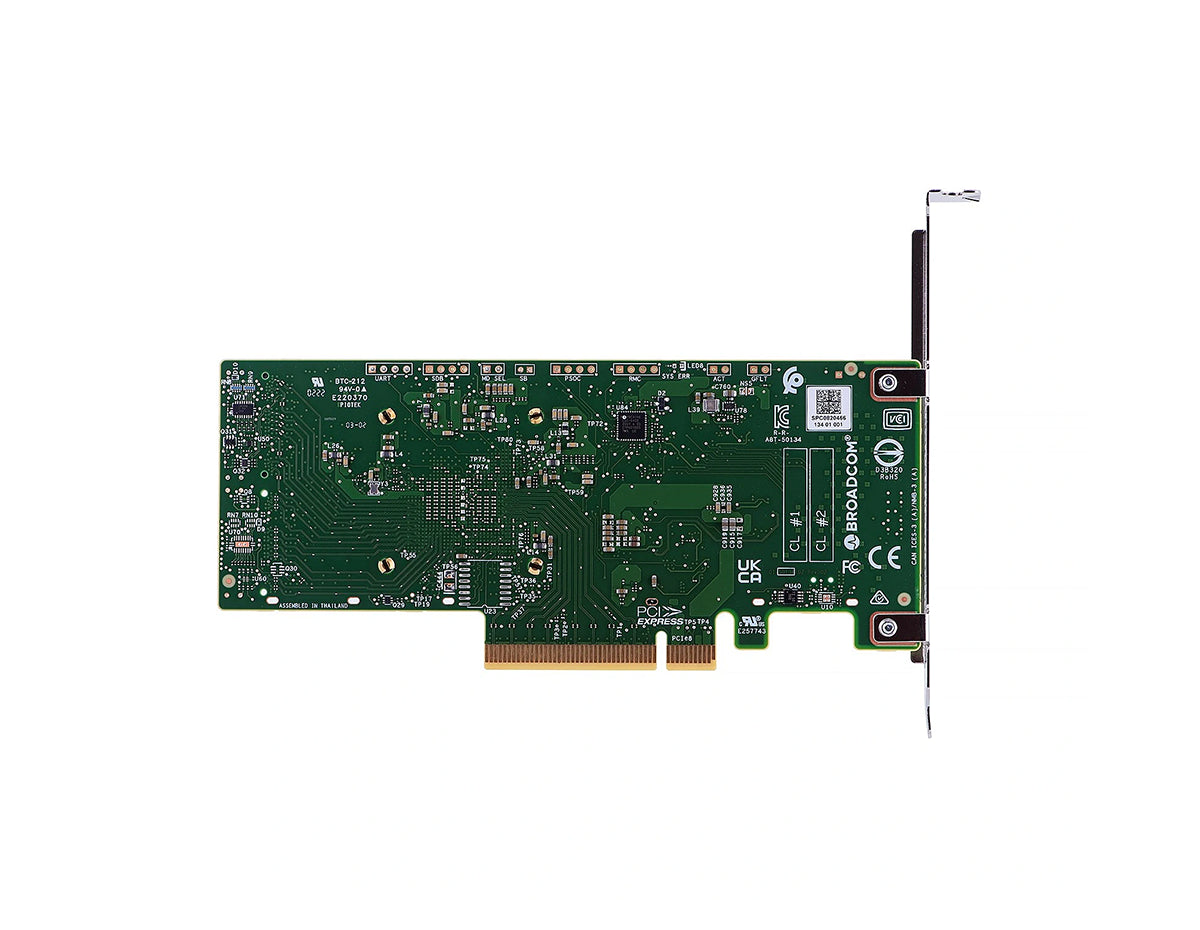

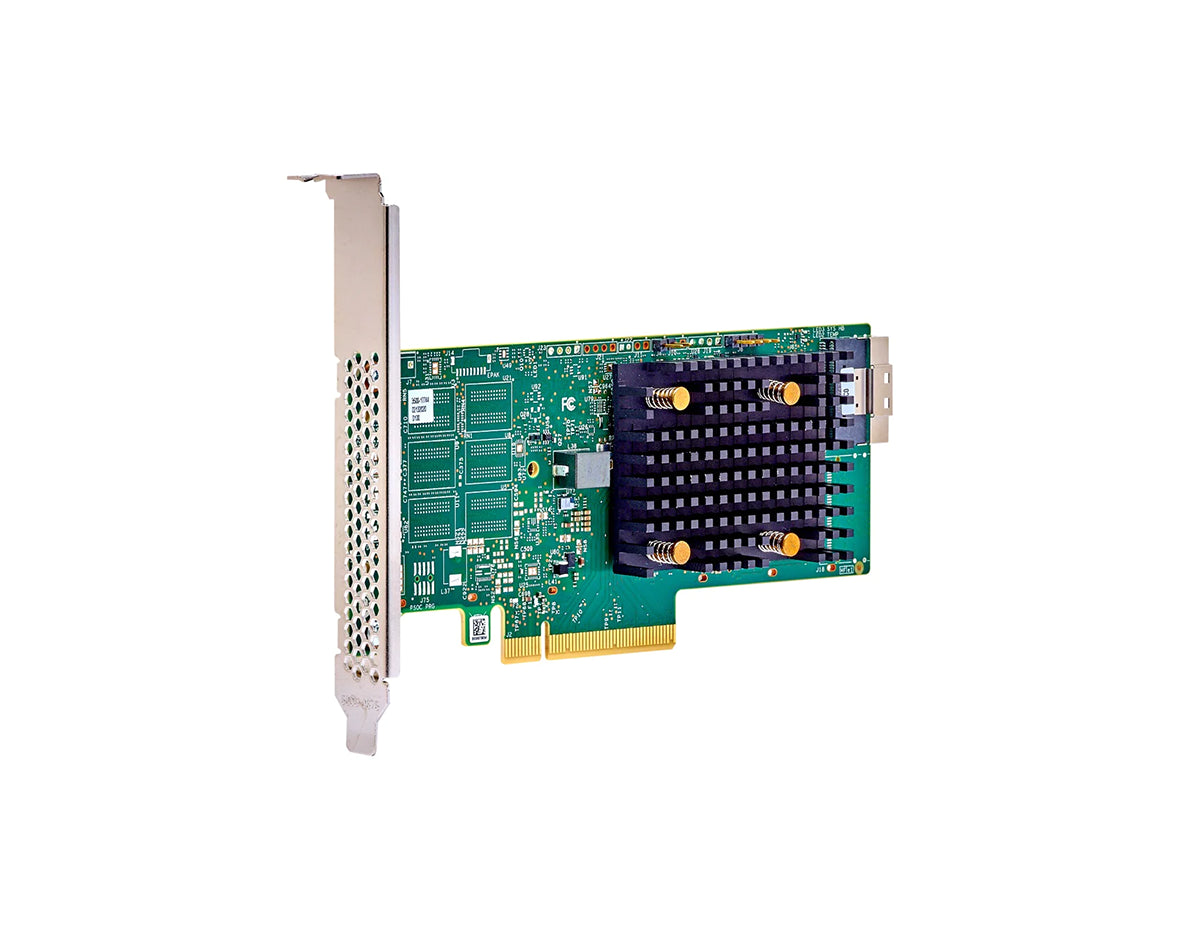

Broadcom 9500-8I Tri-Mode Storage
The 9500-8i Tri-Mode, a PCIe Gen 4.0 HBA featuring eight internal ports, is well-suited for enhancing connectivity and optimizing performance in enterprise data centers. This adapter offers improved bandwidth and IOPS performance in comparison to earlier iterations, thereby providing the necessary performance and scalability for essential applications.
Quick Specs:
- Connects up to 1024 SAS/SATA devices or 32 NVMe devices
- Provides maximum connectivity and performance for high-end servers and applications
- Universal Bay Management (UBM) Ready
- 8 internal ports
Please see the related tabs for the 9500-8i datasheet and compatible accessories.
Properties
| Product Name | Broadcom 9500-8I Tri-Mode Storage Adapter |
| Product Description | PCIe Gen 4.0 HBA with eight internal ports, designed to enhance connectivity and performance in enterprise data centers with Tri-Mode SerDes Technology for NVMe, SAS, and SATA devices. |
| Interface | PCIe Gen 4.0 |
| Port Configuration | 8 internal ports |
| Supported Devices | Connects up to 1024 SAS/SATA devices or 32 NVMe devices |
| Connector Type | 1 x4 SFF-8644 |
| Compatibility | Universal Bay Management (UBM) ready |
| Security Feature | Hardware Secure Boot to protect against unauthorized firmware updates |
| Management Utilities | LSI Storage Authority (LSA), StorCLI, HII |
| Operating Temperature Range | 0°C to 55°C |
| Dimensions | 6.127 in x 2.712 in |
Specifications
| Interface Type | PCIe Gen 4.0 |
| Internal Ports | 8 |
| Connector Type | 1 x4 SFF-8644 |
| Device Compatibility | Supports NVMe, SAS, and SATA devices with Tri-Mode SerDes Technology |
| Maximum Device Support | Up to 1024 SAS/SATA or 32 NVMe devices |
| Power Consumption | Typical 5.96W |
| Operating Voltage | 12V ±8%; 3.3V ±9% |
| Reliability | MTBF > 5,000,000 hours at 40°C |
| Management Software | LSA, StorCLI, HII |
| OS Compatibility | Windows, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Citrix XenServer, CentOS, Debian, Oracle Linux, Fedora, FreeBSD |
| Certifications | FCC 47 CFR part 15 Subpart B, class B |
