Call for Price
Cisco C1300-48P-4G is a high-performance Layer 3 managed switch with 48 Gigabit PoE+ ports and 4 Gigabit SFP uplinks, offering robust network security and scalability for enterprise and SMB environments
Description

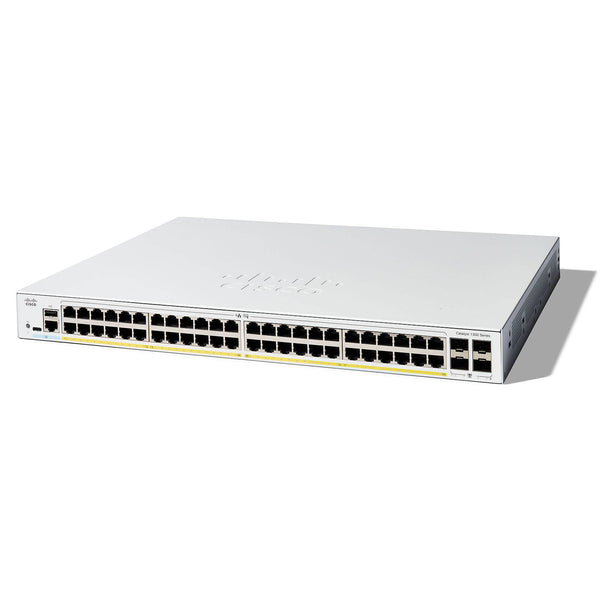

Cisco C1300-48P-4G Managed Network Switch 48xGE PoE+ 4x1G SFP
The Cisco Catalyst C1300-48P-4G is a powerful and scalable Layer 3 managed switch designed for businesses requiring high-speed connectivity, advanced security, and PoE+ support. With 48 Gigabit PoE+ ports, a 370W PoE budget, and 4 dedicated Gigabit SFP uplinks, this switch ensures seamless network integration and expansion. Its compact, rack-mountable design and enterprise-grade features make it an ideal solution for high-performance networking.
Key Features:
- High-Performance Connectivity: Features 48x RJ45 Gigabit Ethernet PoE+ ports and 4x Gigabit SFP uplinks for flexible network expansion.
- PoE+ Support: 370W PoE budget to power IP phones, cameras, and access points directly through Ethernet cables.
- Enterprise-Grade Security: Includes RADIUS authentication, DHCP Snooping, DoS attack prevention, and storm control for enhanced network protection.
- Advanced Layer 3 Routing: Supports IPv4/IPv6 static routing, VLAN segmentation, and DHCP server capabilities.
- Stacking Capabilities: Allows stacking of multiple switches for simplified network management.
- Robust Switching Capacity: Offers 104 Gb/s switching bandwidth and 77.38 Mpps forwarding rate for high-speed data transfers.
- Energy-Efficient Design: Optimized power consumption with a maximum draw of 450.65W and smart cooling system.
- Reliable & Durable: Designed with metal housing, fan cooling, and a 1.67 million hours MTBF for long-term stability.
Technical Specifications:
- Switching Bandwidth: 104 Gb/s
- Forwarding Rate: 77.38 Mpps
- Priority Queues: 8
- Packet Buffer: 1.5 MB
- Flash Memory: 512 MB
- Memory: 1 GB DDR4
- CPU: Dual-Core, up to 1.4 GHz
- PoE per Port: 30W
- Total PoE Budget: 370W
- Maximum Power Consumption: 450.65W
- Idle Power Consumption: 21.03W
- Cooling System: Fan
- Noise Level: 37.3 dB
- Rack Mountable: Yes
- Certifications: UL, CSA, CE, FCC
- Operating Temperature: -5 to 50°C (23 to 122°F)
- Storage Temperature: -25 to 70°C (-13 to 158°F)
- Operating Humidity: 10% to 90% non-condensing
- MTBF: 1.67 million hours
- Dimensions: 445 x 350 x 44 mm (17.5 x 13.8 x 1.7 in)
- Weight: 5.43 kg (11.97 lb)
Properties
| Properties | |
| Model | C1300-48P-4G |
| Description | 48x 10/100/1000 PoE+ ports with 370W PoE budget |
| Product Family | Catalyst 1300 Series |
| Product Type | Managed Gigabit Ethernet Layer 3 Switch |
| Total System Ports | 52 x Gigabit Ethernet |
| RJ-45 Ports | 48 x Gigabit Ethernet |
| Uplink Ports | 4 x Gigabit SFP |
| PoE Support | 802.3af and 802.3at (PoE+) |
| PoE Power Budget | 370W |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Console Ports | RJ-45 + USB Type-C |
| Power Supply | 100-240V, 50-60 Hz, internal, universal |
| Fans | 1 Fan |
| Acoustic Noise | 37.3 dBA @ 25°C |
| Dimensions (W x D x H) | 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
| Unit Weight | 5.43 kg (11.97 lb) |
| Operating Temperature | -5° to 50°C (23° to 122°F) |
| MTBF | 1,662,884 hours |
Specifications
| Specifications | |
| Layer Support | Layer 2 and Layer 3 (static routing, RIP, PBR, DHCP, etc.) |
| Packet Buffer | 1.5 MB |
| MAC Address Table | 16,000 entries |
| Flash Memory | 512 MB |
| DRAM | 1 GB DDR4 |
| CPU | ARM dual-core 1.4 GHz |
| Energy Efficiency | IEEE 802.3az, port LED disable, time-based PoE |
| VLAN Support | Up to 4093 VLANs, including voice and guest VLANs |
| Stacking Support | Not supported for this specific model |
| Management | Web UI, CLI, Cisco Business Dashboard, SNMP v1/2/3, RMON, sFlow |
| Security Features | 802.1X, MAC filtering, DHCP snooping, IPSG, DAI, Port security, Private VLAN |
| QoS Features | 8 queues per port, WRR, Strict Priority, DSCP-based classification |
| Jumbo Frames | Up to 9000 bytes |
| IPv6 Support | Dual-stack IPv4/IPv6, ND inspection, RA guard, MLD snooping |
| Environmental Standards | UL 62368, CSA, CE, FCC Part 15 (Class A) |
| MTU (Default / Max) | 2000 / 9000 bytes |
Accessories
| Accessories | |
| CAB-CONSOLE-RJ45 | Console cable (6 ft, RJ-45) |
| CAB-CONSOLE-USB-C | USB-C console cable |
| PWR-CLP | Power cable restraining clip |
| RCKMNT-1RU-1K= | Rack-mount kit for 1RU (24/48-port models included by default) |
