Call for Price
4-port Gigabit Ethernet LAN/WAN with four 100M/1G/10G switched SFP/SFP+ ports, upported on Cisco Catalyst 8300 Series Edge Platforms, Plug-and-play installation with automatic device recognition
Description

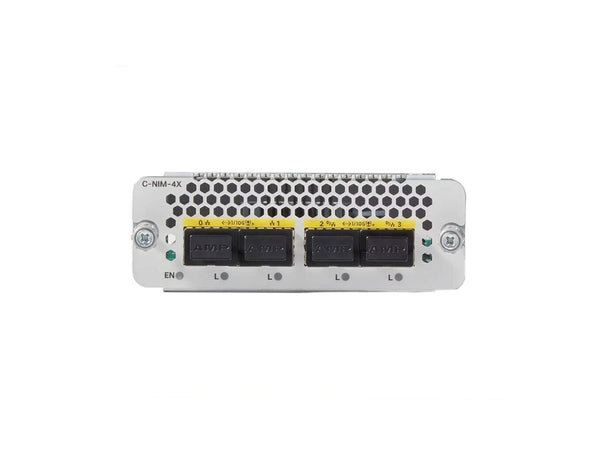

Cisco C-NIM-4X Network Interface Module
The Cisco C-NIM-4X is a next-generation network interface module (NIM) designed for high-performance LAN and WAN connectivity on Cisco Catalyst 8300 Series Edge Platforms. It provides up to four 1G/10G Small Form-Factor Pluggable (SFP/SFP+) ports, making it ideal for scalable and reliable network deployments. With enhanced Layer 2 and Layer 3 capabilities, the C-NIM-4X supports seamless data transmission and offers flexibility for both current and future network needs.
Key Features:
- 4x 1G/10G SFP/SFP+ Ports: Provides high-speed connectivity options, supporting both 1G and 10G Ethernet modules.
- High-Performance Connectivity: Delivers reliable and scalable network connections for LAN and WAN applications.
- Layer 2 and Layer 3 Support: Offers advanced switching and routing capabilities, making it suitable for a wide range of network configurations.
- Compatibility: Supported on Cisco Catalyst 8300 Series Edge Platforms, ensuring seamless integration with existing infrastructure.
- Easy Installation: Plug-and-play installation with automatic device recognition and configuration via Cisco IOS XE software.
Technical Specifications:
- Interface Type: 4x SFP/SFP+ (1G/10G Ethernet)
- Supported Platforms: Cisco Catalyst 8300 Series Edge Platforms
- Power: Powered via the host router, no additional power supply required
- Operating Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
- Dimensions: 168.5 x 18.8 x 208.9 mm (6.63 x 0.74 x 8.23 in)
- Weight: 0.5 kg (1.1 lb)
Properties
| Properties | C-NIM-4X |
| Description | Cisco 4-port 1G/10G SFP/SFP+ LAN/WAN Network Interface Module |
| Product Type | Network Interface Module |
| Connectivity Technology | Wired |
| Ports | 4 x SFP/SFP+ ports (supporting 1 Gbps and 10 Gbps) |
| Supported Platforms | Cisco Catalyst 8200 and 8300 Series Edge Platforms |
| Layer | Supports Layer 2 and Layer 3 Ethernet configurations |
| MACsec Support | Yes, IEEE 802.1AE |
| Hot-swappable | Yes |
| Use Case | High-s |
| High-s |
Specifications
| Specifications | C-NIM-4X |
| Compatibility | Works with NIM slots in Cisco Catalyst 8200 and 8300; not for adapter card in service module slot |
| Form Factor | Plug-in module |
| Data Transfer Rates | Up to 10 Gbps per port |
| Environmental Conditions | Operating Temperature: 0°C to 40°C (32°F to 104°F); Storage Temperature: -40°C to 70°C (-40°F to 158°F) |
| Safety Compliance | UL 60950-1, IEC 60950-1, EN 60950-1 |
| Electromagnetic Compatibility | EN 55032, EN 55024, FCC Part 15 Class A, CISPR 32 Class A |
| EMC Compliance | CE Marking, CISPR 32 Class A, EN 300 386 |
| Environmental Safety | Compliant with RoHS and WEEE directives |
| Physical Dimensions | Width: 7.1 inches (180 mm), Height: 1.5 inches (37 mm), Depth: 5.7 inches (145 mm) |
| Weight | 1.3 pounds (0.6 kg) |
| Additional Features | Supports secure connectivity through MACsec, advanced QoS features, suitable for small to medium enterprise networks |
