Call for Price

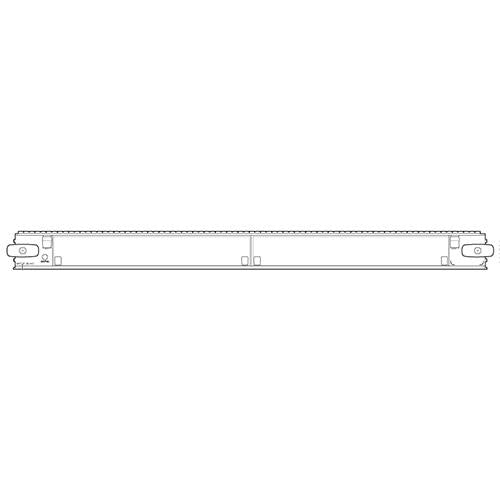

Next-Gen MPC2E, Rich Queue, Full Scale, MX
Description
Modular Port Concentrators (MPCs) with Modular Interface Cards (MICs) provide packet forwarding services and physical interfaces for MX routers. MICs install into MPCs and function similarly to PICs and FPCs. MPCs install vertically in the MX2020, MX2010, MX2008, and MX960 router chassis, and horizontally in the MX480 and MX240 router chassis. On MX5, MX10, MX40, MX80, and MX104 routers, MICs install directly into the router chassis. There are also fixed-configuration MPCs, with built-in network ports and services functionality
Properties
| Product Name | Juniper MPC2E-3D-NG-Q-R-B Line Card (SKU: MPC2E-3D-NG-Q-R-B) |
| Description | The MPC2E-3D-NG-Q-R-B is a next-generation Modular Port Concentrator (MPC) designed for high-performance routing in MX Series routers. It provides full L2, L3, and L3VPN functionality and supports up to 32,000 queues for advanced QoS. |
| Brand | Juniper Networks |
| Type | Line Card |
| Product Category | Networking |
| Form Factor | Half-height slot |
| Compatibility | MX Series routers (MX2020, MX2010, MX2008, MX960, MX480, MX240, MX5, MX10, MX40, MX80, MX104) |
| Operating Humidity | 5% to 90% non-condensing |
| Reliability | MTBF 250,000 hours |
| Compliance | CE, FCC, RoHS |
| Dimensions | 19 x 1.73 x 22 inches |
| Cooling | Front-to-back airflow |
| Line-Rate Throughput | Up to 120 Gbps |
| Maximum Transmission Unit (MTU) | Up to 9,192 bytes (up to 9,500 bytes with Junos OS 16.1R1+) |
| PHY Modes | WAN-PHY mode at 9.95 Gbps, LAN-PHY mode at 10.31 Gbps |
Specifications
| Max Throughput | 120 Gbps |
| Port Density | 40 10GbE ports or 4 100GbE ports |
| Forwarding Capacity | 80 million pps per slot |
| Processing Cores | 4.Oca |
| Memory | 32 GB |
| Packet Buffer Size | 1 GB |
| Maximum Queues per Port | 8 |
| Supported Protocols | IPv4, IPv6, MPLS |
| Supported Features | QoS, L2/L3 VPNs, NAT |
| Power Consumption | 534 Watts |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
