Call for Price
Detail:Tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology
Description

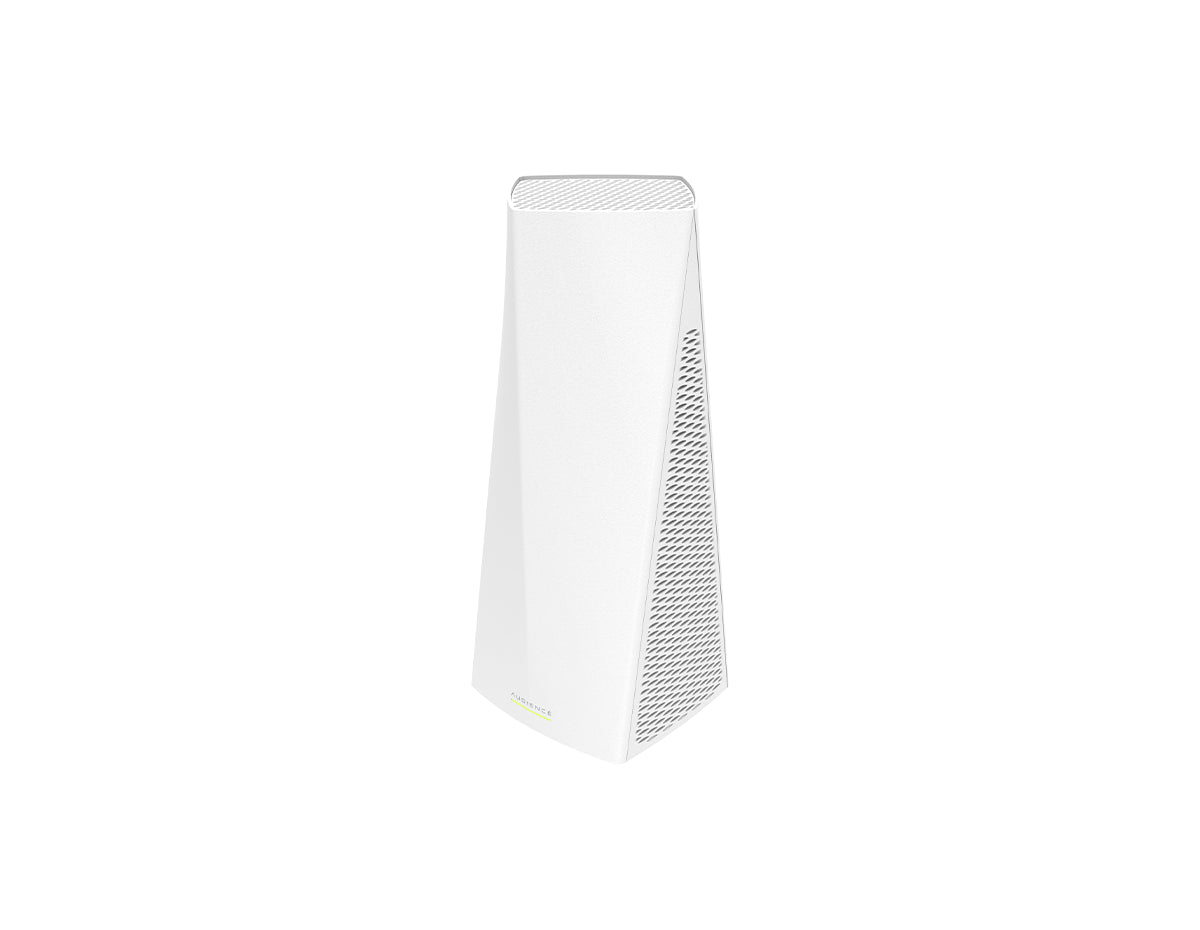

MikroTik RBD25G-5HPacQD2HPnD-US Access Point
The RBD25G-5HPacQD2HPnD-US is a tri-band home access point equipped with meshing technology, featuring one 2.4 GHz and two 5 GHz bands. When requiring Wi-Fi coverage in a large building with various obstacles, additional Audience devices can be seamlessly integrated into the network with a simple button, creating a unified Wi-Fi network to encompass the entire premises. The dual-chain 2.4 GHz and 5 GHz wireless coverage effectively addresses interference challenges in densely populated environments. Household mobile devices can use the 2.4 GHz channel, while the 5 GHz channel can be reserved for PC or TV usage.
Quick Specs:
- 2x 10/100/1000 Ethernet ports
- IPQ-4019, 4 core, 716 MHz CPU
- 256 MB RAM
- PoE in: Passive PoE
Please see the related tabs for the RBD25G-5HPacQD2HPnD-US datasheet and compatible accessories.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | MikroTik Audience RBD25G-5HPACQD2HPND-US |
| Description | Tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology |
| Product Family | Audience Series |
| Product Type | Access Point |
| 10/100/1000 Ethernet ports | 2 |
| Number of USB ports | 1 USB type A |
| Dimensions | 100 x 235 x 97 mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 27 W |
| Max power consumption without attachments | 27 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 24-57 V |
Specifications
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless 5 GHz Max data rate | 1733 Mbit/s |
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4.5 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless specifications | |
| 2.4 GHz | |
| 1MBit/s | Transmit (dBm): 22 Receive Sensitivity: -96 |
| 11MBit/s | Transmit (dBm): 22 Receive Sensitivity: -89 |
| 6MBit/s | Transmit (dBm): 20 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 18 Receive Sensitivity: -74 |
| MCS0 | Transmit (dBm): 20 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 16 Receive Sensitivity: -71 |
| 5 GHz | |
| 6MBit/s | Transmit (dBm): 23 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 20 Receive Sensitivity: -75 |
| MCS0 | Transmit (dBm): 23 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 19 Receive Sensitivity: -71 |
| MCS9 | Transmit (dBm): 16 Receive Sensitivity: -63 |
| 6MBit/s | Transmit (dBm): 32 Receive Sensitivity: -96 |
| 54MBit/s | Transmit (dBm): 28 Receive Sensitivity: -80 |
| MCS0 | Transmit (dBm): 32 Receive Sensitivity: -96 |
| MCS7 | Transmit (dBm): 27 Receive Sensitivity: -77 |
| MCS9 | Transmit (dBm): 22 Receive Sensitivity: -70 |
| MTBF | Approximately 100.000 hours at 25C |
| Temperature | -40°C to 60°C tested |
| IPsec hardware acceleration | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Accessories
|
24 V 1.5 A power adapter (white)
|
| Ethernet cable |
