Description

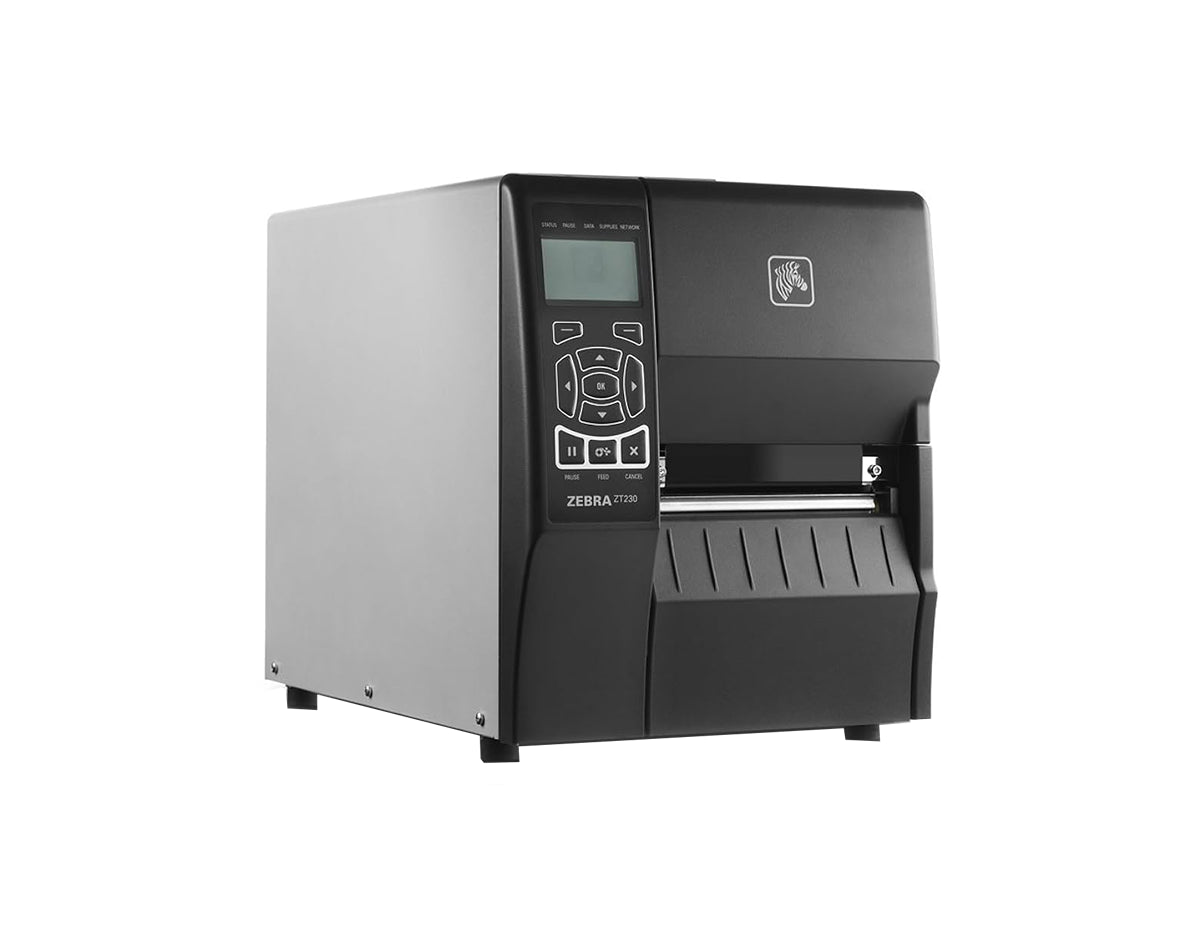

Zebra ZT23042-T01000FZ Thermal Barcode Label Printer (ZT230)

The Zebra ZT230 is a rugged industrial barcode label printer designed for businesses requiring high-quality and high-volume label printing. With a 203 dpi print resolution and a maximum print speed of 6 inches per second, it delivers fast and reliable label production. Its compact footprint, clear bi-fold media side door, and LCD display make it user-friendly, while advanced features such as Element Energy Equalizer and transmissive and reflective media sensors ensure precise and efficient printing. The ZT230 supports various barcode symbologies and integrates easily via Serial and USB connectivity, making it an excellent choice for industrial and warehouse environments.

Ribbon Requirement: Ribbon Required (for Thermal Transfer printing)

Key Features:

• Thermal Transfer Printing: Ensures long-lasting, high-quality labels.
• Fast Print Speed: Prints at speeds up to 6 inches per second.
• Wide Print Width: Supports labels up to 4.09 inches in width.
• Durable Industrial Design: Built to withstand tough work environments.
• Easy Media Handling: Features a clear bi-fold media side door for quick label and ribbon loading.
• Connectivity Options: Equipped with Serial (RS-232) and USB interfaces for seamless integration.
• Advanced Sensors: Includes transmissive and reflective media sensors for precise label detection.

Technical Specifications:

• Print Technology: Thermal Transfer
• Print Resolution: 203 dpi
• Maximum Print Speed: 6 in/sec
• Maximum Print Width: 4.09 inches
• Memory: 128MB DRAM, 128MB Flash
• Interface Options: Serial (RS-232), USB
• Display: LCD screen with intuitive navigation
• Barcode Symbologies Supported: Code 11, Code 39, Code 93, Code 128 (A, B, C), UPC-A, UPC-E, EAN-13, QR Code, PDF-417, Data Matrix, Maxi Code, and more
• Supported Media Types: Continuous Label, Die-cut Label, Notch, Black Mark
• Maximum Roll Diameter: 8 inches
• Maximum Label Width: 4.50 inches
• Maximum Label Length: 39 inches
• Media Sensor: Transmissive and Reflective
• Ribbon Core Size: 1 inch
• Power Supply: AC input (110V/220V)
• Dimensions (H x W x D): 10.9 x 9.5 x 17 inches
• Weight: 20 lb
